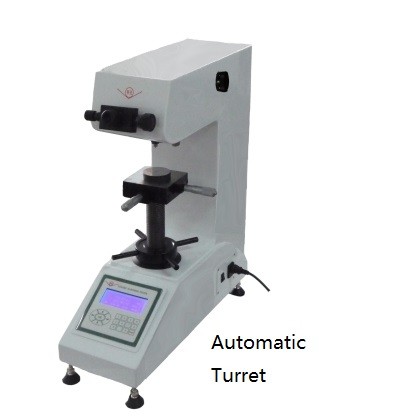

Micro Hardness Testing Equipment with Automatic Turret, Measuring Range 5 HV – 3999 HV
Micro Hardness Testing Equipment with Automatic Turret, Measuring Range 5 HV – 3999 HV
Specifications
Brand Name :
UNIMETRO
Model Number :
HV-5Z
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 per month
Delivery Time :
8 work days
Packaging Details :
Wood case
Price :
Discussible
Measuring materials :
Black metal, nonferrous metal IC thin pieces, surface coating, laminated metal
Holding time :
0 - 60 S
X, Y stage dimension :
100×100 mm
X,Y stage travel :
25×25 mm
Max. Height of the specimen :
200 mm
Max. Width of the specimen :
130 mm
Description
Micro Hardness Testing Equipment with Automatic Turret, Measuring Range 5 HV – 3999 HV
Product Overview

Automatic Turret Vickers Micro Hardness Tester with 5 KG capacity and measuring range from 5 HV to 3999 HV, designed for precision hardness testing across various materials and applications.

Key Features
  • Automatic turret system for efficient operation
  • Precise locating structure replaces traditional spring sheets, providing superior accuracy and reliability
  • High-performance optocoupler control during loading and unloading processes
  • Latest C++ programming for enhanced hardware reliability and stability
  • Unique and precise mechanical, electrical, and optical design
  • 7 testing force levels to meet diverse measurement requirements
  • LCD display with manual selection and scales switching for easy operation
  • 10X and 40X objective lenses for observation and measurement
Technical Specifications
Testing Force (1.96, 2.94, 4.90, 9.80, 19.6, 29.4, 49.0) N
(0.2, 0.3, 0.5, 1.0, 2.0, 3.0, 5.0) Kgf
Carriage Control Full-automatic (loading / holding-up of loading / unloading)
Microscope Magnification 100X, 400X
Holding Time 0-60 seconds
Min. Graduation Value 0.5μm
Testing Range 5HV - 3999HV
X, Y Stage Dimension 100 × 100 mm
X, Y Stage Travel 25 × 25 mm
Max. Specimen Height 200 mm
Max. Specimen Width 130 mm
Power Supply 110V/220V, 60/50Hz
Dimensions 550 × 210 × 580 mm
Weight 35 kg
Standard Accessories
  • Vickers indenter
  • 10X eyepiece
  • Gradienter
  • Cross testing stage
  • Level adjusting screw
  • Vickers hardness block
  • RS232 communication cable
Optional Accessories
  • Knoop indenter
  • Knoop hardness test standard block
  • SP-2008 vision measuring device
  • CCD indentation automatic measuring device
  • Working stage
  • V type working stage
  • Special specimen clamping stage
Applications
Black metal
Nonferrous metal
IC thin pieces
Surface coating
Laminated metal
Glass
Ceramics
Agate
Jewels
Thin plastic
Hardness test for depth and gradient of charring layer
Hardness test for hardening layer
