Low-Load Vickers Hardness Tester with Automatic Turret for Agate Testing
Low-Load Vickers Hardness Tester with Automatic Turret for Agate Testing
Specifications
Brand Name :
UNIMETRO
Model Number :
HV-10Z
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 per month
Delivery Time :
8 work days
Packaging Details :
Wood case
Price :
Discussible
Testing force :
2.94, 4.90, 9.80, 19.6, 29.4, 49.0, 98.0 N
Carriage control :
Full-automatic (loading / holding-up of loading / unloading)
Magnification of the measuring microscope :
100X, 400X
Power supply :
110V/220V, 60/50Hz
Life cycle of the halogen lamp :
30000 hrs
Description

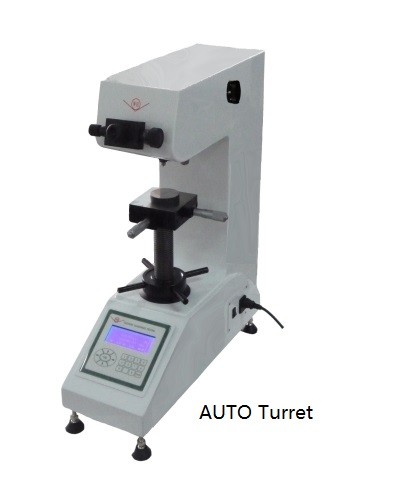

Low-Load Vickers Hardness Tester with Automatic Turret for Agate Testing
Auto Turret 10 KG Low Loading Vickers Micro Hardness Tester for Agate and Thin Plastic Applications
Technical Specifications
Testing force (2.94, 4.90, 9.80, 19.6, 29.4, 49.0, 98.0) N
(0.3, 0.5, 1, 2, 3, 5, 10) Kgf
Carriage control Full-automatic (loading / holding-up of loading / unloading)
Magnification of measuring microscope 100X, 400X
Holding time (0～60) S
Min. graduation value of test drum wheel 0.5μm
Testing range 5HV～3999HV
X, Y stage dimension 100×100 mm
X, Y stage travel 25×25 mm
Max. Height of specimen 200 mm
Max. Width of specimen 130 mm
Power supply 110V/220V, 60/50Hz
Dimension 550×210×580 mm
Weight 35 Kg
Key Features
  • Includes automatic turret for enhanced functionality
  • Latest C++ programming increases hardware reliability and stability
  • LCD display with manual selecting and scales switching for easy operation
  • 7 testing force levels to meet various measuring demands
  • Precise locating structure replaces traditional spring sheet for better accuracy and reliability
  • Unique embedded halogen lamp illumination with 30,000+ hours working life
  • 10X and 40X objective lenses for observing and measuring with larger range
Testing Applications
  • Hardness testing for depth and gradient of charring layer and hardening layer
  • Glass, ceramics, agate, and jewels
  • Thin plastic materials
  • Black metal and nonferrous metals
  • IC thin pieces and surface coatings
  • Laminated metal components
Standard Accessories
  • Vickers indenter
  • 10X eyepiece
  • Gradienter
  • Cross testing stage
  • Level adjusting screw
  • Vickers hardness block
  • RS232 communication cable
Optional Accessories
  • Knoop indenter
  • Knoop hardness test standard block
  • SP-2008 vision measuring device
  • CCD indentation automatic measuring device
  • Working stage
  • V type working stage
  • Special specimen clamping stage
