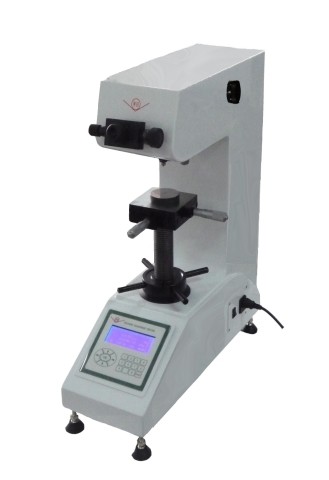

10 KG Vickers Micro Hardness Tester with Optocoupler Control for Glass and Jewels
10 KG Vickers Micro Hardness Tester with Optocoupler Control for Glass and Jewels
Specifications
Brand Name :
UNIMETRO
Model Number :
HV-10
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 per month
Delivery Time :
8 work days
Packaging Details :
Wood case
Price :
Discussible
Description
10 KG Vickers Micro Hardness Tester with Optocoupler Control for Glass and Jewels
Product Overview

The HV-10 series Vickers micro hardness tester features unique and precise mechanical, electrical, and optical design, specifically engineered for industrial and institutional hardness testing of various materials.

Ideal Applications Include:
  • Black metals, nonferrous metals, IC thin pieces, surface coatings, laminated metals
  • Glass, ceramics, agate, jewels, thin plastics
  • Hardness testing for depth and gradient of charring layers and hardening layers
Key Features & Technology
  • Integrated LCD display with manual selection and scales switching for easy operation
  • 10X and 40X objective lenses for observation and measurement, ensuring larger measuring range and wider application
  • Precise locating structure replaces traditional spring sheets, offering superior locating accuracy and reliability
  • High-performance optocoupler control during loading and unloading processes (unique feature in this category)
  • Embedded halogen lamp illumination with high-quality halogen lamps providing over 30,000 hours working life
Technical Specifications
Parameter Specification
Testing Force (2.94, 4.90, 9.80, 19.6, 29.4, 49.0, 98.0) N
(0.3, 0.5, 1, 2, 3, 5, 10) Kgf
Carriage Control Full-automatic (loading / holding-up of loading / unloading)
Microscope Magnification 100X, 400X
Holding Time 0-60 seconds
Min. Graduation Value 0.5μm
Testing Range 5HV - 3999HV
X, Y Stage Dimension 100 × 100 mm
X, Y Stage Travel 25 × 25 mm
Max. Specimen Height 200 mm
Max. Specimen Width 130 mm
Power Supply 110V/220V, 60/50Hz
Dimensions 550 × 210 × 580 mm
Weight 35 Kg
Standard Accessories
  • Vickers indenter
  • 10X eyepiece
  • Gradienter
  • Cross testing stage
  • Level adjusting screw
  • Vickers hardness block
  • RS232 communication cable
Optional Accessories
  • Knoop indenter
  • Knoop hardness test standard block
  • SP-2008 vision measuring device
  • CCD indentation automatic measuring device
  • Working stage
  • V type working stage
  • Special specimen clamping stage
