Specifications
Brand Name :
BaseTi
Model Number :
THJB002
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
NO MOQ LIMITATION.
Price :
CONTACT US
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000 tons/month
Delivery Time :
12~20 days
Packaging Details :
External: wooden box packaging; Inside: an inner packing with protective foam;
Mechanical Properties :
Tensile strength 240 MPa, Yield strength 170-310 MPa
Elongation :
24-30%
Density :
4.51 g/cm³
Grade :
Grade 1
Production standards :
ASTM B265, ASME SB265
Tolerance :
±0.1mm for thickness, ±0.5mm for width and length
Rolling process :
Hot rolling for thickness >4mm, Cold rolling for thickness ≤4mm
Surface process :
Pickling, Polishing
Description

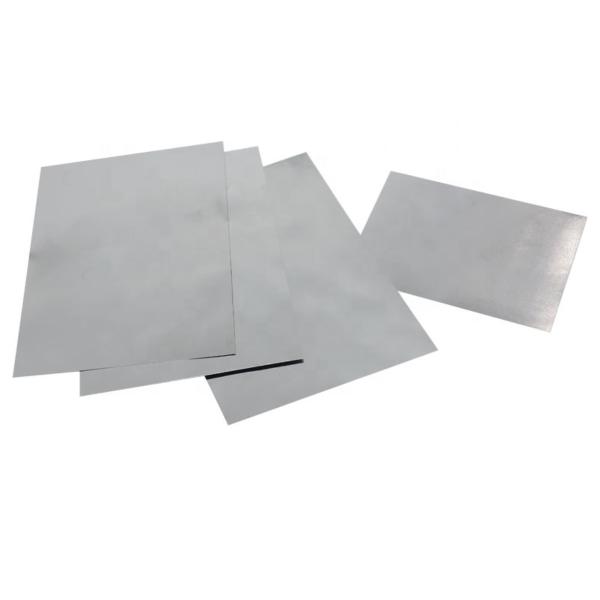

Pure Ti Grade 1 Titanium Alloy Sheet Plate ASTM B265, ASME SB265 Titanium Manufacturers Factory Suppliers

Grade 1 Titanium Sheet Plate - Overview

*If you have any requirements for customized titanium alloy sheet, we would be delighted to further discuss the technical specifications with you and provide a quotation.

*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.

Titanium alloy sheet specifications & parameters
Product name Titanium alloy sheet
Application field Aerospace, Medical Implants, Chemical Processing, Marine
Available size 0.5mm - 50mm thickness, 1000mm x 2000mm, 1250mm x 2500mm
Grade Grade 1
Production stadards ASTM B265, ASME SB265
Tolerance ±0.1mm for thickness, ±0.5mm for width and length
Rolling process Hot rolling for thickness >4mm, Cold rolling for thickness ≤4mm
Surface process Pickling, Polishing
Delivery time 15-18days
Key words

Titanium Sheet, U.S. Grade, European Grade, ASTM B265, ASTM F67, MIL-T-9046, Chemical Composition, Aerospace, Medical, Marine, Chemical, Grade 1 Titanium Sheet, BaseTi

Grade 1 Titanium Sheet Plate & Solutions

Grade 1 Titanium sheets have been a game-changer across various sectors, from aerospace applications to medical implants. In this comprehensive review, we'll delve into how these sheets are custom-tailored to meet complex industry challenges. As a renowned titanium factory and manufacturer, BaseTi stands as an industry leader in delivering these innovative solutions.

  • Aerospace

In the aerospace sector, where weight and strength are paramount, Grade 1 Titanium sheets excel. These sheets offer remarkable tensile strength while being about 45% lighter than steel. Data suggests that incorporating this material could lead to fuel savings of up to 40% throughout an aircraft's lifecycle.

  • Medical Implants

For medical implant applications, Grade 1 Titanium sheets bring the advantage of biocompatibility and resistance to bodily fluids. Implants made from this material have demonstrated a 98% success rate in terms of both biocompatibility and long-term durability.

  • Chemical Processing

In the realm of chemical processing, Grade 1 Titanium sheets provide unparalleled corrosion resistance, especially against chlorides. Using these sheets in components like heat exchangers and reactors has been shown to extend their lifespan by at least 25% compared to alternative materials.

  • Marine Applications

Known for their exceptional resistance to seawater corrosion, these sheets are extensively used in maritime settings. Their utilization has led to a 20% increase in the lifespan of marine equipment, thereby decreasing overall operational costs.

Conclusion

BaseTi continues to be a leading figure in the titanium industry, supplying top-quality Grade 1 Titanium sheets. With stringent production standards and meticulous quality control, we assure that our customers receive the most effective and reliable solutions tailored to their specific needs.

Pure Ti Grade 1 Titanium Alloy Sheet Plate ASTM B265 ASME SB265 2mm Titanium Sheet

Common Grades of Grade 1 Titanium Sheet

U.S. Grade

European Grade

Standards

Chemical Composition

Application Area

Specific Products

Grade 1

Ti Grade 1

ASTM B265

Ti: 99.5% min

Aerospace

Aircraft Frames

Grade 1

Ti Grade 1

ASTM F67

Ti: 99.5% min

Medical

Surgical Implants

Grade 1

Ti Grade 1

MIL-T-9046

Ti: 99.5% min

Marine

Ship Hulls

Grade 1

Ti Grade 1

ASTM B265

Ti: 99.5% min

Chemical

Reactors

Physical Properties of Grade 1 Titanium Sheet

Property

Value

Unit

Standard

Tensile Strength

240-370 MPa

MPa

ASTM B265

Yield Strength

170-310 MPa

MPa

ASTM B265

Elongation

24-30%

%

ASTM B265

Modulus of Elasticity

103-107 GPa

GPa

ASTM B265

Hardness (Brinell)

120-140

BHN

ASTM E10

Thermal Conductivity

21.9 W/m·K

W/m·K

ASTM E1461

Electrical Resistivity

0.42 µΩ·m

µΩ·m

ASTM B193
