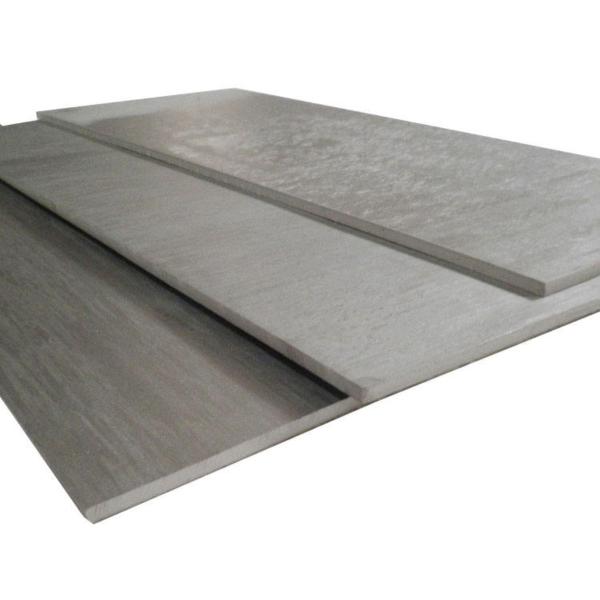

ASTM B265ISO 9001 Titanium Sheet Metal Ti6Al4V Grade 2 Grade 5 Building Materials
ASTM B265ISO 9001 Titanium Sheet Metal Ti6Al4V Grade 2 Grade 5 Building Materials
ASTM B265ISO 9001 Titanium Sheet Metal Ti6Al4V Grade 2 Grade 5 Building Materials
ASTM B265ISO 9001 Titanium Sheet Metal Ti6Al4V Grade 2 Grade 5 Building Materials
Specifications
Brand Name :
BaseTi
Model Number :
THJB006
Certification :
Material Test Report Available
Place of Origin :
China
MOQ :
1
Price :
CONTACT US
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000 tons/month
Delivery Time :
15 DAYS
Packaging Details :
External: wooden box packaging; Inside: an inner packing with protective foam;
Grade :
Ti6Al4V, Grade 2, Grade 5
Production standards :
ASTM B265, ISO 9001
Tolerance :
Thickness +/-0.05 mm, Width +/-0.5 mm, Length +/-1 mm
Rolling process :
Hot rolling, cold rolling
Surface process :
Polished, anodized, sandblasted
Size :
Thickness 0.5-60mm, Width 200-3000mm, Length 500-12000mm
Packaging :
Standard Export Packaging or Custom Packaging
Description

ASTM B265, ISO 9001 Titanium Alloy Sheet Plate Building Materials Ti6Al4V, Grade 2, Grade 5

Titanium Alloy Sheet - Overview

*If you have any requirements for customized titanium alloy sheet, we would be delighted to further discuss the technical specifications with you and provide a quotation.

*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.

Titanium alloy sheet specifications & parameters

Product name

Titanium alloy sheet

Application field

Building and construction, architectural cladding, roofing, structural supports

Available size

Thickness 0.5-20 mm, Width up to 1500 mm, Length up to 6000 mm

Grade

Ti6Al4V, Grade 2, Grade 5

Production stadards

ASTM B265, ISO 9001

Tolerance

Thickness +/-0.05 mm, Width +/-0.5 mm, Length +/-1 mm

Rolling process

Hot-rolled, Cold-rolled

Surface process

Sandblasted, pickled, or polished

Delivery time

12-15days

Key words

Titanium Alloy Sheet, Building Material, Titanium Factory, Titanium Manufacturer, Sustainable Construction, BaseTi, ASTM B265, ISO 9001

Titanium Alloy Sheet - Applications

Revolutionizing Building Materials: The Impact of Titanium Alloy Sheets

In the evolving landscape of building materials, Titanium Alloy Sheets are carving out a niche as transformative products. Combining unparalleled strength, corrosion resistance, and sustainability, these sheets are emerging as the eco-friendly successors to conventional materials such as steel, aluminum, and concrete.

Statistical Perspective Anticipated to touch the $10.5 trillion mark by 2023, the worldwide construction industry is increasingly leaning towards sustainable alternatives. The U.S. construction sector alone deploys over 40 million tons of metal yearly. In this context, Titanium Alloy Sheets from trusted titanium factories and manufacturers like BaseTi are setting the stage for a greener future.

Why Opt for BaseTi's Titanium Alloy Sheets in Building Materials? Renowned as a cutting-edge titanium factory, BaseTi adheres to rigorous quality standards and employs advanced technology. Our building material-specific Titanium Alloy Sheets conform to both ASTM B265 and ISO 9001 certifications, guaranteeing top-grade quality.

Essential Attributes

  • Exceptional Tensile Strength: Exhibits strength levels exceeding stainless steel by over 40%.

  • Unbeatable Corrosion Resistance: Outperforms most materials in withstanding severe weather conditions for extended periods.

  • Featherlight: About 60% lighter than steel, thus minimizing structural load.

Application Spectrum in Building Materials

  • Architectural Facades: Infuses modern design elements while assuring long-term resilience.

  • Roof Solutions: Resilient against extreme weather conditions, including hailstorms and gale-force winds.

  • Structural Reinforcements: Perfectly suited for constructions requiring earthquake resistance.

The Sustainability Quotient Employing Titanium Alloy Sheets can result in a CO2 emissions reduction of approximately 30%, compared to traditional steel-based infrastructure.

Final Thoughts For stakeholders in the construction and building material sectors, Titanium Alloy Sheets from BaseTi aren't merely an option; they represent the future. With a track record as a dependable titanium manufacturer supported by years of expertise and a roster of satisfied clients, BaseTi is the go-to source for your building material needs.

ASTM B265ISO 9001 Titanium Sheet Metal Ti6Al4V Grade 2 Grade 5 Building Materials

Common Specifications for Titanium Alloy Sheet
U.S. Grade European Grade Standard Chemical Composition
Application Area
 Specific Product
Ti 6Al-4V Ti64 ASTM B265 90% Ti, 6% Al, 4% V Aerospace, Medical Devices Aircraft components, Implants
Grade 2 Ti40A ASTM B265 >99% Ti, O 0.25% Marine, Chemical Processing Hulls, Heat Exchangers
Grade 5 Ti-6Al-4V ASTM F136 90% Ti, 6% Al, 4% V Aerospace, Automotive Jet engines, Car exhaust systems
Grade 12 Ti-0.3Mo-0.8Ni ASTM B265 >99% Ti, 0.3% Mo, 0.8% Ni Chemical, Marine Tanks, Valves
Ti 5Al-2.5Sn NA ASTM B265 90% Ti, 5% Al, 2.5% Sn Aerospace, Energy Airframe structures, Reactors

Chemical Composition for Titanium Alloy Sheet
U.S. Grade European Grade
Chemical Composition (wt%)
Ti 6Al-4V Ti64 Ti90, Al6, V~4, Fe<0.25, O<0.2, N<0.05, C<0.08, H<0.015
Grade 2 Ti40A Ti~99.2, Fe<0.3, O<0.25, N<0.03, C<0.08, H<0.015
Grade 5 Ti-6Al-4V Ti90, Al6, V~4, Fe<0.4, O<0.2, N<0.05, C<0.1, H<0.015
Grade 12 Ti-0.3Mo-0.8Ni Ti98.9, Mo0.3, Ni~0.8, Fe<0.3, O<0.25, N<0.03, C<0.08, H<0.015
Ti 5Al-2.5Sn NA Ti92.5, Al5, Sn~2.5, Fe<0.25, O<0.2, N<0.05, C<0.1, H<0.015

Physical Properties for Titanium Alloy Sheet
U.S. Grade
European Grade
 Density (g/cm³) Melting Point (°C) Thermal Conductivity (W/m·K) Specific Heat Capacity (J/g·K)
Ti 6Al-4V Ti64 4.43 1,660 6.7 0.52
Grade 2 Ti40A 4.51 1,675 21.9 0.56
Grade 5 Ti-6Al-4V 4.43 1,650 7.2 0.54
Grade 12 Ti-0.3Mo-0.8Ni 4.48 1,630 17.5 0.58
Ti 5Al-2.5Sn N/A 4.50 1,645 15.0 0.57

Most of our collaborations are with mechanical workshops and manufacturers, and this gives us practical insights into what exactly you need. Our experience translates into a smoother, more efficient working relationship with you.

Experience the next level of dental innovation with BaseTi's titanium disk & disc solutions.

Contact us to discover how we're transforming the landscape of dental excellence.
