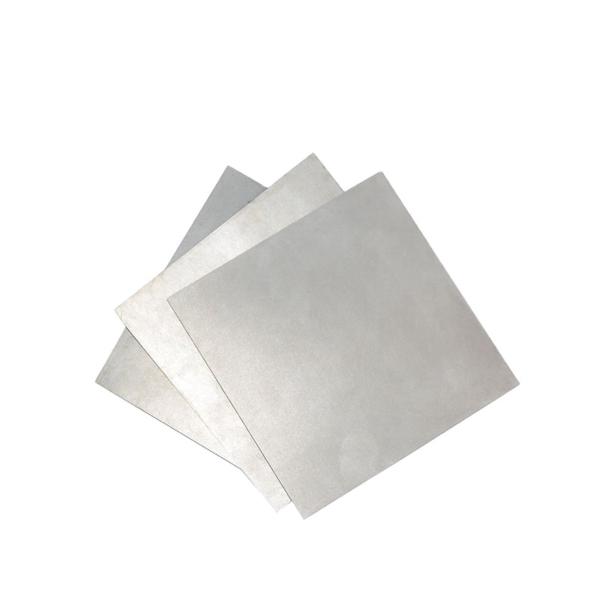

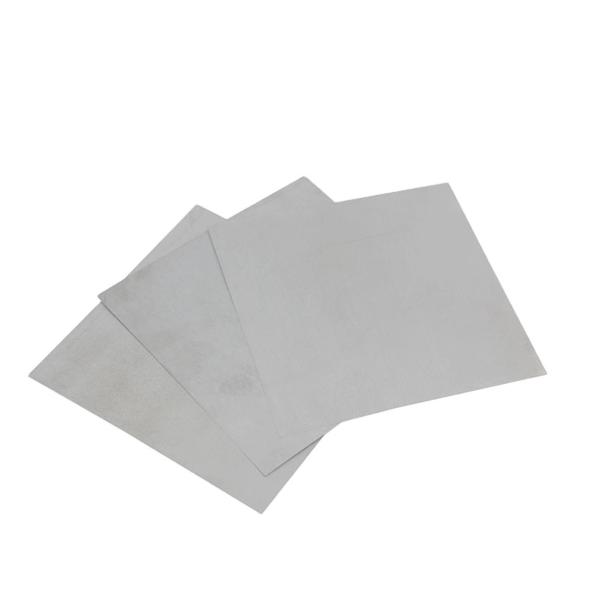

5mm - 200mm GR1 GR2 GR5 G12 Titanium Clad Plate ASTM F136 Rectangular Polished Sandblasted For Aerospace
5mm - 200mm GR1 GR2 GR5 G12 Titanium Clad Plate ASTM F136 Rectangular Polished Sandblasted For Aerospace
5mm - 200mm GR1 GR2 GR5 G12 Titanium Clad Plate ASTM F136 Rectangular Polished Sandblasted For Aerospace
5mm - 200mm GR1 GR2 GR5 G12 Titanium Clad Plate ASTM F136 Rectangular Polished Sandblasted For Aerospace
5mm - 200mm GR1 GR2 GR5 G12 Titanium Clad Plate ASTM F136 Rectangular Polished Sandblasted For Aerospace
5mm - 200mm GR1 GR2 GR5 G12 Titanium Clad Plate ASTM F136 Rectangular Polished Sandblasted For Aerospace
Specifications
Brand Name :
BaseTi
Model Number :
THJB001
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
1
Price :
CONTACT US
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000 tons/month
Delivery Time :
15 DAYS
Packaging Details :
External: wooden box packaging; Inside: an inner packing with protective foam;
Grade :
Ti-6Al-4V, Ti-6Al-7Nb, Ti-3Al-2.5V, Grade 2, Grade 5
Production standards :
ASTM F136, ASTM F67, ISO 5832
Tolerance :
+/-0.1mm, Width +/-1mm, Length +/-2mm
Rolling process :
Hot rolling, cold rolling
Surface process :
Polished, anodized, sandblasted
Size :
Thickness 0.5-60mm, Width 200-3000mm, Length 500-12000mm
Description

5mm-200mm GR1 GR2 GR5 G12 ASTM B265 ASTM F136 Rectangular Polished Sandblasted Titanium Alloy Sheet for Aerospace

Titanium Alloy Sheet - Overview

*If you have any requirements for customized titanium alloy sheet, we would be delighted to further discuss the technical specifications with you and provide a quotation.

*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.

Titanium alloy sheet specifications & parameters
Product name Titanium alloy sheet
Application field Aerospace, medical implants, automotive, marine applications
Available size 0.5-60mm, Width 200-3000mm, Length 500-12000mm or Customizable.
Grade Ti-6Al-4V, Ti-6Al-7Nb, Ti-3Al-2.5V, Grade 2, Grade 5
Production stadards ASTM B265, ASTM F136, ISO 5832
Tolerance Thickness +/-0.1mm, Width +/-1mm, Length +/-2mm
Rolling process Hot rolling, cold rolling
Surface process Polished, anodized, sandblasted
Delivery time 12-15days
Key words

Titanium Alloy sheet

Titanium Alloy plate

Titanium Alloy metal sheet

Titanium Alloy thin plate

Titanium Alloy foil

TITANIUM ALLOY SHEET APPLICATIONS & SOLUTIONS

Aerospace and Defense Industry
In the aerospace and defense sector, Titanium alloy sheets are prized for their excellent strength-to-weight ratio and corrosion resistance. These sheets provide solutions for aircraft structure components, jet engines, and even in missile technologies. BaseTi offers sheets that comply with the most stringent industry standards, ensuring reliability and performance.

Medical Devices
Titanium alloy sheets are ideal for medical applications due to their biocompatibility and strength. They are commonly used in surgical implants and prosthetic devices. BaseTi provides sheets that meet or exceed ASTM F136 standards, making them suitable for critical medical applications.

Automotive Industry
In the automotive sector, Titanium alloy sheets are often used for their lightweight and corrosion-resistant properties. They are crucial for parts like exhaust systems and other high-stress components. BaseTi offers an array of sheets suitable for automotive needs.

Marine Industry
Known for their corrosion resistance, especially to saltwater, Titanium alloy sheets are used in the marine industry for various applications including shipbuilding and offshore drilling platforms.

Energy Sector
In the energy sector, these sheets are ideal for applications like heat exchangers in nuclear reactors due to their high temperature resistance and anti-corrosive properties.

Consumer Goods
For consumer goods like electronics, sports equipment, and even in some architectural applications, Titanium alloy sheets offer durability and aesthetic appeal.

Keywords: Sheet, Plate, BaseTi

5mm - 200mm GR1 GR2 GR5 G12 Titanium Clad Plate ASTM F136 Rectangular Polished Sandblasted For Aerospace

Common Specifications for Titanium Alloy Sheet
U.S. Grade European Grade Standard Chemical Composition
Application Area
 Specific Product
Ti 6Al-4V Ti64 ASTM B265 90% Ti, 6% Al, 4% V Aerospace, Medical Devices Aircraft components, Implants
Grade 2 Ti40A ASTM B265 >99% Ti, O 0.25% Marine, Chemical Processing Hulls, Heat Exchangers
Grade 5 Ti-6Al-4V ASTM F136 90% Ti, 6% Al, 4% V Aerospace, Automotive Jet engines, Car exhaust systems
Grade 12 Ti-0.3Mo-0.8Ni ASTM B265 >99% Ti, 0.3% Mo, 0.8% Ni Chemical, Marine Tanks, Valves
Ti 5Al-2.5Sn NA ASTM B265 90% Ti, 5% Al, 2.5% Sn Aerospace, Energy Airframe structures, Reactors

Chemical Composition for Titanium Alloy Sheet
U.S. Grade European Grade
Chemical Composition (wt%)
Ti 6Al-4V Ti64 Ti90, Al6, V~4, Fe<0.25, O<0.2, N<0.05, C<0.08, H<0.015
Grade 2 Ti40A Ti~99.2, Fe<0.3, O<0.25, N<0.03, C<0.08, H<0.015
Grade 5 Ti-6Al-4V Ti90, Al6, V~4, Fe<0.4, O<0.2, N<0.05, C<0.1, H<0.015
Grade 12 Ti-0.3Mo-0.8Ni Ti98.9, Mo0.3, Ni~0.8, Fe<0.3, O<0.25, N<0.03, C<0.08, H<0.015
Ti 5Al-2.5Sn NA Ti92.5, Al5, Sn~2.5, Fe<0.25, O<0.2, N<0.05, C<0.1, H<0.015

TITANIUM ALLOY SHEET PHYSICAL PROPERTIES
U.S. Grade
European Grade
 Density (g/cm³) Melting Point (°C) Thermal Conductivity (W/m·K) Specific Heat Capacity (J/g·K)
Ti 6Al-4V Ti64 4.43 1,660 6.7 0.52
Grade 2 Ti40A 4.51 1,675 21.9 0.56
Grade 5 Ti-6Al-4V 4.43 1,650 7.2 0.54
Grade 12 Ti-0.3Mo-0.8Ni 4.48 1,630 17.5 0.58
Ti 5Al-2.5Sn N/A 4.50 1,645 15.0 0.57

WHAT SETS BaseTi APART?

When it comes to sourcing high-quality titanium materials, flexibility, and reliability, BaseTi has you covered. We are more than just a supplier; we are a value-added partner in your success. Here's what makes us stand out:

No Minimum Order Requirements
At BaseTi, we understand that your projects come in all shapes and sizes. That’s why we offer the flexibility of no minimum order quantities, enabling us to serve you better and deliver value regardless of your project's scale.

Customizable Dimensions
Your needs are unique, and we get that. With our state-of-the-art cutting equipment and experienced team, we can think from your perspective and offer customizable dimensions that fit precisely into your specifications.

Extensive Titanium Inventory
Time is of the essence in any project. With our comprehensive stock of various titanium materials, including titanium rods, tubes, sheets, and wires, we can quickly cater to your needs without any delays.

Premium Sponge Titanium Raw Materials
Quality is at the core of BaseTi's values. We source our sponge titanium from reputed international sources, ensuring the best quality and performance for your projects.

Third-Party Credible Inspection Certificates
Trust but verify. To build your confidence, we offer third-party, credible inspection certificates that attest to the quality and reliability of our titanium materials.

Proven Expertise in Processing
Most of our collaborations are with mechanical workshops and manufacturers, and this gives us practical insights into what exactly you need. Our experience translates into a smoother, more efficient working relationship with you.

Experience the next level of dental innovation with BaseTi's titanium disk & disc solutions. Contact us to discover how we're transforming the landscape of dental excellence.
