High Speed Tissue Packing Machine Full Servo Tissue Converting Machine
High Speed Tissue Packing Machine Full Servo Tissue Converting Machine
Specifications
Specification/Description :
0.6MPa
Brand Name :
Mingchuang
Certification :
CE & ISO Certifications
Packaging Type :
Single Pack Wrapping
Production Process :
Feeding, Embossing, Folding, Packing
Delivery Time :
About 30 days
MOQ :
1 Set
Air Pressure :
0.6 MPa
Control System :
PLC and Gear Control
Price :
On request
Payment Terms :
T/T, 30% deposit, balance to be paid before shipment
Remarks :
-
Packaging Details :
Plywood Case or Plywood Pallet
Item :
Air Pressure
Function :
Facial Tissue Packing
Place of Origin :
Foshan, China
Cutting Speed :
280 cuts/min
Description

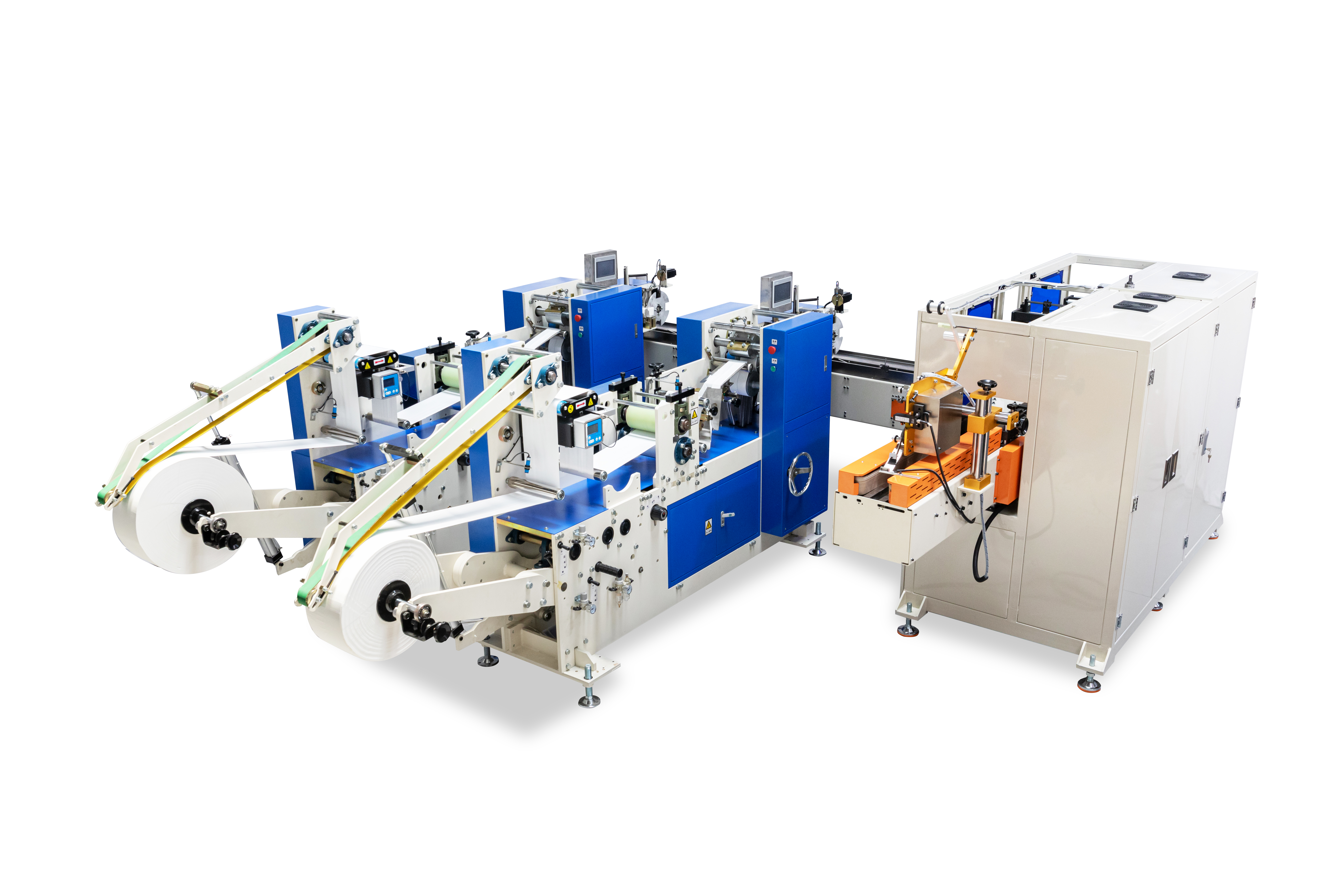

Full-Servo High-Speed Single-Pack Handkerchief Tissue Machine

Model MJ-AS-301 Handkerchief Bundling Machine is a fully servo-driven production line engineered for high-speed single-pack handkerchief tissue manufacturing. It integrates parent roll feeding, embossing and perforating, folding, buffering, single-pack packaging, and case packing with palletizing into one continuous automated process.

Production Process

Parent roll feeding → embossing & perforating → folding → conveyor buffering → single pack packaging → case packing & palletizing

Facial Tissue Folding Machine
High Speed Tissue Packing Machine Full Servo Tissue Converting Machine
Facial tissue folding unit with servo-controlled folding rollers.
Facial Tissue Cutting Machine
High Speed Tissue Packing Machine Full Servo Tissue Converting Machine
Rotary facial tissue cutting machine with adjustable cutting length and width.
Item Parameter Name Specification Remark
1 Cutting Speed 280 cuts/min Depends on cutting length
2 Product Specification Change Time Approx. 4 min Depends on operator proficiency
3 Blade Replacement Time Approx. 4 min Depends on operator proficiency
4 Cutting Range L: 100–250 mm / W: 60–120 mm / H: 20–120 mm Length / Width / Height
5 Cutting Length Tolerance ±1 mm —
6 Trim Length >10 mm —
7 Overall Dimension (L×W×H) 3725 × 1400 × 1700 mm —
8 Machine Weight ≥1400 kg —
9 Power Supply 380V 50Hz —
10 Cutter Motor Power 3 kW —
11 Total Power 8 kW —
12 Voltage Fluctuation Range ±10% —
13 Air Source Pressure 0.6 MPa —

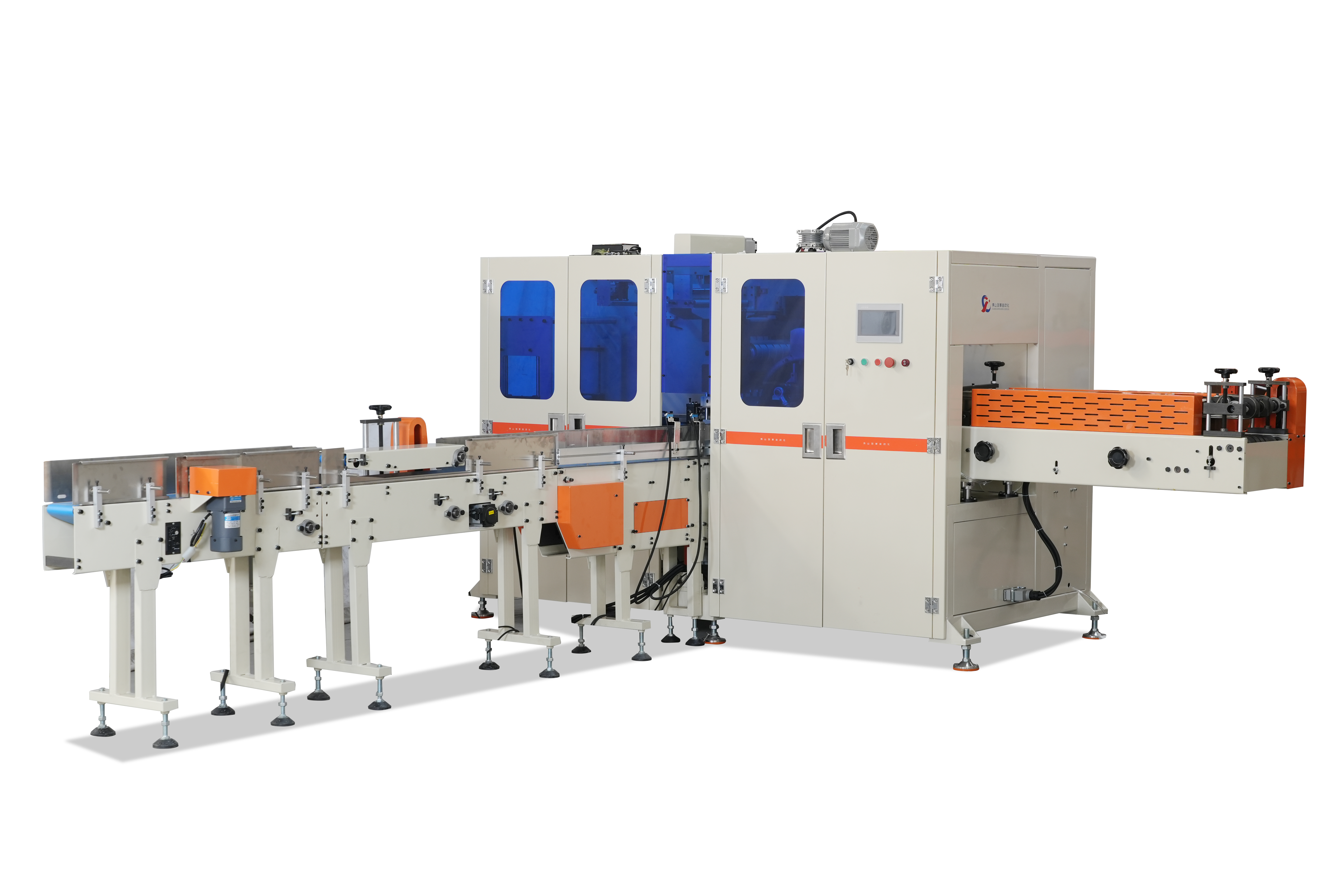

Facial Tissue 3D Packaging Machine
High Speed Tissue Packing Machine Full Servo Tissue Converting Machine
3D packaging unit for single-pack facial tissue wrapping.
Item Parameter Name Specification Remark
1 Packaging Speed 30–80 packs/min Depends on material length and thermal stability
2 Film Width Range Max. 520 mm Can be customized according to different materials
3 Packing Size L: 100–250 mm / W: 60–120 mm / H: 20–120 mm Different sizes can be adjusted
4 Overall Dimensions 4300 × 1600 × 1570 mm Length × Width × Height
5 Machine Weight ≈1400 kg Approximate weight
6 Power Supply 380V 50Hz Standard industrial power
7 Total Power 11.4 kW Total installed power
8 Air Pressure 0.6 MPa Pneumatic working pressure

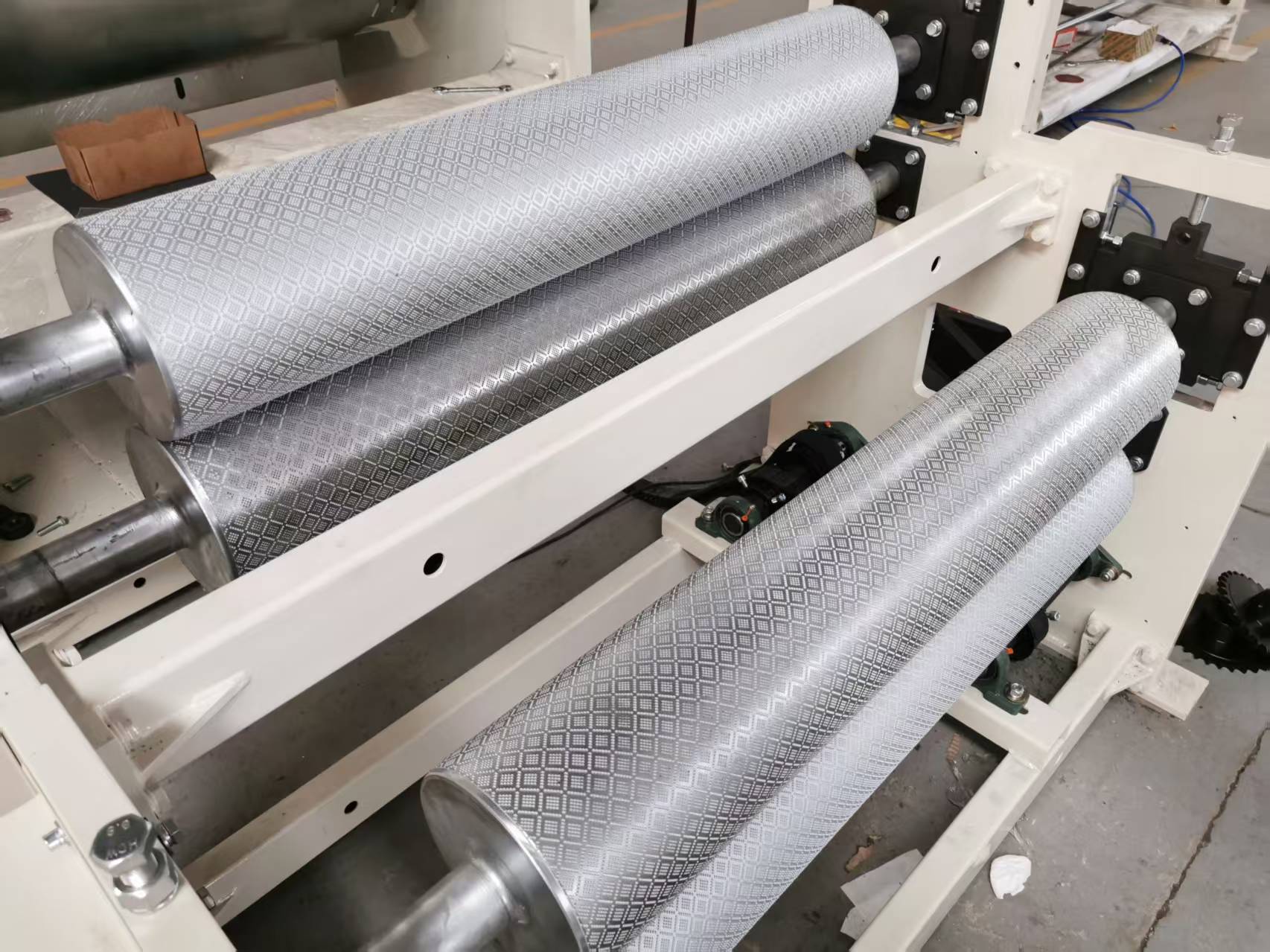

Customizable 3D Embossing Rollers for Facial Tissue
High Speed Tissue Packing Machine Full Servo Tissue Converting Machine
Custom 3D embossing rollers available for personalized tissue patterns.
Facial Tissue Unpacking, Packing, and Sealing Machine
High Speed Tissue Packing Machine Full Servo Tissue Converting Machine
End-of-line unpacking, packing, and sealing unit.
Production Line Requirements & Capabilities

The production line covers an area of approximately 100 square meters. The factory requires an electricity supply of no less than 50 kilowatts and must be equipped with an 8 cubic meter air compressor.

The line can accommodate the production of base paper with a maximum diameter of 1500 mm.

Production Process Details

The folding rollers and other components lead the material into the folding section. The semi-finished paper strips are folded by the automatic folding mechanism, which handles the folding tail and related processes. The folded semi-finished paper strips are then sent to the post-processing section through the conveying system for pre-pressing, shaping, and other processes. Finally, the processed semi-finished paper strips are automatically fed into the large rotary paper cutter for cutting.
