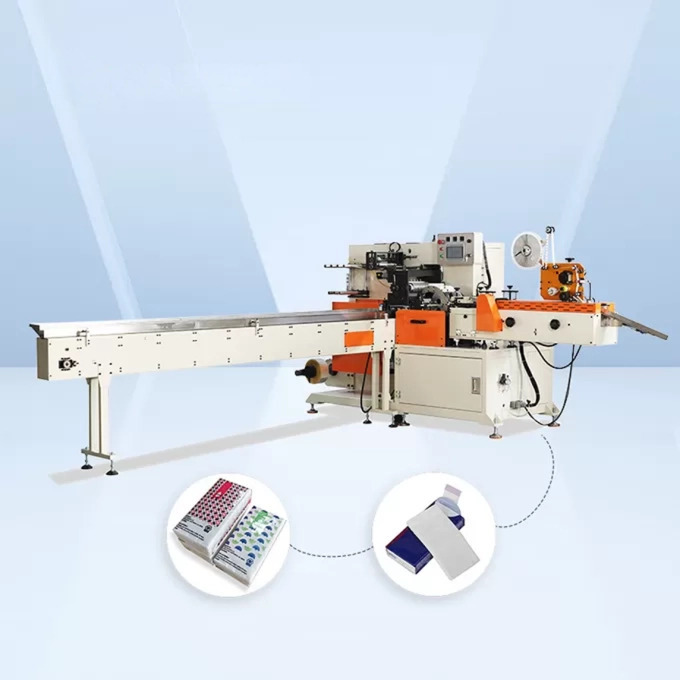

280 Cuts/Min Paper Towel Cutting Machine Full Automatic Facial Tissue Wrapping Machine High Speed
280 Cuts/Min Paper Towel Cutting Machine Full Automatic Facial Tissue Wrapping Machine High Speed
Specifications
Place of Origin :
Foshan, China
Specification/Description :
0.6MPa
Packaging Type :
Single Pack Wrapping
Production Process :
Feeding, Embossing, Folding, Packing
Packaging Details :
Plywood Case or Plywood Pallet
Delivery Time :
About 30 days
Price :
On request
Air Pressure :
0.6 MPa
MOQ :
1 Set
Payment Terms :
T/T,30% deposit,balance to be paid before shipment
Remarks :
-
Certification :
CE & ISO Certifications
Item :
Air Pressure
Brand Name :
Mingchuang
Control System :
PLC and Gear Control
Function :
Facial Tissue Packing
Cutting Speed :
280 cuts/min
Description
High-Speed Full Automatic Facial Tissue Packing Machine with PLC & Gear Control System

Single-pack tissue wrapping equipment engineered for continuous, high-output production lines. The system integrates cutting, folding, packaging, and case handling into one synchronized process.

MJ-AS-301 Handkerchief Bundling Machine

Production Process:

  1. Parent roll feeding
  2. Embossing & perforating
  3. Folding
  4. Conveyor buffering
  5. Single-pack packaging
  6. Case packing & palletizing
Facial Tissue Folding Machine

280 Cuts/Min Paper Towel Cutting Machine Full Automatic Facial Tissue Wrapping Machine High Speed

Facial Tissue Cutting Machine
280 Cuts/Min Paper Towel Cutting Machine Full Automatic Facial Tissue Wrapping Machine High Speed
Item No. Parameter Name Specification Remark
1 Cutting Speed 280 cuts/min Depends on cutting length
2 Product Specification Change Time Approx. 4 min Depends on operator proficiency
3 Blade Replacement Time Approx. 4 min Depends on operator proficiency
4 Cutting Range L: 100–250 mm / W: 60–120 mm / H: 20–120 mm Length / Width / Height
5 Cutting Length Tolerance ±1 mm —
6 Trim Length >10 mm —
7 Overall Dimension (L×W×H) 3725 × 1400 × 1700 mm —
8 Machine Weight ≥1400 kg —
9 Power Supply 380V 50Hz —
10 Cutter Motor Power 3 kW —
11 Total Power 8 kW —
12 Voltage Fluctuation Range ±10% —
13 Air Source Pressure 0.6 MPa —
Facial Tissue 3D Packaging Machine
280 Cuts/Min Paper Towel Cutting Machine Full Automatic Facial Tissue Wrapping Machine High Speed
Item No. Parameter Name Specification Remark
1 Packaging Speed 30–80 packs/min Depends on material length and thermal stability
2 Film Width Range Max. 520 mm Can be customized according to different materials
3 Packing Size L: 100–250 mm / W: 60–120 mm / H: 20–120 mm Different sizes can be adjusted
4 Overall Dimensions 4300 × 1600 × 1570 mm Length × Width × Height
5 Machine Weight ≈1400 kg Approximate weight
6 Power Supply 380V 50Hz Standard industrial power
7 Total Power 11.4 kW Total installed power
8 Air Pressure 0.6 MPa Pneumatic working pressure
Customizable 3D Embossing Rollers for Facial Tissue
280 Cuts/Min Paper Towel Cutting Machine Full Automatic Facial Tissue Wrapping Machine High Speed
Facial Tissue Unpacking, Packing, and Sealing Machine
280 Cuts/Min Paper Towel Cutting Machine Full Automatic Facial Tissue Wrapping Machine High Speed
Installation Requirements & Capacity

The production line covers an area of approximately 100 square meters. The factory must supply no less than 50 kilowatts of electricity and be equipped with an 8 cubic meter air compressor. The line accommodates base paper rolls with a maximum diameter of 1500 mm.

Production Process Overview

The folding rollers and other components feed into the folding section. After folding, the semi-finished paper strips pass through the automatic folding mechanism, which handles the folding tail and related processes. The folded semi-finished strips are then transferred via the conveying system to the post-processing section for pre-pressing, shaping, and other operations. Finally, the processed semi-finished paper strips are automatically fed into the large rotary paper cutter for cutting.
