Automatic Tissue Paper Packing Machine PLC Gear Control Tissue Wrapping Machine 280 Cuts/Min
Automatic Tissue Paper Packing Machine PLC Gear Control Tissue Wrapping Machine 280 Cuts/Min
Specifications
Place of Origin :
Foshan, China
Specification/Description :
0.6MPa
Packaging Type :
Single Pack Wrapping
Production Process :
Feeding, Embossing, Folding, Packing
Price :
On request
Brand Name :
Mingchuang
Packaging Details :
Plywood Case or Plywood Pallet
Air Pressure :
0.6 MPa
MOQ :
1 Set
Remarks :
-
Certification :
CE & ISO Certifications
Item :
Air Pressure
Control System :
PLC and Gear Control
Payment Terms :
T/T, 30% deposit, balance to be paid before shipment
Function :
Facial Tissue Packing
Cutting Speed :
280 cuts/min
Delivery Time :
About 30 days
Description

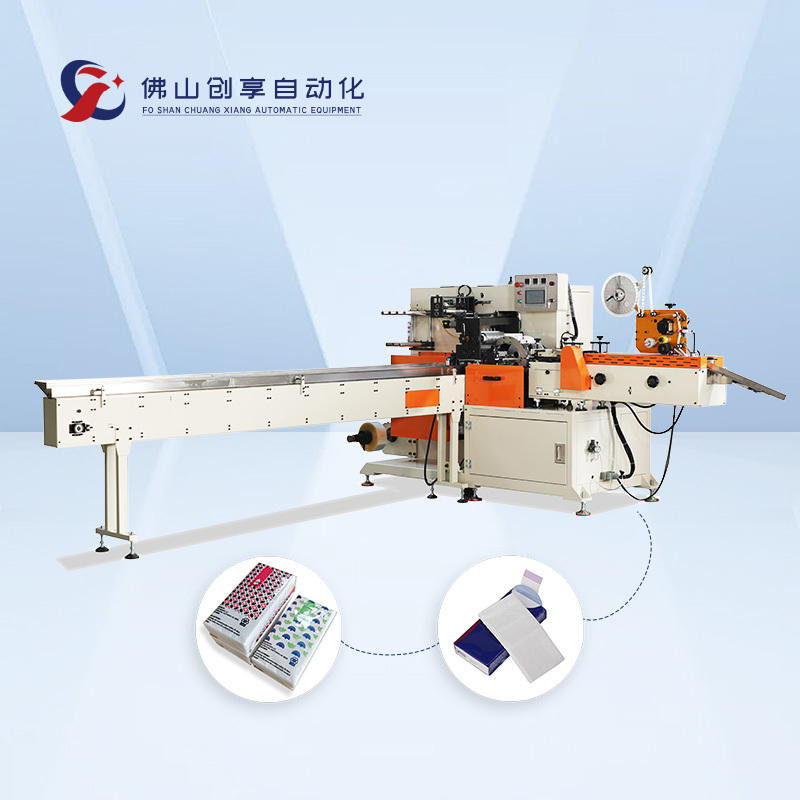

Full Automatic Facial Tissue Packing Machine — Single Pack Tissue Wrapping Equipment

This fully automatic production line handles the complete process from parent roll feeding through to case packing and palletizing. It combines embossing, perforating, folding, buffering, single-pack wrapping, and final carton packing into one integrated system, delivering consistent output at up to 280 cuts per minute.

Production Process Flow
  1. Parent roll feeding
  2. Embossing & perforating
  3. Folding
  4. Conveyor buffering
  5. Single pack packaging
  6. Case packing & palletizing
MJ-AS-301 Handkerchief Bundling Machine
Facial Tissue Folding Machine
Automatic Tissue Paper Packing Machine PLC Gear Control Tissue Wrapping Machine 280 Cuts/Min
Facial Tissue Cutting Machine
Automatic Tissue Paper Packing Machine PLC Gear Control Tissue Wrapping Machine 280 Cuts/Min
Item No. Parameter Name Specification Remark
1 Cutting Speed 280 cuts/min Depends on cutting length
2 Product Specification Change Time Approx. 4 min Depends on operator proficiency
3 Blade Replacement Time Approx. 4 min Depends on operator proficiency
4 Cutting Range L: 100–250 mm / W: 60–120 mm / H: 20–120 mm Length / Width / Height
5 Cutting Length Tolerance ±1 mm —
6 Trim Length > 10 mm —
7 Overall Dimension (L×W×H) 3725 × 1400 × 1700 mm —
8 Machine Weight ≥ 1400 kg —
9 Power Supply 380V 50Hz —
10 Cutter Motor Power 3 kW —
11 Total Power 8 kW —
12 Voltage Fluctuation Range ±10% —
13 Air Source Pressure 0.6 MPa —
Facial Tissue 3D Packaging Machine
Automatic Tissue Paper Packing Machine PLC Gear Control Tissue Wrapping Machine 280 Cuts/Min
Item No. Parameter Name Specification Remark
1 Packaging Speed 30–80 packs/min Depends on material length and thermal stability
2 Film Width Range Max. 520 mm Can be customized according to different materials
3 Packing Size L: 100–250 mm / W: 60–120 mm / H: 20–120 mm Different sizes can be adjusted
4 Overall Dimensions 4300 × 1600 × 1570 mm Length × Width × Height
5 Machine Weight ≈ 1400 kg Approximate weight
6 Power Supply 380V 50Hz Standard industrial power
7 Total Power 11.4 kW Total installed power
8 Air Pressure 0.6 MPa Pneumatic working pressure
Customizable 3D Embossing Rollers for Facial Tissue
Automatic Tissue Paper Packing Machine PLC Gear Control Tissue Wrapping Machine 280 Cuts/Min
Facial Tissue Unpacking, Packing, and Sealing Machine
Automatic Tissue Paper Packing Machine PLC Gear Control Tissue Wrapping Machine 280 Cuts/Min
Facility Requirements & Production Process
The production line covers an area of approximately 100 square meters. The factory power supply must be no less than 50 kilowatts, and an 8 cubic meter air compressor is required. The line can accommodate the production of base paper with a maximum diameter of 1500 mm.
Production Process

The folding rollers and other components lead the material into the folding section. After folding, the semi-finished paper strips are processed by the automatic folding mechanism, including the folding tail and other operations. The folded semi-finished paper strips are then sent to the post-processing section through the conveying system for pre-pressing, shaping, and related processes. Finally, the processed semi-finished paper strips are automatically fed into the large rotary paper cutter for cutting.
