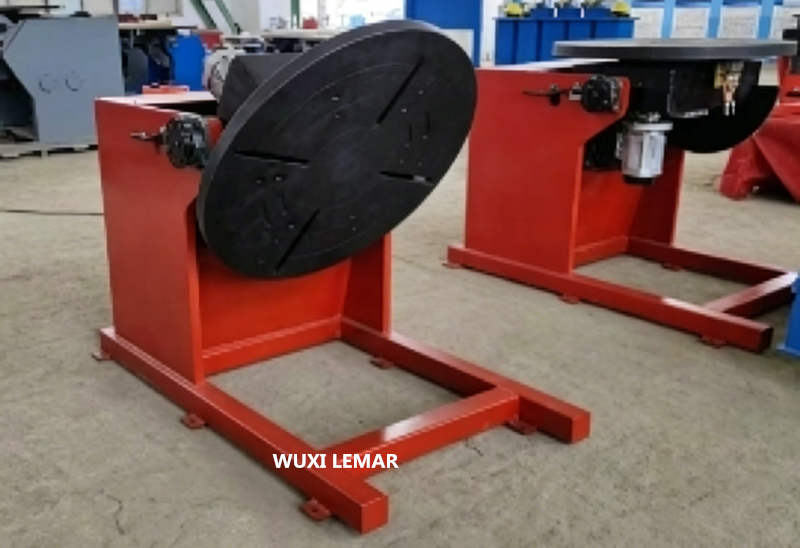

5000kg Rotary Welding Turntable for Tank Pipe Flange Circular Welding
5000kg Rotary Welding Turntable for Tank Pipe Flange Circular Welding
5000kg Rotary Welding Turntable for Tank Pipe Flange Circular Welding
5000kg Rotary Welding Turntable for Tank Pipe Flange Circular Welding
5000kg Rotary Welding Turntable for Tank Pipe Flange Circular Welding
5000kg Rotary Welding Turntable for Tank Pipe Flange Circular Welding
Specifications
Supply Ability :
500 units/month
Tilt Range :
0-90 Degree
Brand Name :
LEMAR
Model NO. :
BWJ-50
Place of Origin :
WUXI
Foot Pedal :
Yes
Packaging Details :
170.00cm * 190.00cm * 190.00cm
Model Number :
BWJ-5T
Rotaion Speed :
0.1-1rpm
MOQ :
1
Delivery Time :
10-20 work days
Rotation Motor :
2.2kw
Transport Package :
Standard Package
Payment Terms :
L/C,D/A,D/P,T/T
Postioner Type :
Seat Type
Price :
500-1000USD
Optional :
TIG MIG Mag Welding Machine
Certification :
CE
Worktable Diameter :
1600mm
Description
5000kg Rotary Welding Turntable for Tank Pipe Flange Circular Welding
5000kg Rotary Welding Turntable for Tank Pipe Flange Circular Welding

5Ton tilting welding positioner is medium-duty rotary welding auxiliary equipment, specially designed for 0.5-5 ton cylindrical, disc and irregular heavy workpieces. The turntable supports 360° horizontal rotation and 0°-90° free tilting, converting difficult overhead welding into flat welding. Equipped with VFD stepless speed regulation and dual control system to guarantee uniform welding bead. Widely used for small tanks, pipe flanges, elbows, valve bodies and pressure vessel end welding, ideal equipment for medium and heavy welding workshops.

Core Advantages
  • Heavy load structure, thick casting worktable and reinforced reducer, stable operation under full 5-ton load
  • 0°-90° arbitrary tilting with mechanical self-locking, no slipping after positioning
  • VFD stepless speed control, stable low-speed rotation, suitable for MIG, TIG and submerged arc welding
  • Dual control: hand pendant for precise adjustment, foot pedal to free welder's hands
  • Standard mounting holes on worktable, convenient to install various fixtures
  • Built-in overload, emergency stop protection, safe for long continuous production
Technical Specifications
Item Specification
Model WP-5T Welding Positioner
Rated Load 5000kg (5 Ton)
Worktable Diameter Φ800mm (Customizable)
Rotation Speed 0~2rpm stepless adjustable
Tilting Range 0° ~ 90°
Motor Power 1.5kW
Control Mode VFD Inverter + Hand Pendant + Foot Pedal
Working Voltage 380V, customizable 415V/220V
Net Weight Around 1350kg
Product Structure Composition
  • Rotary Worktable: Cast steel plate with reserved holes for fixture installation
  • Tilting Driving Assembly: Realize angle flipping with reliable self-locking performance
  • Rotary Drive System: Motor and reducer provide steady rotating power
  • Electric Control Cabinet: Integrate frequency converter and safety protection circuit
  • Hand Pendant & Foot Pedal: Dual operation for flexible on-site control
  • Heavy Base Frame: Thick steel plate base to keep overall stability
Application Scope
  • Pressure vessel end and cylinder circumferential welding
  • Pipe flange, elbow and pipe fitting circular seam welding
  • Valve body, pump housing and hydraulic component welding
  • Small storage tank, air tank fabrication
  • Metallurgical and environmental equipment structural welding
  • Ship small cylindrical component processing
Certification & Export Packaging
  • Certification: CE certificate available for customs clearance and bidding
  • Packaging: Main machine wrapped with waterproof film; electric parts packed in export plywood case
  • Shipment: Suitable for 20GP /40GP container sea transport
  • HS Code: 84688000
Frequently Asked Questions
Q1: Can the machine tilt and rotate at the same time?
A1: It supports independent rotation and tilting operation, cannot perform two actions simultaneously for safety consideration.
Q2: Is the tilting angle self-locking?
A2: Equipped with mechanical self-locking structure. It will not slide down after adjusting any angle between 0°-90°.
Q3: Can you modify the hole position on the worktable for my fixture?
A3: Yes, we accept customized worktable size and hole layout based on your drawings.
Q4: Which welding machines can it cooperate with?
A4: Compatible with MIG, TIG, SAW and other common welding power sources.
Q5: What voltage options do you provide for overseas customers?
A5: Support 220V, 380V, 415V, 50Hz/60Hz customized voltage.
