50kg Load Rotary Welding Positioner 0 - 90 Degree Tilt Angle CNC Control Pipe
50kg Load Rotary Welding Positioner 0 - 90 Degree Tilt Angle CNC Control Pipe
50kg Load Rotary Welding Positioner 0 - 90 Degree Tilt Angle CNC Control Pipe
50kg Load Rotary Welding Positioner 0 - 90 Degree Tilt Angle CNC Control Pipe
50kg Load Rotary Welding Positioner 0 - 90 Degree Tilt Angle CNC Control Pipe
50kg Load Rotary Welding Positioner 0 - 90 Degree Tilt Angle CNC Control Pipe
50kg Load Rotary Welding Positioner 0 - 90 Degree Tilt Angle CNC Control Pipe
50kg Load Rotary Welding Positioner 0 - 90 Degree Tilt Angle CNC Control Pipe
Specifications
Brand Name :
Lemar
Model Number :
BWJ-5
Certification :
CE Certificate
Place of Origin :
China
MOQ :
1
Price :
500-1000USD
Payment Terms :
,L/C,T/T,Western Union,D/A,D/P
Supply Ability :
500pcs/month
Delivery Time :
5 days
Packaging Details :
Wooden box
Loading weight :
50kg
Control mode :
CNC or Normal
Suitable :
Automatic welding/Manual welding
Exported to :
Europe,UK,USA,Russia,South Africa,Egypt,North America
Input power :
220V 50HZ
Chuck diameter :
200mm 300mm
Motor power :
120W
Tilt angle :
0-90 degree
Package :
Wooden box
Top diameter :
315mm
Description

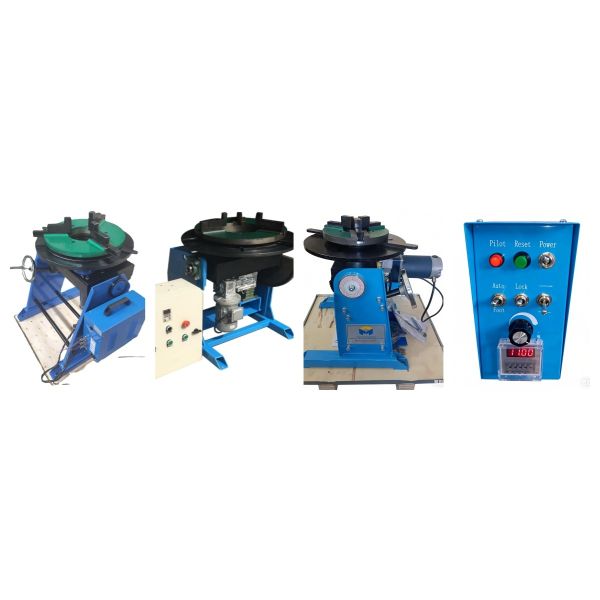

50kg Rotary Welding Table Positioner for Automatic Laser TIG MIG Welding
50kg Rotary welding table positioners offer significant value for welding small to medium load workpieces, improving welding quality, increasing production efficiency, reducing labor costs, and ensuring operational safety. They are particularly suitable for batch or non-standard welding of lightweight components such as engineering machinery parts, hardware components, metal frames, and small pressure vessels.
50kg Load Rotary Welding Positioner 0 - 90 Degree Tilt Angle CNC Control Pipe
Specifications and Features
  • Max Loading Weight: 50KG
  • Function: Rotary turntable for Welding
  • Angle: 0-90 degree
  • Speed: 0.5-6 RPM
  • Optional: CNC Control, Welding Chuck, Welding torch holder
Key Benefits
  • Improve welding quality and reduce rework rate
  • Increase production efficiency and shorten work cycle
  • Reduce labor costs and labor intensity
  • Higher degree of automation
  • Enhanced safety
Applications of the 50kg welding turntable positioner include: small gearbox housings, flanges, small engineering machinery parts, automotive parts, metal stairs, and metal components. If the workpiece weight is close to 50kg, it is recommended to choose a model with a slightly higher rated load, allowing for a certain safety margin.
Package List
50kg welding positioner 1 pcs Power cord 1 pcs
Control pedal 1 pcs Control box 1 pcs
Torch holder (if needed) 1 pcs Connection plug 1 set
User Manual 1 pcs Hex Wrench 1 pcs
Mounting bolts 1 set (Washers and studs) Certificate 1 pcs
Welding chuck (if needed) 1 pcs Packing List 1 pcs
Commercial Invoice 1 pcs CO Certificate 1 pcs
Other documents you need to do clearance in local
Metal welding is a core foundational process in modern manufacturing, engineering construction, and equipment manufacturing. This includes metal sheet welding, metal pipe welding, and metal cylinder welding. WUXI LEMAR MACHINERY EQUIPMENTS CO.LTD specializes in various automated welding tools and equipment (welding table, welding positioner, welding rotator, welding manipulator, and other welding machines), and we hope you can find the right equipment for you!
