L Type Welding Positioner 500mm Table For Robotic Welding Turntable
L Type Welding Positioner 500mm Table For Robotic Welding Turntable
L Type Welding Positioner 500mm Table For Robotic Welding Turntable
L Type Welding Positioner 500mm Table For Robotic Welding Turntable
L Type Welding Positioner 500mm Table For Robotic Welding Turntable
L Type Welding Positioner 500mm Table For Robotic Welding Turntable
Specifications
Brand Name :
Lemar
Model Number :
BWJ-50
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
500USD
Payment Terms :
L/C,D/A,T/T,D/P,Western Union
Supply Ability :
500pcs/month
Delivery Time :
3-5 days
Packaging Details :
Wooden box
Loading weight :
500kg
Vertical loading :
250kg
Rotation speed :
33.8°/sec
Drive motor :
2KW/1.5KW
Postioner table diameter :
500mm
Tilt angle :
0-90°
Eccentricity :
≤150 mm
Gravity :
≤200 mm
Description
500kg Dual Axis L-Type Turning Positioner Linked with Welding Robots

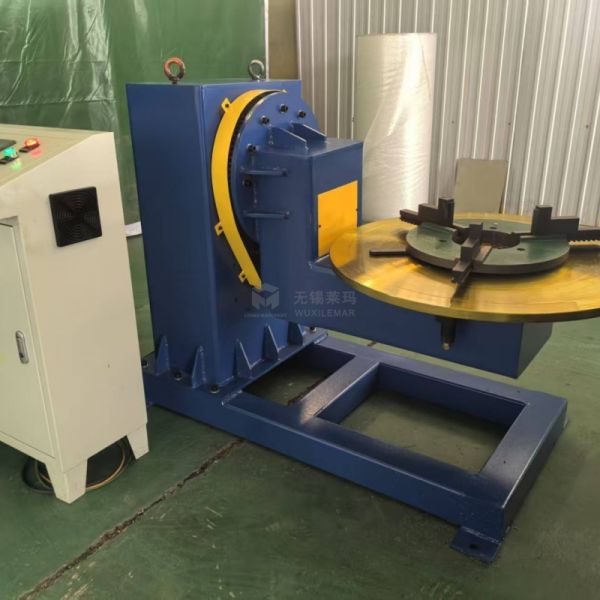

The L-type welding positioner is a specialized welding auxiliary device designed for optimal workpiece positioning. Its mechanical structure resembles the letter "L" and consists of a horizontal worktable and vertical support frame, belonging to the dual-axis positioner category. Through coordinated movement of its two rotating axes, it flips and rotates workpieces to optimal welding positions, significantly improving welding quality and efficiency.
Working Principle
Through combined motion of two degrees of freedom (large rotation and small rotation), the workpiece achieves omnidirectional rotation in space. This dual-rotation mechanism overcomes the limitations of single-axis positioners, providing complete positioning flexibility for complex welding applications.
Technical Specifications
Horizontal Loading Weight 500kg
Vertical Loading Weight 250kg
Turntable Diameter ∅500
Rotate Angle 0-360°
Vertical Axis Speed 33.8°/sec
Horizontal Axis Speed 78°/sec
Tilt Angle ±90°
Repeatability ±2.0 arcmin
Key Advantages
  • High Degree of Freedom: As a two-axis external axis system, the L-type positioner provides exceptional rotational freedom, ensuring weld seams are always in optimal processing positions for improved first-pass yield rates.
  • Excellent Load-Bearing Capacity: The L-shaped structural design offers superior torsional and bending resistance, making it ideal for carrying large, heavy workpieces with some models handling loads exceeding 20 tons.
  • High Precision and Stability: Utilizes RV reducers and servo motors for fast return speeds and high repeatability (typically ±1.5 arc min), meeting stringent robotic automated welding requirements.
  • Enhanced Safety and Operability: Some models feature lifting mechanisms allowing workpiece loading/unloading at low positions and welding at elevated positions, improving operational safety and convenience.
  • Integrated Interface: Equipped with linkage control interfaces for seamless connection to welding robot control systems, featuring power, water, and gas connection capabilities for coordinated action.
