Load 300kg Welding Rotating Positioner 200W For Automatic Circumferential Welding
Load 300kg Welding Rotating Positioner 200W For Automatic Circumferential Welding
Load 300kg Welding Rotating Positioner 200W For Automatic Circumferential Welding
Load 300kg Welding Rotating Positioner 200W For Automatic Circumferential Welding
Load 300kg Welding Rotating Positioner 200W For Automatic Circumferential Welding
Load 300kg Welding Rotating Positioner 200W For Automatic Circumferential Welding
Specifications
Brand Name :
Lemar
Model Number :
BWJ-30
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
500USD
Payment Terms :
L/C,D/A,T/T,D/P,Western Union
Supply Ability :
500pcs/month
Delivery Time :
3-5 days
Packaging Details :
Wooden box
Loading weight :
300kg
Vertical loading :
150kg
Rotation speed :
0.2-2.5r/min
Drive motor :
DC 200W
Postioner table diameter :
500mm
Tilt angle :
0-90°
TIG Wire feeder :
Optional
Oscillator :
Optional
Description

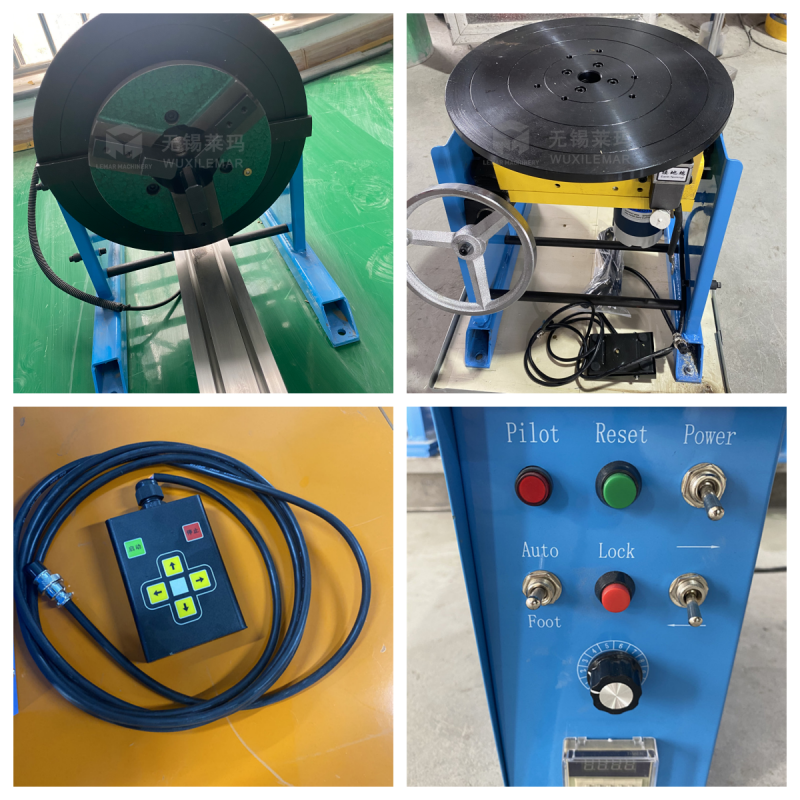

300kg Welding Positioner with Brake Motor
Designed for automatic circumferential MIG/TIG welding seams, this 300kg welding positioner is a practical welding auxiliary device that adjusts complex welds to optimal positions through workpiece flipping and rotation.
Key Functions & Applications
  • Circular Welding: Ideal for circumferential butt welding of pipes, flanges, and cylindrical components
  • Multifaceted Structure Welding: Easily flips complex workpieces with welds distributed across multiple faces, eliminating manual flipping and improving efficiency
  • Extended Automation: Functions as an external axis for robots and welding manipulators, enabling automated and intelligent welding production
Technical Specifications
Specification Value
Horizontal Loading Weight 300kg
Vertical Loading Weight 150kg
Drive Motor DC 200W
Rotate Angle 0-360°
Tilt Angle 0-90°
Rotation Speed 0.2-2.5 r/min
Positioner Table Diameter 500mm
Load 300kg Welding Rotating Positioner 200W For Automatic Circumferential Welding
Different Types of welding positioners
Seat type welding positioner This is the most widely used type. Its worktable can rotate around its own axis, and the entire worktable can also tilt or flip, offering high flexibility. It is suitable for welding small to medium-sized workpieces such as machine bases, flanges, pipe fittings, and discs, weighing from approximately 0.5 tons to 50 tons.

Load 300kg Welding Rotating Positioner 200W For Automatic Circumferential Welding
Dual-axis P type welding positioner The main function of a dual-axis welding positioner is to assist welders or welding robots in flipping and rotating workpieces. Load 300kg Welding Rotating Positioner 200W For Automatic Circumferential Welding
L-type welding positioner It has two degrees of rotation freedom, providing good openness in the operating space. L-type positioners are more suitable for complex components such as loader front frames. Load 300kg Welding Rotating Positioner 200W For Automatic Circumferential Welding
Headstock tailstock positioner It uses a headstock (active rotation) and a tailstock (driven support) to clamp the workpiece. It is suitable for long shafts, box beams, or some complex-shaped components, and has a large load-bearing capacity and stable operation. It is often used in conjunction with welding robots. Load 300kg Welding Rotating Positioner 200W For Automatic Circumferential Welding
Combined Welding Positioner It adopts a modular structure, making it very convenient to assemble and disassemble the various components. It can precisely lock the workpiece at any angle. Combined with a chuck and pneumatic centers, it ensures the accuracy of workpiece positioning. Accessories such as the welding torch holder can also be freely adjusted. Load 300kg Welding Rotating Positioner 200W For Automatic Circumferential Welding
