Small 30kg Welding Positioner for Pipe Flange Circumferential Weld Rotary Workpiece Turntable
Small 30kg Welding Positioner for Pipe Flange Circumferential Weld Rotary Workpiece Turntable
Small 30kg Welding Positioner for Pipe Flange Circumferential Weld Rotary Workpiece Turntable
Small 30kg Welding Positioner for Pipe Flange Circumferential Weld Rotary Workpiece Turntable
Small 30kg Welding Positioner for Pipe Flange Circumferential Weld Rotary Workpiece Turntable
Small 30kg Welding Positioner for Pipe Flange Circumferential Weld Rotary Workpiece Turntable
Small 30kg Welding Positioner for Pipe Flange Circumferential Weld Rotary Workpiece Turntable
Small 30kg Welding Positioner for Pipe Flange Circumferential Weld Rotary Workpiece Turntable
Specifications
Through hole :
65mm
Payment Terms :
T/T,D/P,D/A,L/C
Rated load capacity :
30kg (horizontal)
Model Number :
BWJ-3
Tilt mode :
Manual worm gear tilting, self-locking
Motor power :
40W
MOQ :
1
Delivery Time :
10-20 work days
Packaging Details :
55.00cm * 59.00cm * 65.00cm
Model :
BWJ-3
Brand Name :
LEMAR
Rotation speed :
1~12 r/min, stepless speed regulation
Place of Origin :
WUXI
Standard chuck :
200mm 3-jaw welding chuck
Price :
500-1000USD
Tilt angle :
0~90°
Certification :
CE
Control method :
Control box + foot pedal switch
Supply Ability :
500 units/month
Description
Small 30kg Welding Positioner for Pipe Flange Circumferential Weld Rotary Workpiece Turntable
Product Overview

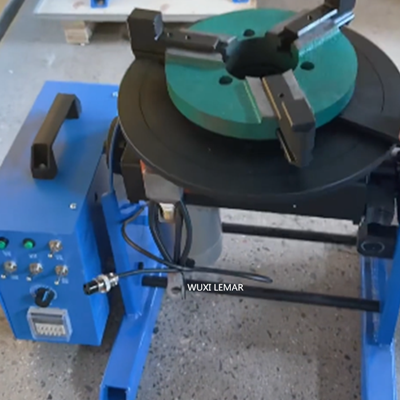

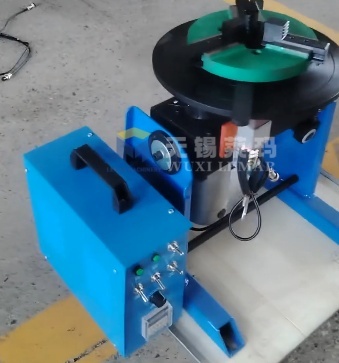

Our 30kg welding positioner is a compact rotary turntable designed for small pipe and flange circumferential welding. It features manual tilting from 0° to 90° and stepless adjustable rotation speed, significantly improving welding quality and working efficiency. Compatible with TIG and MIG welding machines.

Small 30kg Welding Positioner for Pipe Flange Circumferential Weld Rotary Workpiece TurntableSmall 30kg Welding Positioner for Pipe Flange Circumferential Weld Rotary Workpiece Turntable

Core Advantages
  • Worm gear self-locking structure maintains stable tilt angle during welding
  • Stepless rotation speed 1-12 rpm with easy control knob adjustment
  • Foot pedal switch for hands-free operation
  • 65mm large through hole for pipe penetration welding
  • Solid cast iron base for anti-vibration and stable running
  • Simple maintenance with long service life
  • Compact size for easy installation on workbenches
Application Industries
Small 30kg Welding Positioner for Pipe Flange Circumferential Weld Rotary Workpiece TurntableSmall 30kg Welding Positioner for Pipe Flange Circumferential Weld Rotary Workpiece Turntable
  • Pressure vessel accessories manufacturing
  • Pipe & flange processing
  • Stainless steel cylinder production
  • Hardware metal fabrication
  • Automotive spare parts welding
  • Environmental equipment workshop
  • Machinery component processing
Technical Parameters
Item Specification
Rated Load 30kg (horizontal)
Tilting Range 0-90°
Rotation Speed 1-12 rpm, stepless
Standard Chuck 200mm 3-jaw chuck
Through Hole 65mm
Motor 40W DC motor
Power 110V/220V 50/60Hz
Small 30kg Welding Positioner for Pipe Flange Circumferential Weld Rotary Workpiece TurntableSmall 30kg Welding Positioner for Pipe Flange Circumferential Weld Rotary Workpiece Turntable
Optional Accessories

We supply optional spare parts for this 30kg welding positioner to meet your different welding demands:

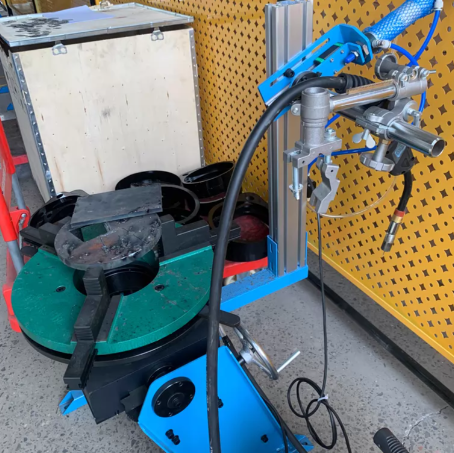

  • Welding torch holder
  • Digital speed display module
  • Extended work plate
  • Special customized chuck
  • Foot pedal switch with timing function
After-Sales Service & Delivery
Small 30kg Welding Positioner for Pipe Flange Circumferential Weld Rotary Workpiece Turntable
  • Warranty period: 1 year for main machine (excluding wearing parts)
  • Online technical guidance for installation & commissioning
  • Custom options available: torch holder, timing controller
  • Packing: Export wooden case
  • Shipment: LCL / FCL from Shanghai port
