10kg Small Rotary Welding Table Positioner For Stainless Steel Corrugated Pipe Welding
10kg Small Rotary Welding Table Positioner For Stainless Steel Corrugated Pipe Welding
10kg Small Rotary Welding Table Positioner For Stainless Steel Corrugated Pipe Welding
10kg Small Rotary Welding Table Positioner For Stainless Steel Corrugated Pipe Welding
10kg Small Rotary Welding Table Positioner For Stainless Steel Corrugated Pipe Welding
10kg Small Rotary Welding Table Positioner For Stainless Steel Corrugated Pipe Welding
Specifications
Certification :
CE
Drive motor :
DC 120W
Price :
500USD
Payment Terms :
D/A,L/C,D/P,T/T
MOQ :
1 set
Packaging Details :
Wooden box
Model Number :
BWJ-1
Brand Name :
Lemar
Rotation speed :
0.2-2.5r/min
Loading weight :
10kg
Delivery Time :
3-5 days
TIG Wire feeder :
Optional
Postioner table diameter :
400mm
Tilt angle :
0-90°
Vertical loading :
5kg
Place of Origin :
China
Oscillator :
Optional
Supply Ability :
500pcs/month
Description
10kg Light Duty Turning Positioner with Pedal
10kg Light Duty Turning Positioner with Pedal is a lightweight, automated welding auxiliary device designed to adjust weld seams to ideal welding positions through rotation and tilting. This significantly enhances welding quality, efficiency, and operator comfort, making it particularly suitable for precision or small workpieces weighing up to 10 kg.

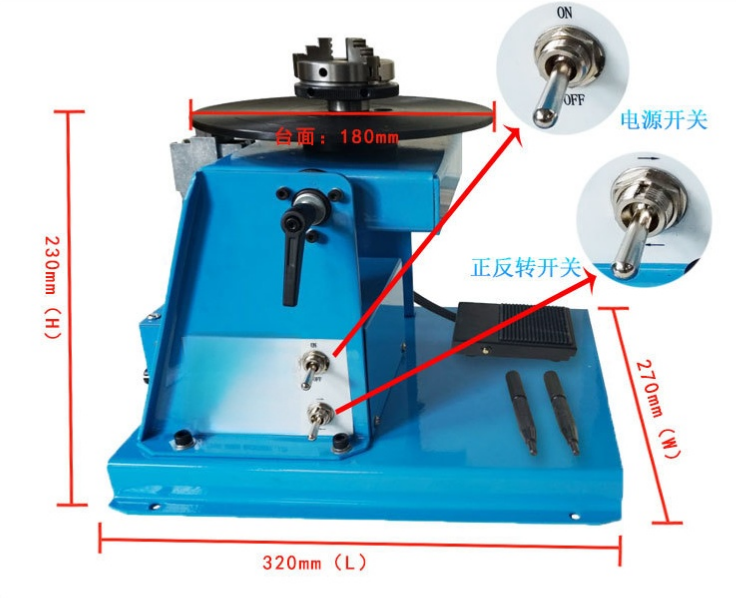

Core Structural Components
Worktable: Directly fixes the workpiece with 180mm diameter, capable of mounting chucks or special fixtures
Frame: Steel supporting base providing stability for the entire device
Tilting Mechanism: Enables worktable tilting from 0-90 degrees for optimal weld seam positioning
Drive and Control Systems
Drive System: Permanent magnet DC motor with gearbox providing stepless speed regulation from 2-20 rpm
Control System: Includes control box and foot switch for hands-free operation during welding
Technical Specifications
Horizontal Loading Weight 10kg
Vertical Loading Weight 5kg
Drive Motor DC 120W
Rotate Angle 0-360°
Tilt Angle 0-90°
Rotation Speed 0.2-2.5 r/min
Positioner Table Diameter 400mm

10kg Small Rotary Welding Table Positioner For Stainless Steel Corrugated Pipe Welding

10kg positioners are typically available with a variety of optional accessories, such as a three-jaw self-centering chuck (for quickly clamping round workpieces), a pneumatic tailstock (for supporting longer workpieces and maintaining concentricity), and a welding torch adjustment mechanism (for precisely fixing and fine-tuning the welding torch position).

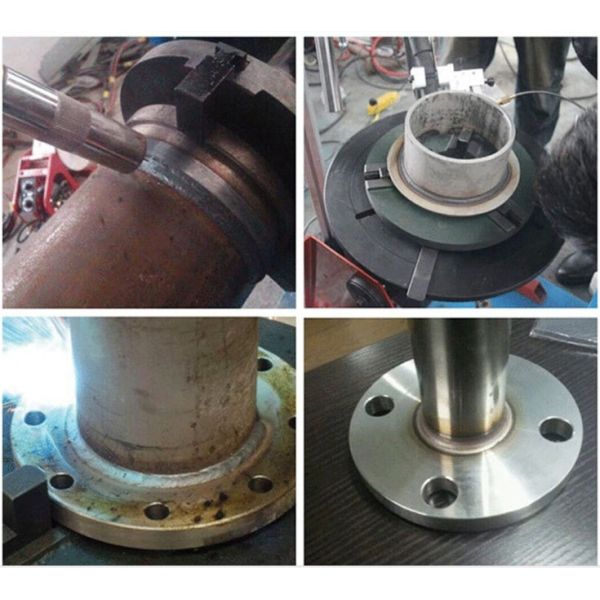

They are mostly used for welding flanges, pipe fittings, pipe connections, automotive shock absorbers, exhaust pipe components, stainless steel/metal bellows, hose fittings, round end caps, small pressure tanks, and end caps.

10kg Small Rotary Welding Table Positioner For Stainless Steel Corrugated Pipe Welding
