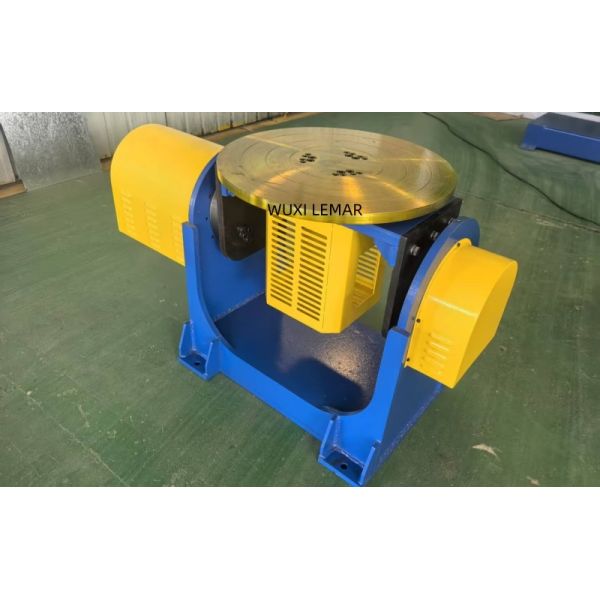

Dual Axis Rotary Welding Positioner P Type 81°/Sec 500mm Motorized Welding Turntable
Dual Axis Rotary Welding Positioner P Type 81°/Sec 500mm Motorized Welding Turntable
Dual Axis Rotary Welding Positioner P Type 81°/Sec 500mm Motorized Welding Turntable
Dual Axis Rotary Welding Positioner P Type 81°/Sec 500mm Motorized Welding Turntable
Dual Axis Rotary Welding Positioner P Type 81°/Sec 500mm Motorized Welding Turntable
Dual Axis Rotary Welding Positioner P Type 81°/Sec 500mm Motorized Welding Turntable
Specifications
Brand Name :
Lemar
Model Number :
BWJ-30
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
500USD
Payment Terms :
L/C,D/A,T/T,D/P,Western Union
Supply Ability :
500pcs/month
Delivery Time :
3-5 days
Packaging Details :
Wooden box
Loading weight :
300kg
Vertical loading :
150kg
Rotation speed :
81°/sec
Drive motor :
2KW/1.5KW
Postioner table diameter :
500mm
Tilt angle :
0-90°
Eccentricity :
≤100 mm
Gravity :
≤100 mm
Description
Dual Axis P Type Welding Positioner Rotary Table - 300kg Loading Capacity
This dual-axis welding positioner rotary table with 300kg loading weight offers versatile automation solutions for industrial welding applications. Designed for integration with robotic systems to create flexible welding workstations, it excels in high-volume, high-quality production environments.
The positioner also serves as an auxiliary tool for workpiece repositioning during manual operations, significantly improving working conditions while enhancing both efficiency and quality in manual welding processes.
Process Compatibility
This welding positioner offers excellent process compatibility, supporting various welding methods including:
  • MAG welding (Metal Active Gas Welding)
  • MIG welding (Metal Inert Gas/Activated Gas Welding)
  • TIG welding (Tungsten Inert Gas Welding)
  • Automated processes including laser welding, plasma arc welding, and MIG welding
Technical Specifications
Specification Value
Horizontal Loading Weight 300kg
Vertical Loading Weight 150kg
Turntable Diameter ∅500
Rotate Angle 0-360°
Vertical Axis Speed 81°/sec
Horizontal Axis Speed 78°/sec
Tilt Angle ±90°
Repeatability ±1.0 arcmin
Dual Axis Rotary Welding Positioner P Type 81°/Sec 500mm Motorized Welding Turntable
Applicable Workpiece Types
Non-Long Workpieces
Ideal for box-shaped, frame-shaped, and disc-shaped workpieces including reducer housings, machine bases, gears, and flanges. These components often require multi-sided welding access.
Complex Structural Parts
Perfect for small to medium-sized workpieces with welds distributed across multiple surfaces and complex weld positions. The dual-axis linkage ensures optimal positioning of the welding torch for each welding point.
Small to Medium-Sized Workpieces
With load ranges from several hundred kilograms to several tons, these positioners are specifically designed for welding small to medium-sized workpieces such as loader front frames, body parts, and mechanical structural components.
