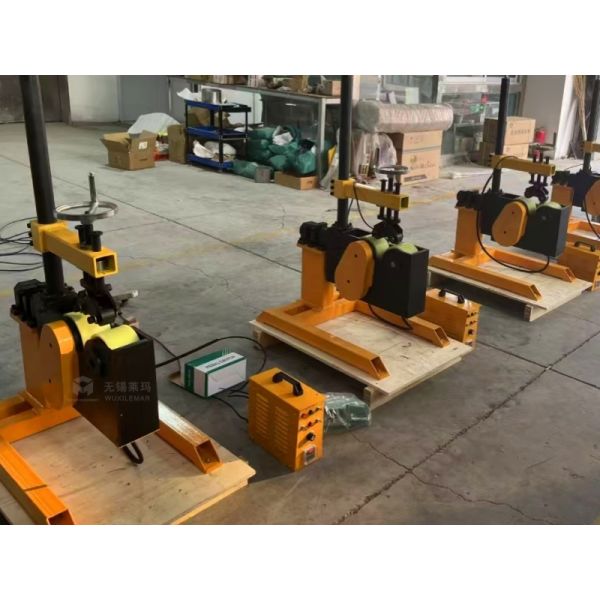

300kg Rotary Welding Positioner 4000rpm Pipe Roller ±90 Degree Tilt Angle
300kg Rotary Welding Positioner 4000rpm Pipe Roller ±90 Degree Tilt Angle
300kg Rotary Welding Positioner 4000rpm Pipe Roller ±90 Degree Tilt Angle
300kg Rotary Welding Positioner 4000rpm Pipe Roller ±90 Degree Tilt Angle
300kg Rotary Welding Positioner 4000rpm Pipe Roller ±90 Degree Tilt Angle
300kg Rotary Welding Positioner 4000rpm Pipe Roller ±90 Degree Tilt Angle
Specifications
Brand Name :
Lemar
Model Number :
YGB-3
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
500USD
Payment Terms :
L/C,D/A,T/T,D/P,Western Union
Supply Ability :
500pcs/month
Delivery Time :
15 days
Packaging Details :
Wooden box
Loading weight :
3000kg
Model :
LMH-3
Rotating Speed :
20-4000rpm
Rotate Motor :
200W
Tilt angle :
±90 degree
Suitable for pipe diameter :
¢50-500mm
Duration :
10 days
Voltage :
Customized
Description
300kg Pressure Roller Type Welding Positioner for Pipe Tees Tank Welding
The pressure roller positioner (also known as pressure roller welding positioner or pipe welding positioner) is professional welding auxiliary equipment designed for heavy machinery manufacturing, pipeline engineering, and pressure vessel production. Its unique support, clamping, and rotation mechanism enables efficient welding of large circular workpieces by fixing them in optimal welding positions while providing smooth rotation and tilting capabilities.
300kg Rotary Welding Positioner 4000rpm Pipe Roller ±90 Degree Tilt Angle
Key Components
  • Positioner Frame
  • Roller Rotation Mechanism
  • Clamping Arm Lifting Mechanism
  • Tilting Mechanism
  • Electrical Control System
Technical Specifications
Model YGB-3
Loading Capacity 300 kg
Rotating Speed 20-4000 rpm
Rotate Motor 200W
Tilt Angle ±90 degrees
Speed Control Method Wireless Frequency Conversion
Suitable Pipe Diameter ¢50-500mm
Core Functions
Workpiece Rotation and Positioning
Utilizes friction between drive rollers and workpiece to rotate circular workpieces around their axis, enabling continuous annular weld seam movement under the welding torch.
Workpiece Clamping and Centering
Liftable pressure rollers securely hold pipes or flanges of different diameters between drive rollers, preventing axial movement or radial runout during rotation and tilting.
Angle Adjustment (Tilting)
Tilts workpiece and roller seat together to transform complex welding positions into optimal ship-shaped welding positions for improved operation and weld quality.
System Integration
Functions as the core unit of welding centers, collaborating with traveling carriages, welding manipulators, or industrial robots for fully automated welding processes.
