1 Ton Welding Positioner Automatic Rotary Welding Turntable for Cylinder Pipe Welding
1 Ton Welding Positioner Automatic Rotary Welding Turntable for Cylinder Pipe Welding
1 Ton Welding Positioner Automatic Rotary Welding Turntable for Cylinder Pipe Welding
1 Ton Welding Positioner Automatic Rotary Welding Turntable for Cylinder Pipe Welding
1 Ton Welding Positioner Automatic Rotary Welding Turntable for Cylinder Pipe Welding
1 Ton Welding Positioner Automatic Rotary Welding Turntable for Cylinder Pipe Welding
Specifications
Model Number :
BWJ-1t
Model :
1T Welding Positioner
MOQ :
1
Delivery Time :
10-20 work days
Rotation Angle :
0‑360° rotary; tilt 0‑120°
Input Voltage :
380V 3‑Phase (custom 220V/415V available)
Payment Terms :
L/C,D/A,D/P,T/T
Workpiece Clamping :
Equipped with chuck mounting flange
Price :
500-1000USD
Control System :
Foot pedal + PLC control box
Certification :
CE
Rated Load :
1000kg
Supply Ability :
500 units/month
Applicable Material :
Carbon steel, stainless steel
Brand Name :
LEMAR
Product Name :
1 Ton Welding Positioner
Place of Origin :
WUXI
Rotation Speed :
Variable speed adjustable
Packaging Details :
120.00cm * 74.00cm * 100.00cm
Description
1 Ton Welding Positioner Automatic Rotary Welding Turntable for Cylinder Pipe Welding
Product Overview

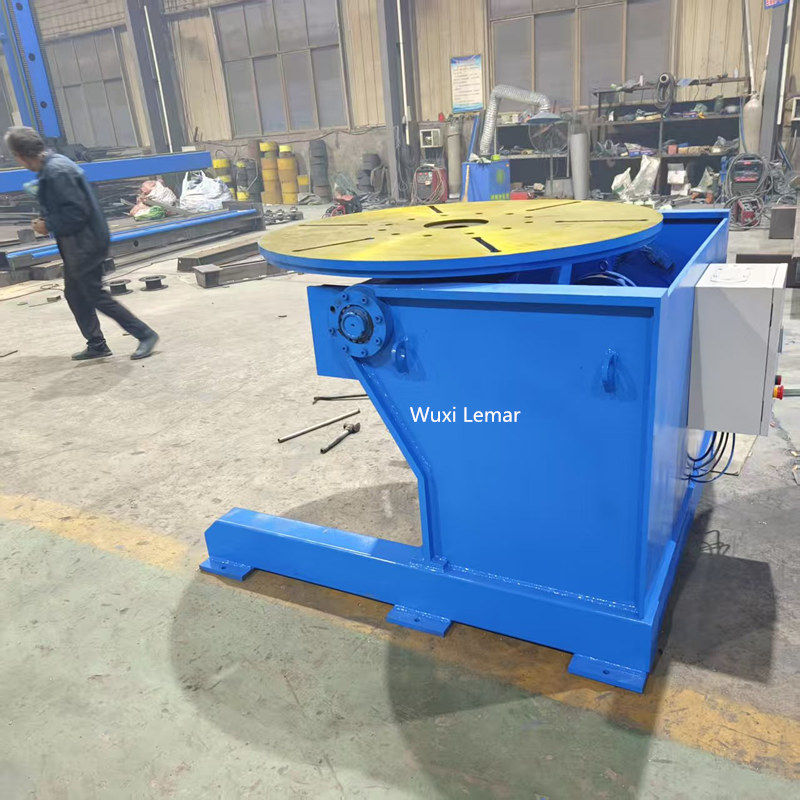

The 1-ton welding positioner is compact automatic rotary welding equipment for small-size workpieces. It can rotate and tilt workpieces, keeping welding seams at ideal flat position. This equipment greatly improves welding quality and working efficiency, and is widely used for small cylinder, pipe, nozzle and shell circumferential welding. It can match 3-jaw /4-jaw welding chuck for stable workpiece clamping.

1 Ton Welding Positioner Automatic Rotary Welding Turntable for Cylinder Pipe Welding1 Ton Welding Positioner Automatic Rotary Welding Turntable for Cylinder Pipe Welding

Working Principle

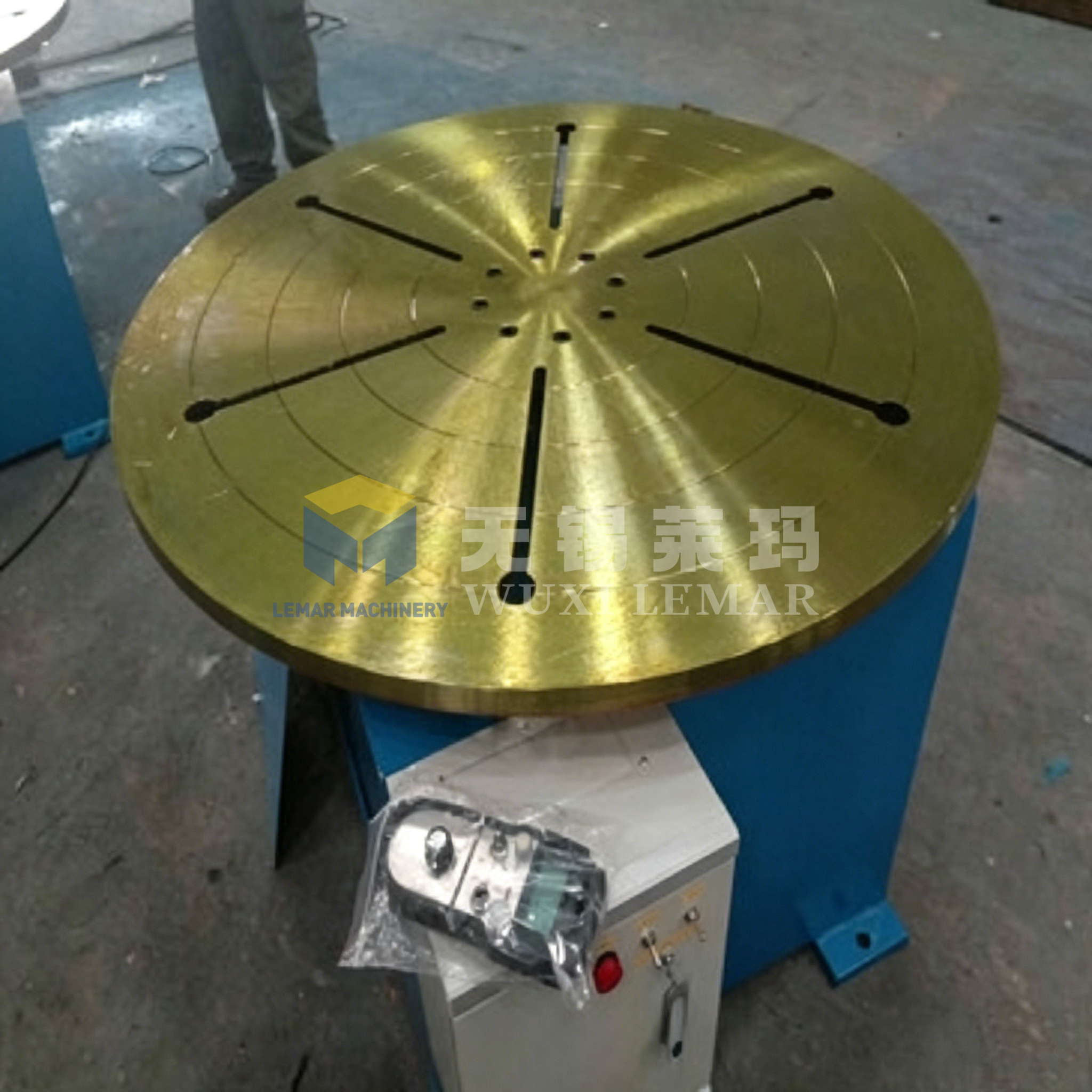

Workpiece is fixed on the turntable flange. Driven by motor and reducer, the table realizes 360° rotation and 0-120° tilting. Operators adjust rotating speed via control box or foot pedal. Workpiece turns automatically to place weld seam in down-hand welding position, reducing welding difficulty and manual labor.

Main Advantages
  • Compact 1-ton load capacity: Light-duty structure for 1000kg workpiece, occupies small workshop space, easy to install and move.
  • Rotating & tilting function: Realize multi-angle adjustment, keep weld seam in optimal welding position for nice weld bead.
  • Flexible speed regulation: Stepless speed adjustment, adapt different pipe and cylinder welding requirements. Foot pedal for convenient on-site operation.

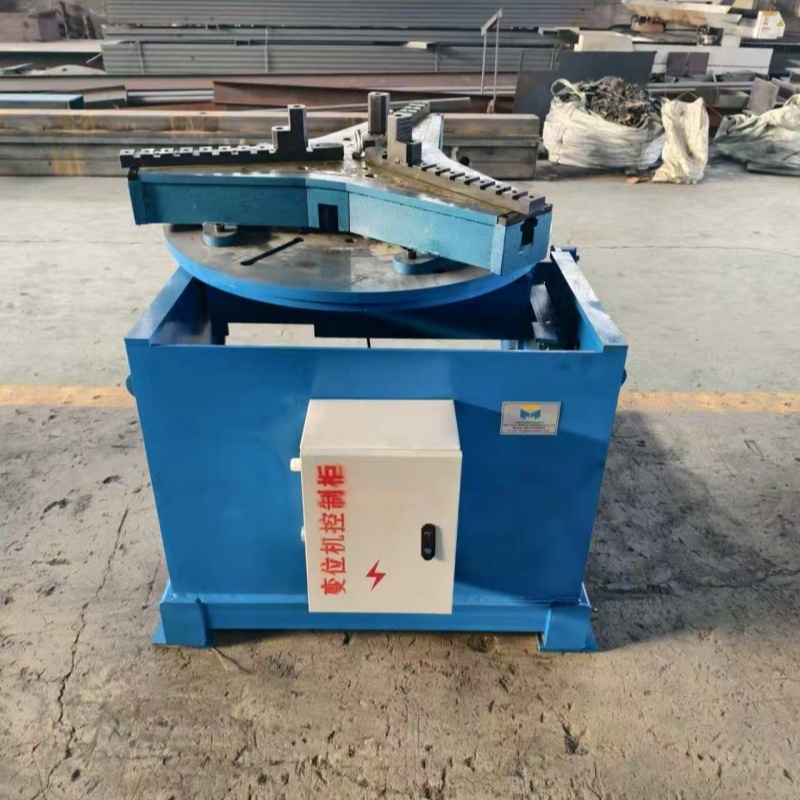

  • Reserved chuck mounting flange: Directly fit 3-jaw or 4-jaw welding chuck for clamping round, square and irregular parts.
  • Customizable configuration: Support different input voltage, modified flange size and special fixture according to your demands.

1 Ton Welding Positioner Automatic Rotary Welding Turntable for Cylinder Pipe Welding1 Ton Welding Positioner Automatic Rotary Welding Turntable for Cylinder Pipe Welding

Technical Parameters
Item Specification
Product 1 Ton Welding Positioner
Rated Loading Capacity 1000kg
Turntable Rotation 0-360°, stepless speed adjustable
Tilt Angle 0-120 degree
Control Mode Control box + foot pedal

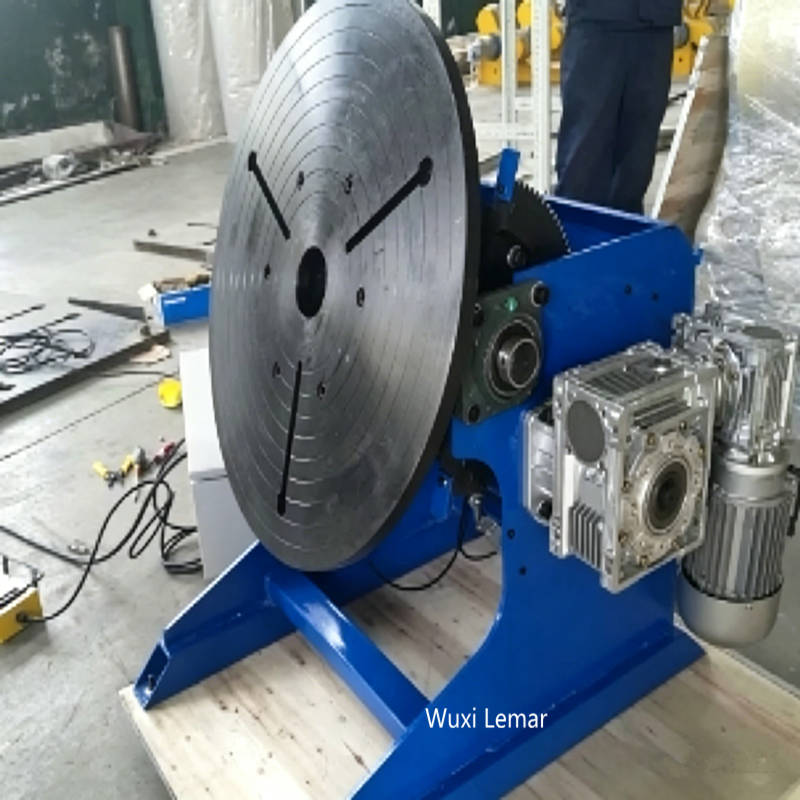

Drive Type Motor & reducer
Mounting Interface Reserved flange for welding chuck
Input Power 380V 3-Phase (custom voltage optional)
Application Small cylinder, pipe, nozzle, shell circumferential welding
Product Features
  • Stable reducer drive, smooth running, low vibration during rotation.
  • PLC control box together with foot pedal, simple operation for ordinary workers.
  • Solid steel frame structure, good rigidity, long-time continuous working available.
  • Reserved standard flange interface, convenient to install external welding chuck.
  • Safe limit protection for tilting movement to avoid over-tilting risk.

1 Ton Welding Positioner Automatic Rotary Welding Turntable for Cylinder Pipe Welding1 Ton Welding Positioner Automatic Rotary Welding Turntable for Cylinder Pipe Welding

Standard & Optional Accessories
Standard Accessories (Included) Optional Accessories (Extra Cost)
1. Positioner main body 1. 3-jaw welding chuck
2. PLC control cabinet 2. 4-jaw welding chuck
3. Foot pedal controller 3. Custom-made fixture
4. Connecting cables 4. Voltage conversion transformer
5. Anchor bolts 5. On-site commissioning service
6. English operation manual
Application Scope
  • Small cylinder & barrel welding: Circumferential seam welding for small-size metal cylinders and storage shells.
  • Pipe and nozzle welding: Pipe fitting, nozzle and flange circumferential welding.
  • Mechanical part welding: Rotary welding for small-sized mechanical components.
  • Stainless steel workpiece processing: Fit for stainless steel shell and vessel welding.
  • Match with welding chuck: Work together with 3-jaw /4-jaw chuck to complete clamping-rotary welding workflow.

1 Ton Welding Positioner Automatic Rotary Welding Turntable for Cylinder Pipe Welding1 Ton Welding Positioner Automatic Rotary Welding Turntable for Cylinder Pipe Welding

Frequently Asked Questions
Q1: What is the maximum loading weight?
A: Rated load is 1000kg, please do not overload.
Q2: Can it install 3-jaw or 4-jaw welding chuck?
A: Yes, reserved standard flange, compatible with our 3-jaw and 4-jaw chucks.
Q3: Can we change input voltage?
A: Yes, we can customize 220V,415V and other three-phase voltage.
Q4: Does it come with foot pedal?
A: Foot pedal is included in standard configuration for convenient operation.
Q5: What workpieces is this 1T positioner suitable for?
A: Mainly for small cylinder, pipe, nozzle and shell circumferential welding.

Welcome to Inquiry: Please tell us your workpiece weight, dimension and local voltage. We can offer suitable solution and competitive price.
