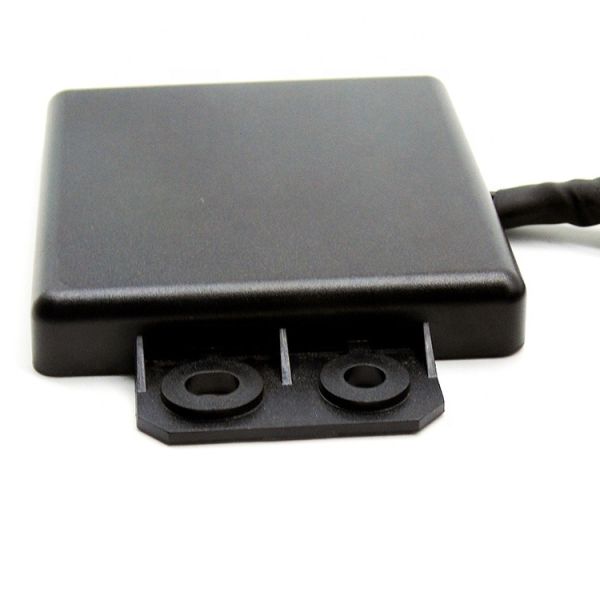

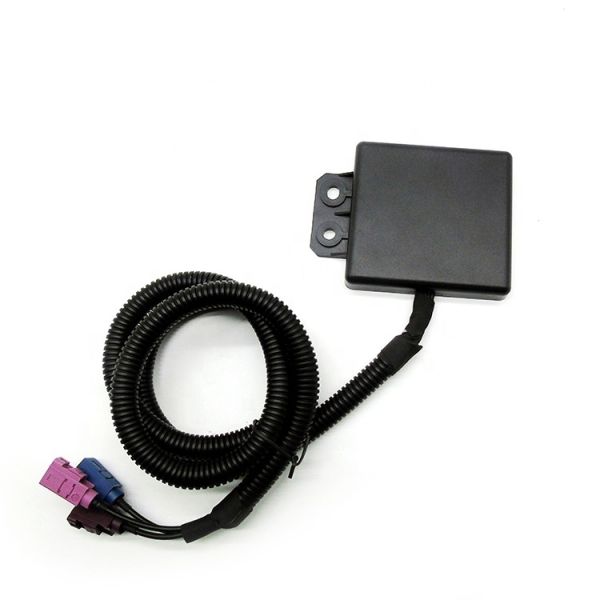

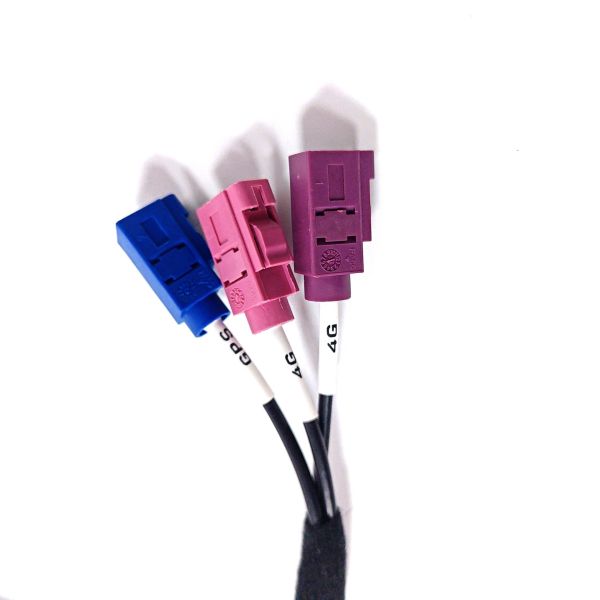

RIDA Antennaer Omni MIMO 3G 4G 5G GPS GNSS 3-in-1 Car Antenna RDYLC-1 Customized Connector 282dB Gain 50
RIDA Antennaer Omni MIMO 3G 4G 5G GPS GNSS 3-in-1 Car Antenna RDYLC-1 Customized Connector 282dB Gain 50
RIDA Antennaer Omni MIMO 3G 4G 5G GPS GNSS 3-in-1 Car Antenna RDYLC-1 Customized Connector 282dB Gain 50
RIDA Antennaer Omni MIMO 3G 4G 5G GPS GNSS 3-in-1 Car Antenna RDYLC-1 Customized Connector 282dB Gain 50
RIDA Antennaer Omni MIMO 3G 4G 5G GPS GNSS 3-in-1 Car Antenna RDYLC-1 Customized Connector 282dB Gain 50
RIDA Antennaer Omni MIMO 3G 4G 5G GPS GNSS 3-in-1 Car Antenna RDYLC-1 Customized Connector 282dB Gain 50
RIDA Antennaer Omni MIMO 3G 4G 5G GPS GNSS 3-in-1 Car Antenna RDYLC-1 Customized Connector 282dB Gain 50
RIDA Antennaer Omni MIMO 3G 4G 5G GPS GNSS 3-in-1 Car Antenna RDYLC-1 Customized Connector 282dB Gain 50
RIDA Antennaer Omni MIMO 3G 4G 5G GPS GNSS 3-in-1 Car Antenna RDYLC-1 Customized Connector 282dB Gain 50
RIDA Antennaer Omni MIMO 3G 4G 5G GPS GNSS 3-in-1 Car Antenna RDYLC-1 Customized Connector 282dB Gain 50
RIDA Antennaer Omni MIMO 3G 4G 5G GPS GNSS 3-in-1 Car Antenna RDYLC-1 Customized Connector 282dB Gain 50
RIDA Antennaer Omni MIMO 3G 4G 5G GPS GNSS 3-in-1 Car Antenna RDYLC-1 Customized Connector 282dB Gain 50
Specifications
Polarity :
vertical
Supply Ability :
400000pcs per month
Brand Name :
RIDA Antennaer
MOQ :
2
Frequency Range :
1575.42MHz & 600-6000MHz
Delivery Time :
10-15days
VSWR :
<1.5
Connector :
customized connector
Place of Origin :
Guangdong, China
Impedance :
50Ω
Service :
OEM/ODM
Model Number :
RDYLC-1
Gain :
28±2dB
Packaging Details :
opp bag single pcs
Type :
GPS/GNSS Antenna
Certification :
ISO9001/IATF169
Description
Customizable Range: Antenna Performance, Appearance, Cable length, Connector type

Products Description

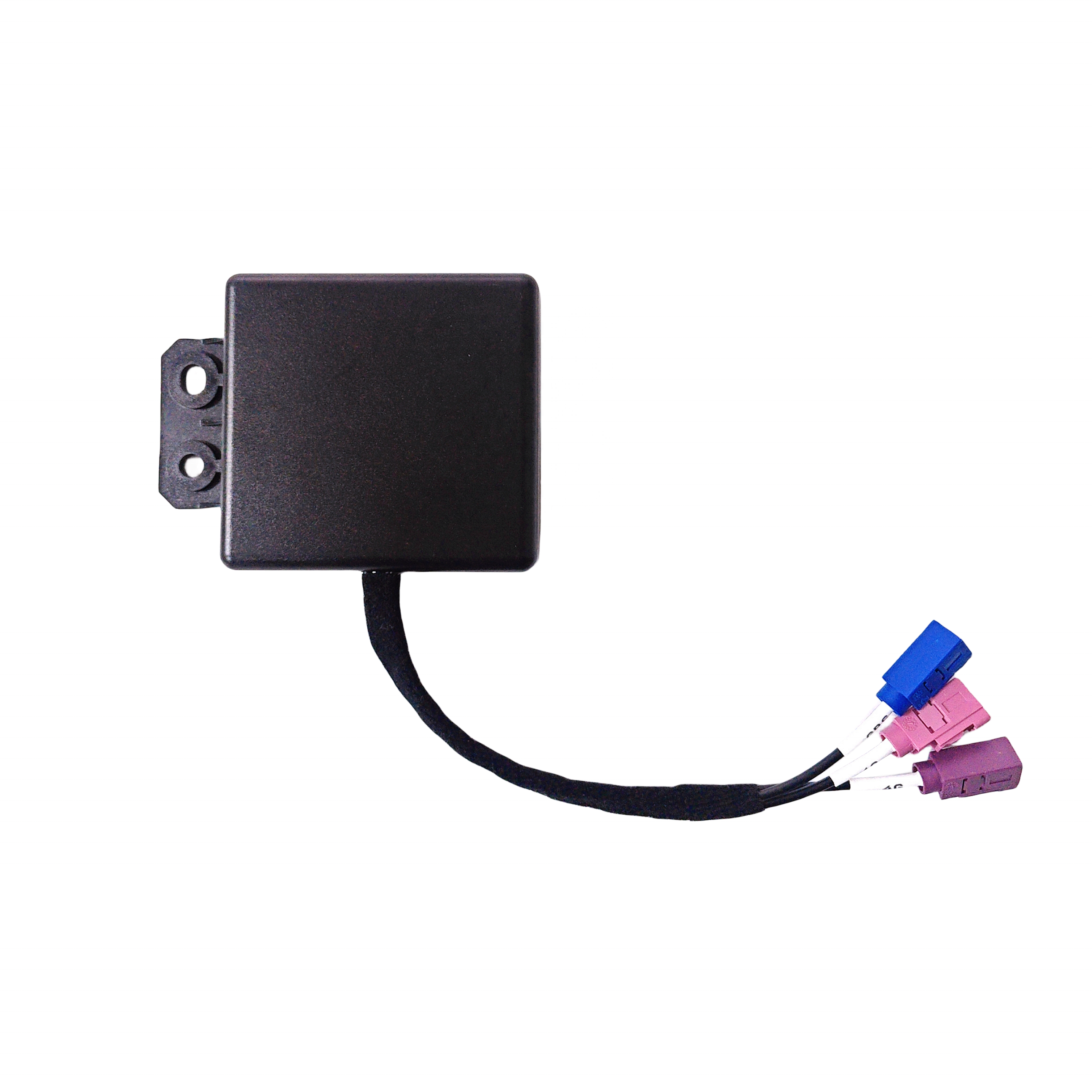

RIDA Antennaer Omni MIMO 3G 4G 5G GPS GNSS 3-in-1 Car Antenna RDYLC-1 Customized Connector 282dB Gain 50 <1.5 VSWR Screw Hole

RIDA Antennaer Omni MIMO 3G 4G 5G GPS GNSS 3-in-1 Car Antenna RDYLC-1 Customized Connector 282dB Gain 50 <1.5 VSWR Screw Hole
RIDA Antennaer Omni MIMO 3G 4G 5G GPS GNSS 3-in-1 Car Antenna RDYLC-1 Customized Connector 282dB Gain 50 <1.5 VSWR Screw Hole
Waterproof, corrosion and high temperature resistance tests, comprehensive quality inspection reports. Ensure the normal use of the product in various environments.
(For more test reports, please contact)
Product Parameters
GPS+GSM+WIFI 3 IN 1 ANTENNA

Center Frequency
1575.42MHz±3 MHz
V.S.W.R
<1.5
Band Width
±5 MHz
Attenuation
fo±100MHz>30dB
Impendence
50 Ω
Peak Gain
>3dBic, Based on 7×7cm ground plane
Gain Coverage
>-4dBic at –90°<0<+90°(over 75% Volume)
Polarization
Right-handed Circular(RHCP)
GPS LNA Specifications

LNA Gain(Without cable)
28dB Typical
Noise Figure
1.5dB
V.S.W.R
<1.65
DC Voltage
2.7V-5.0V±0.5V
DC current
15mA Max(5V DC)
LTE Specifications

Frequency Range
698-2700MHz
V.S.W.R
<1.5
Band Width
±90/280 MHz
Gain
3.0dBi
Polarization
Vertical
Radiation
Omni directional
Max Input power(W)
50 W
Impendence
50 Ω
WIFI Specifications

Frequency Range
2300-2500MHZ
V.S.W.R
1.5:1
Band Width
±100 MHz
Gain
2.15dBi
Polarization
Vertical
Radiation
Omni directional
Max Input power(W)
50 W
Impendence
50 Ω
