Specifications
Brand Name :
RIDA Antennaer
Frequency :
GNSS GPS(L1,L2,L5) BDS( B1,B2,B3) GLONASS(G1,G2,G3)
Base :
magnetic
MOQ :
100
Connectivity :
customized
Size :
185x150mm
Impedance :
50Ω
Model Number :
RDYLC-1
Gain :
30±2dB / 40±2dB
Connector :
TNC or Customized
Application :
ariculture, mapping
Material :
PC(nti - ultraviolet)
Cable :
RG58 5meters
Type :
GPS/GNSS Antenna
Polarity :
RHCP
Price :
$25-33
VSWR :
<1.5
Service :
OEM/ODM
Place of Origin :
Guangdong, China
Description
Products Description

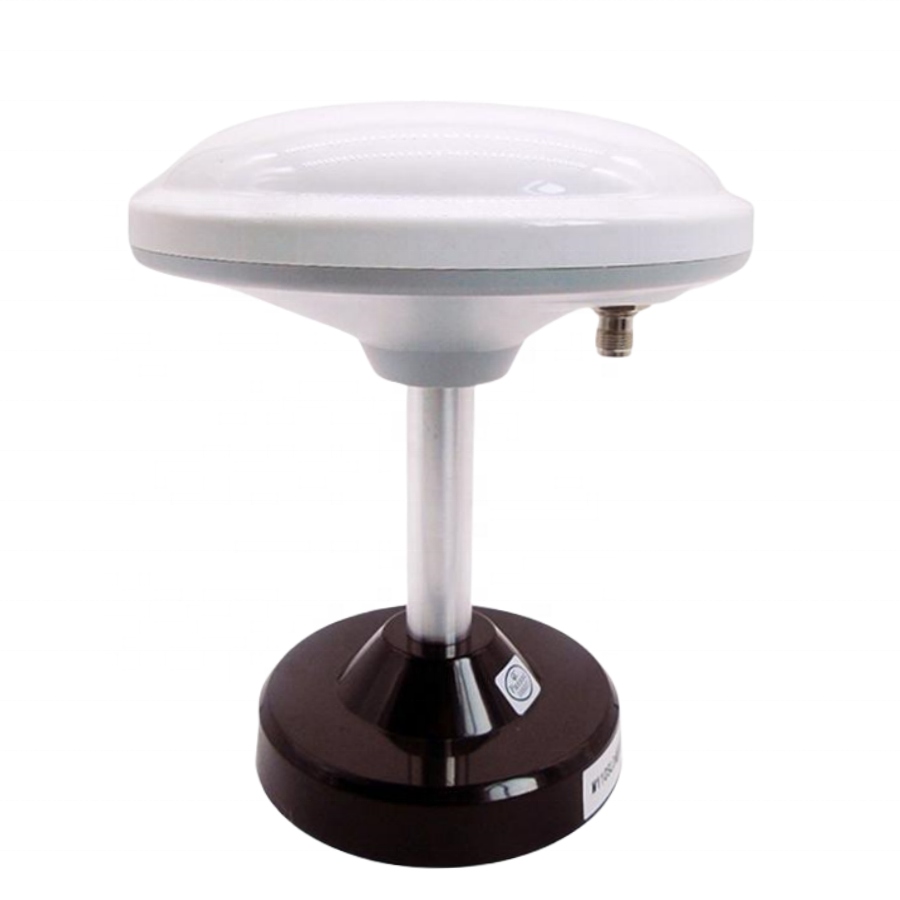

GNSS GPS RTK L1 L2 L5 Suitable for Industrial Mapping, Smart Agricultural, Driverless Car Centimeter-level Positioning Antennas
L1 L2 L5 Tri-Band GNSS Antenna + L Band
It covers tri-band GPS/QZSS-L1/L2/L5, GLONASS-G1/G2/G3, Galileo- El/E5a/E5b/E6, BeiDou-B1/B2/B3, as well as L-band correction services. It is designed for precise tri-band positioning.

The antenna is ideally suited for precision agriculture, self-driving vehicle tracking and guidance, and other applications where accuracy is critical. The antenna has excellent multipath signal rejection, linear phase response, and tight phase center variation.

Applications

- Autonomous Vehicle Tracking and Guidance
- Positive Train Control (PTC)
- Positive Train Location (PTL)
- GNSS Precision Positioning
- Precision agriculture
- Tri-band RTK and PPP receivers
- Law enforcement and public safety

Benefits

- Excellent interference suppression
- Excellent multipath rejection
- Higher system accuracy
- Excellent signal-to-noise ratio
- Fast satellite reception speed

GNSS GPS RTK L1 L2 L5 Suitable for Industrial Mapping, Smart Agricultural, Driverless Car Centimeter-level Positioning Antennas
GNSS GPS RTK L1 L2 L5 Suitable for Industrial Mapping, Smart Agricultural, Driverless Car Centimeter-level Positioning Antennas

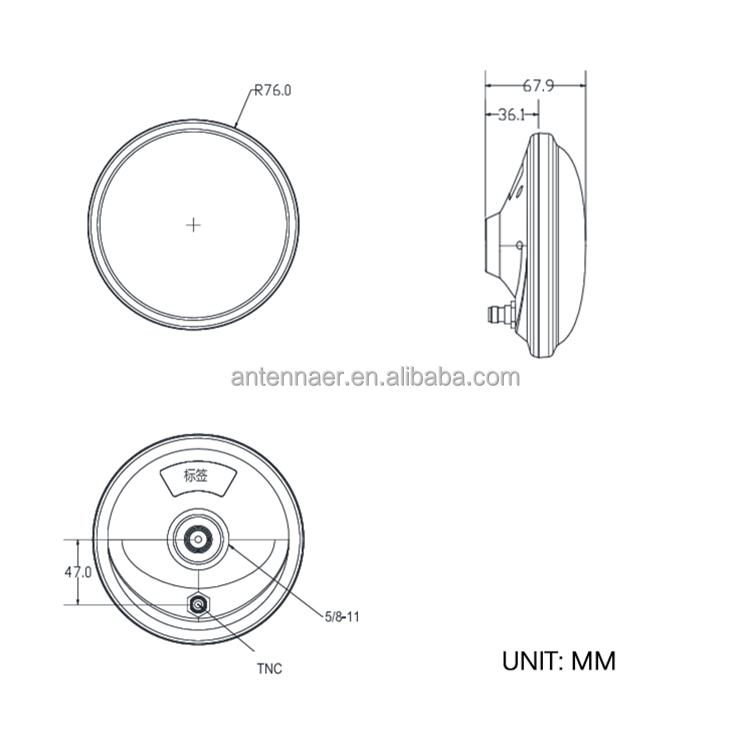

Structural Dimensions & Performance Diagrams
GNSS GPS RTK L1 L2 L5 Suitable for Industrial Mapping, Smart Agricultural, Driverless Car Centimeter-level Positioning Antennas
GNSS GPS RTK L1 L2 L5 Suitable for Industrial Mapping, Smart Agricultural, Driverless Car Centimeter-level Positioning Antennas
( Accept OEM/ODM)

Product Parameters & Customizable Range
ANTENNA

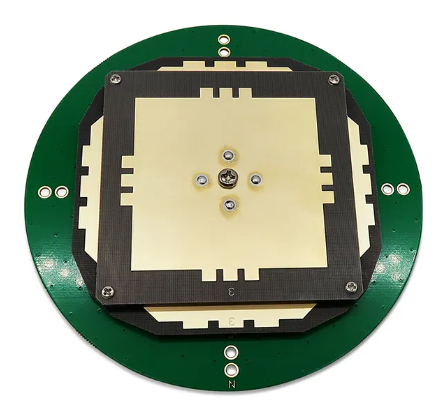

Patch Architecture
Dual Four-point-feed
Supported positioning signal bands
GPS:L1/L2/L5;

BDS:B1/B2/B3;

GLONASS:G1/G2/G3;

Galileo:El/E5a/E5b/E6
Peak Gain*
≥5.0dBi@Fc
Polarization
RHCP
Axial Ratio@zenith
≤ 1.5dB
Azimuth Coverage
360°
Impedance
50 ohm
Phase-center accuracy
≤2.0mm
Phase-center repeatability
≤ 1.0mm
LNA

Frequency Range
1170MHz~1290MHz

1559MHz~1605MHz
LNA Gain*
40±2.0dB (Typ. @25°C)
Group Delay variation
≤ 15ns
Noise Figure*
≤2 0 dB@25°C , Typ (Pre-filtered)
Output VSWR
≤ 1.8:1 typ. 2.0:1max
Operation Voltage
3.0~ 16V DC
Operation Current
≈45mA
MECHANICALS & ENVIRONMENTAL

Dimension
Φ152mm*67.9mm

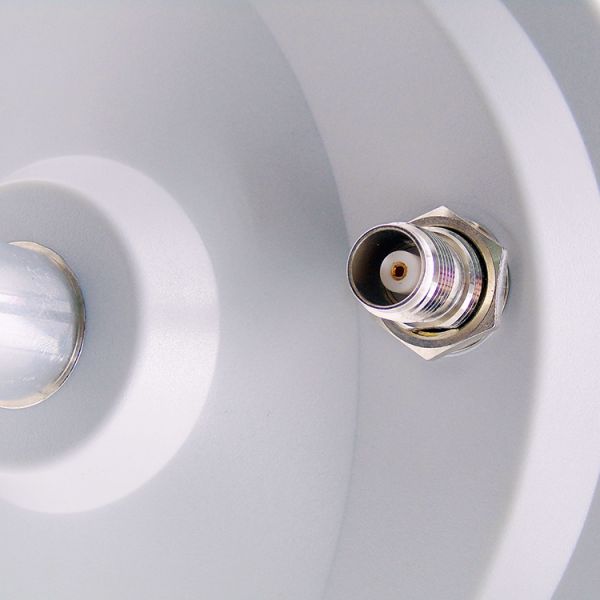

Connector
TNC ( Female)
Radome
PC+PBT
Weight
≈350g
Operating Temp
－40℃~＋85℃
Storage Temp
－45℃~＋85℃
Humidity
95% No-condensing
Waterproof
IP67
