Specifications
Brand Name :
RIDA Antennaer
Material :
FPC
Polarity :
vertical
Connector :
as requirement
LNA Gain :
35±3.0dB (Typ. @25°C)
Noise Figure :
≤1.5 dB@25°C, Typ
Supported positioning signal bands :
B1/B2; GPS:L1/L2; GLONASS:G1/G2; Galileo:El/E5b
Axial Ratio@zenith :
≤1.5dB
Certification :
ISO9001/IATF16949
Delivery Time :
10-15days
Connectivity :
SMA
Service :
OEM/ODM
Place of Origin :
Guangdong, China
VSWR :
<1.8
Model Number :
RDYLR-1
Supply Ability :
400000pcs per month
MOQ :
2
Packaging Details :
opp bag single pcs
Impendance :
50Ω
Type :
GPS/GNSS Antenna
Gain :
38±3dBi
Frequency :
1197MHz~1278MHz 1559MHz~1606MHz
Description
RTK Gnss Antenna Ubx Module Receiver Helical Spiral GPS Antenna For Uav Helix

Products Description
Light Weight IP67 High-precision Multi-band Active Helical GNSS Standard Positioning Antenna Connectivity 38dBi Gain FPC
Product Overview

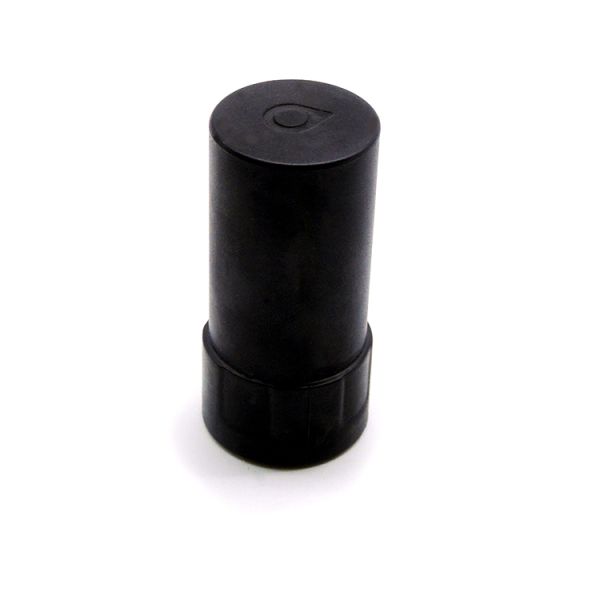

Weighing only 18g , it features a precision-tuned helical element with excellent axial ratio and operates without a ground plane,making it ideal for a variety of applications, including unmanned aerial vehicles (UAV)
Light Weight IP67 High-precision Multi-band Active Helical GNSS Standard Positioning Antenna Connectivity 38dBi Gain FPC· FEATURES
- Low weight (18g )

- Low current

- LNA gain 28 dB typ. or 35 dB typ.

- IP67 and RoHS compliant

· APPLICATIONS

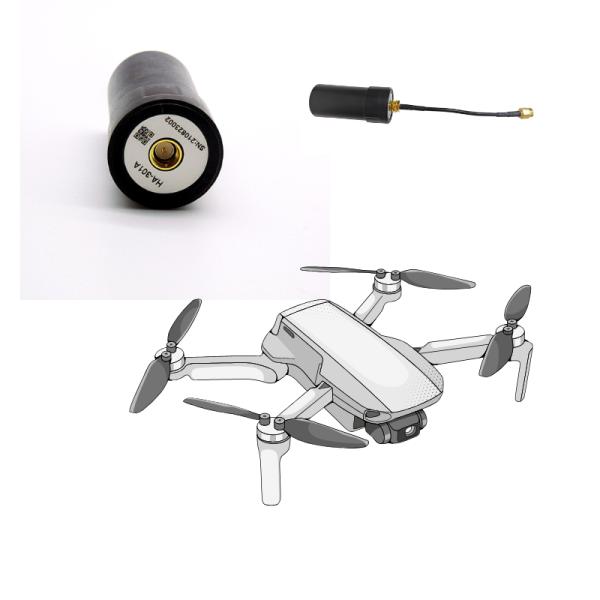

- Autonomous UAV

- Precision GNSS Positioning

- Precision Land Survey Positioning

- Fleet management and asset tracking

- Maritime and Avionics

- Law enforcement and public safety

· OPTIONS

- Antenna Performance

- Extension Cable

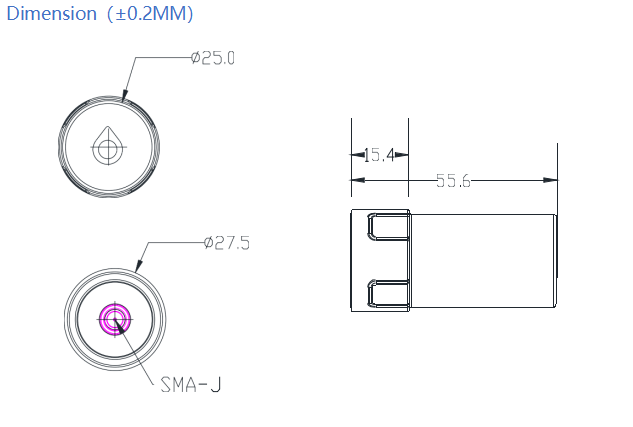

Structural Dimensions & Performance Diagrams
Light Weight IP67 High-precision Multi-band Active Helical GNSS Standard Positioning Antenna Connectivity 38dBi Gain FPC
Light Weight IP67 High-precision Multi-band Active Helical GNSS Standard Positioning Antenna Connectivity 38dBi Gain FPC
We can provide detailed test reports to ensure antenna performance. S11 reflection parameters, pointing test charts, LNA test curves, LNA gain, noise plots, etc.

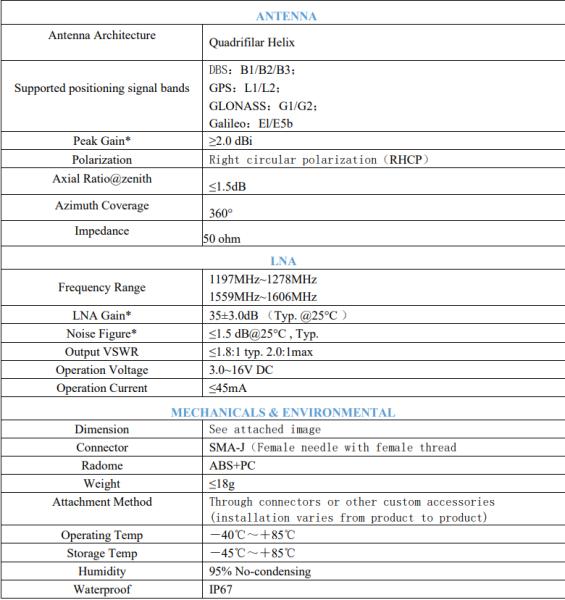

Product Parameters & Customizable Range
ANTENNA

Antenna Architecture
Quadrifilar Helix

Supported positioning signal bands
BeiDou:B1/B2/B3； GPS:L1/L2； GLONASS:G1/G2；
Galileo:El/E5b
Peak Gain*
≥2.0 dBi
Polarization
Right circular polarization(RHCP)
Axial Ratio@zenith
≤1.5dB
Azimuth Coverage
360°
Impedance
50 ohm
LNA

Frequency Range
1197MHz~1278MHz
1559MHz~1606MHz
LNA Gain*
28/35±3.0dB (Typ. @25°C )
Noise Figure*
≤1.5 dB@25°C , Typ.
Output VSWR
≤1.8:1 typ. 2.0:1max
Operation Voltage
3.0~16V DC
Operation Current
≤45mA
MECHANICALS & ENVIRONMENTAL

Dimension
See attached image
Connector
(Female needle with female thread
Radome
ABS+PC
Weight
≤18g
Attachment Method
Through connectors or other custom accessories (installation varies from product to product)
Operating Temp
－40℃～＋85℃
Storage Temp
－45℃～＋85℃
Humidity
95% No-condensing
Waterproof
IP67
