Specifications
Packaging Details :
opp bag single pcs
Supply Ability :
400000pcs per month
VSWR :
≤2
LNA Gain :
38±2dB
Type :
GPS/GNSS Antenna
Connectivity :
as requirement
Size :
67.5mm*31mm
Polarity :
vertical
Connector :
TNC or others
Operational Temperature :
-50~+85℃
Horizontal plane coverage angle :
360
Impedance: :
50Ω
Brand Name :
RIDA Antennaer
Delivery Time :
10-15days
Frequency Range :
GPS:L1/L2/L5; BDS:B1/B2/B3; GLONASS:G1/G2/G3; Galileo:El/E5a/E5b
Color :
white
MOQ :
2
Place of Origin :
Guangdong, China
Polarization :
Vertical
Model Number :
RIDA-6052 GNSS
Certification :
ISO9001/IATF16949
Material :
PC
Description
RTK GNSS GPS L1/L2/L5, BDS B1/B2/B3, GLONASS G1/G2/G3, Galileo El/E5a/E5b L-Band Antenna Customization scope:Antenna Performance, Appearance, Cable length, Connector type

Products Description

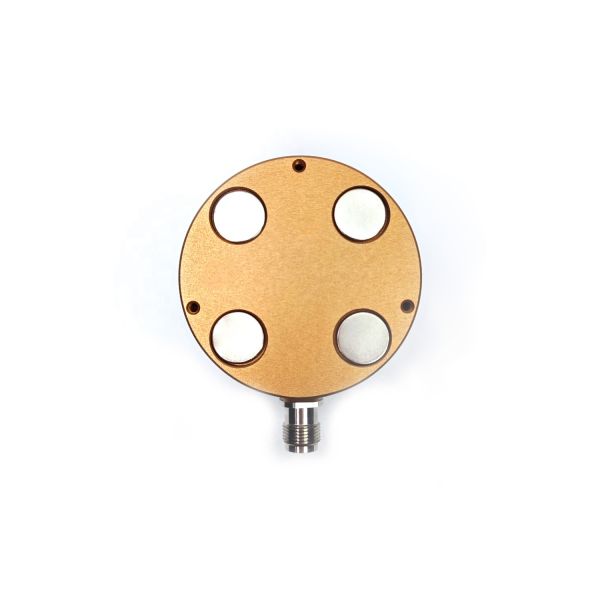

RTK GNSS GPS L1/L2/L5, BDS B1/B2/B3, GLONASS G1/G2/G3, Galileo El/E5a/E5b L-Band Antenna
Product Description
The three-system seven-frequency circular aerial antenna is a high-gain, low wind resistance type antenna.
It has the features of compact size, exquisite appearance, high sensitivity, low power consumption and high reliability, which can
effectively improve the positioning accuracy of the carrier in high speed movement.
RTK GNSS GPS L1/L2/L5, BDS B1/B2/B3, GLONASS G1/G2/G3, Galileo El/E5a/E5b L-Band Antenna
RTK GNSS GPS L1/L2/L5, BDS B1/B2/B3, GLONASS G1/G2/G3, Galileo El/E5a/E5b L-Band Antenna
Product Parameters & Customizable Range
Antenna
Frequency range
GPS:L1/L2/L5;
BDS:B1/B2/B3; GLONASS:G1/G2/G3; Galileo:El/E5a/E5b
L-Band
impedance
50Ω
Polarization
RHCP
Antenna axis ratio
≤1.5dB
Horizontal plane coverage angle
360°
Output standing wave
≤2.0
Maximum gain
4dBi
Dimension
⊘67.5mm*31mm
LNA
Gain
38±2dB
Noise factor
≤2dB
Output standing wave
≤2.0
Operating Voltage
3.3~12VDC
Operating current
≤45mA
Gain Flatness
±2dB
Working Environment
Operating temperature
-40℃~+85℃
Storage temperature
-55℃~+85℃
Humidity
95%Non-condensing
