Specifications
Frequency Range :
GPS:L1/L2/L5; BDS:B1/B2/B3; GLONASS:G1/G2/G3; Galileo:El/E5a/E5b
Operational Temperature :
-50~+85℃
Model Number :
RG02101A
Supply Ability :
400000pcs per month
Polarity :
vertical
Polarization :
Vertical
Connectivity :
as requirement
LNA Gain :
38dBi
Color :
white
Horizontal plane coverage angle :
360
Connector :
as requirement
Packaging Details :
opp bag single pcs
Dimension :
60mm*30mm
VSWR :
≤1.8
Impedance: :
50Ω
Certification :
ISO9001/IATF16949
Brand Name :
RIDA Antennaer
MOQ :
2
Place of Origin :
Guangdong, China
Material :
PET, ceramic
Delivery Time :
10-15days
Type :
GPS/GNSS Antenna
Description
Multi-star Multi-frequency Built-in RTK GNSS Ceramic Antenna GNSS GPS GLONASS BD GALILEO Antennas Customization scope:Antenna Performance, Appearance, Cable length, Connector type

Products Description

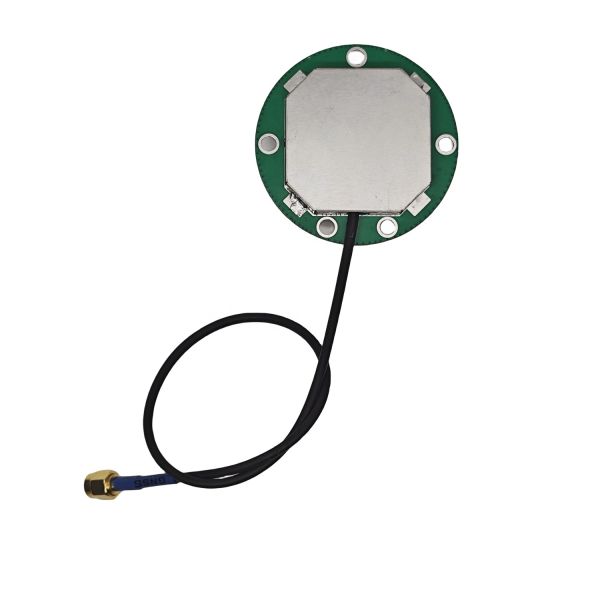

Multi-Frequency RTK GNSS GPS GLONASS BD GALILEO Built-In Ceramic with Vertical Polarization
Product Description
Compact, rugged, multi-band, high gain, suitable for many types of high-precision positioning applications, such as drones, new energy vehicles, industrial helmets, unmanned delivery vehicles, intelligent agriculture and other outdoor equipment.
It can be debugged according to customers' requirements and providing coverage for triple-band GPS-L1/L2/L5, GLONASS-G1/G2/G3, Galileo-E1/E5a/E5b, BeiDou-B1/B2/B2a, NavIC-L5, plus L-Band correction services.

· FEATURES


- Active GPS with integrated LNA

- 2G/3G/4G band support

- 2.4 GHz WiFi

- Circular polarization

- Adhesive mounting

· APPLICATIONS


- Precision GNSS Positioning

- Autonomous vehicle tracking and
guidance

- Smart Agriculture

- Law enforcement and public safety

-Tri-frequency RTK and GNSS receivers

· OPTIONS


- Cable Length

- Connector Type
Product Parameters & Customizable Range
Antenna
Frequency range
GPS-L1/L2/L5,
GLONASS-G1/G2/G3,
Galileo-E1/E5a/E5b,
BeiDou-B1/B2/B2a,
NavIC-L5, L-Band
impedance
50Ω
Polarization
RHCP
Antenna axis ratio
≤1.5dB
Horizontal plane coverage angle
360°
Output standing wave
≤2.0
Maximum gain
4dBi

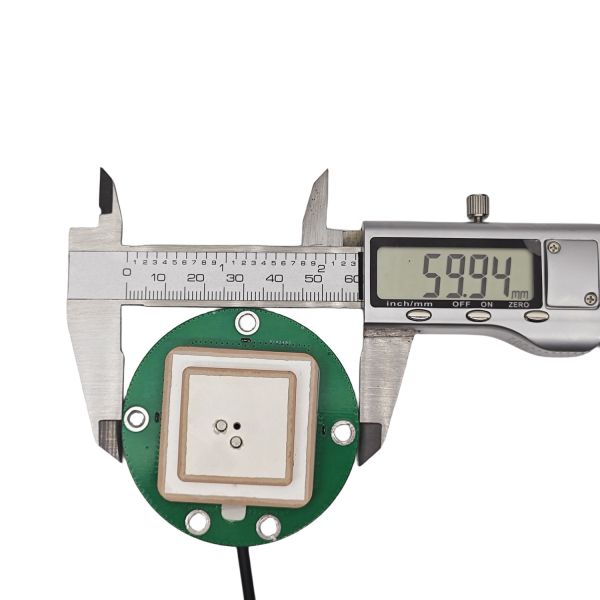

Dimension
⊘60mm*30mm
LNA
Gain
38dBi
Noise factor
≤2dB
Output standing wave
≤2.0
Operating Voltage
3.3~12VDC
Operating current
≤45mA
Gain Flatness
±2dB
Working Environment
Operating temperature
-40℃~+85℃
Storage temperature
-55℃~+85℃
Humidity
95%Non-condensing
