Helical Tri-band High Gain 35dBi Male UAV Anti-jamming IP67 Waterproof GNSS L1 L2 L5 GPS Receiver Antenna PC Material
Helical Tri-band High Gain 35dBi Male UAV Anti-jamming IP67 Waterproof GNSS L1 L2 L5 GPS Receiver Antenna PC Material
Helical Tri-band High Gain 35dBi Male UAV Anti-jamming IP67 Waterproof GNSS L1 L2 L5 GPS Receiver Antenna PC Material
Helical Tri-band High Gain 35dBi Male UAV Anti-jamming IP67 Waterproof GNSS L1 L2 L5 GPS Receiver Antenna PC Material
Helical Tri-band High Gain 35dBi Male UAV Anti-jamming IP67 Waterproof GNSS L1 L2 L5 GPS Receiver Antenna PC Material
Helical Tri-band High Gain 35dBi Male UAV Anti-jamming IP67 Waterproof GNSS L1 L2 L5 GPS Receiver Antenna PC Material
Helical Tri-band High Gain 35dBi Male UAV Anti-jamming IP67 Waterproof GNSS L1 L2 L5 GPS Receiver Antenna PC Material
Helical Tri-band High Gain 35dBi Male UAV Anti-jamming IP67 Waterproof GNSS L1 L2 L5 GPS Receiver Antenna PC Material
Helical Tri-band High Gain 35dBi Male UAV Anti-jamming IP67 Waterproof GNSS L1 L2 L5 GPS Receiver Antenna PC Material
Helical Tri-band High Gain 35dBi Male UAV Anti-jamming IP67 Waterproof GNSS L1 L2 L5 GPS Receiver Antenna PC Material
Specifications
Certification :
ISO9001/IATF16949
Connectivity :
as requirement
Frequency Range (MHZ) :
1164-1278 & 1525-1615 MHZ
VSWR :
<1.8
Connector type :
Male
Polarization :
RHCP
Place of Origin :
Guangdong, China
MOQ :
2
Material :
PC
Type :
GPS/GNSS Antenna
LNA Gain :
35±2dBi
Service :
OEM/ODM
Impendance :
50Ω
Weight :
29g
Brand Name :
RIDA Antennaer
Model Number :
RDYLR-1
Packaging Details :
opp bag single pcs
Polarity :
vertical
Dimension :
41.5*42mm
Supply Ability :
400000pcs per month
Delivery Time :
10-15days
Description

Products Description

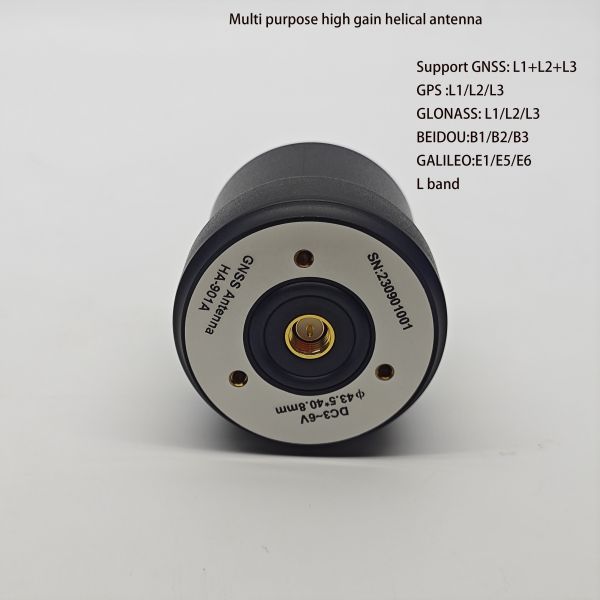

helical antenna Tri-band high gain RTK Module Antenna UAV anti-jamming IP67 waterproof GNSS L1 L2 L5 GPS receiver antenna

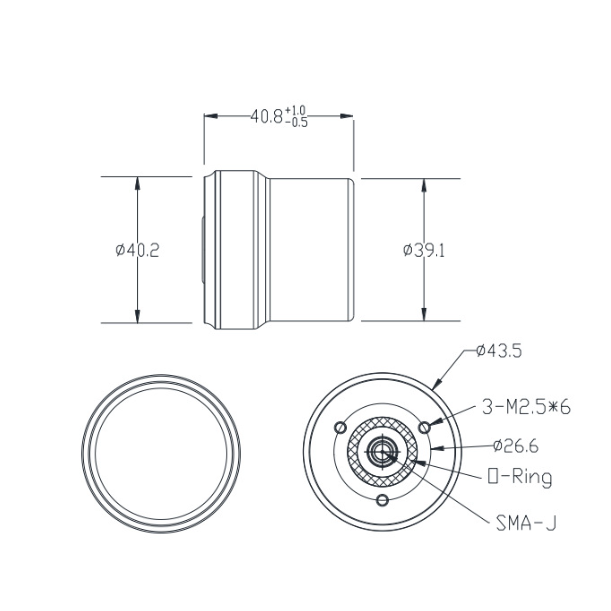

Helical Tri-band High Gain 35dBi Male UAV Anti-jamming IP67 Waterproof GNSS L1 L2 L5 GPS Receiver Antenna PC MaterialStructural Dimensions & Performance Diagrams
Helical Tri-band High Gain 35dBi Male UAV Anti-jamming IP67 Waterproof GNSS L1 L2 L5 GPS Receiver Antenna PC Material
Helical Tri-band High Gain 35dBi Male UAV Anti-jamming IP67 Waterproof GNSS L1 L2 L5 GPS Receiver Antenna PC Material
Product Parameters & Customizable Range
ANTENNA

Antenna Architecture
Quadrifilar Helix

Supported positioning signal bands
GPS: L1/L2/L5
GLONASS: L1/L2/L3
BDS: B1/B2/B3
Galileo: E1/E5/E6 L-band
Peak Gain*
≥2.0 dBi
Polarization
Right circular polarization(RHCP)
Axial Ratio@zenith
≤1.5dB
Azimuth Coverage
360°
Impedance
50 ohm
LNA

Frequency Range
1164-1278 MHZ
1525-1615 MHZ
LNA Gain*
35±3.0dB (Typ. @25°C )
Noise Figure*
≤1.5 dB@25°C , Typ.
Output VSWR
≤1.8:1 typ. 2.0:1max
Operation Voltage
3.0~16V DC
Operation Current
≤45mA
MECHANICALS & ENVIRONMENTAL

Dimension
Φ39.1 * Φ40.2 * 40.8
Connector
SMA-Male
Radome
ABS+PC
Weight
≤18g
Attachment Method
Through connectors or other custom accessories (installation varies from product to product)
Operating Temp
－40℃～＋85℃
Storage Temp
－45℃～＋85℃
Humidity
95% No-condensing
Waterproof
IP67
