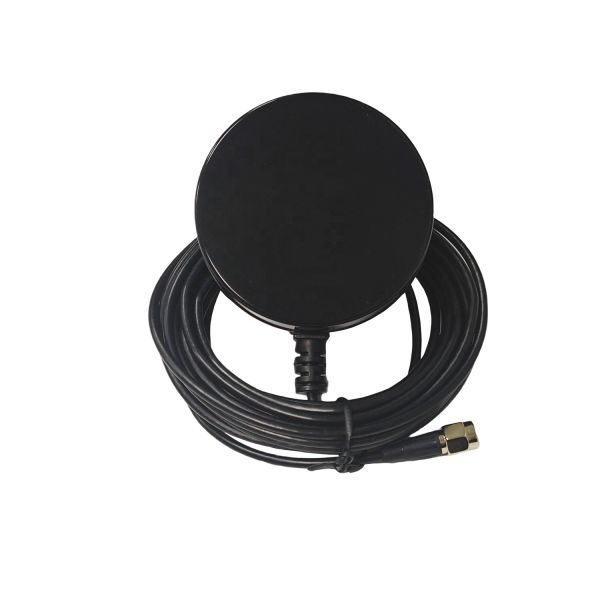

40dbi L1 L2 L5 High Accuracy GNSS GPS Active Antenna Dual Band RTK IP67 3 Meters Cable Customized Connector Antena
40dbi L1 L2 L5 High Accuracy GNSS GPS Active Antenna Dual Band RTK IP67 3 Meters Cable Customized Connector Antena
40dbi L1 L2 L5 High Accuracy GNSS GPS Active Antenna Dual Band RTK IP67 3 Meters Cable Customized Connector Antena
40dbi L1 L2 L5 High Accuracy GNSS GPS Active Antenna Dual Band RTK IP67 3 Meters Cable Customized Connector Antena
40dbi L1 L2 L5 High Accuracy GNSS GPS Active Antenna Dual Band RTK IP67 3 Meters Cable Customized Connector Antena
40dbi L1 L2 L5 High Accuracy GNSS GPS Active Antenna Dual Band RTK IP67 3 Meters Cable Customized Connector Antena
40dbi L1 L2 L5 High Accuracy GNSS GPS Active Antenna Dual Band RTK IP67 3 Meters Cable Customized Connector Antena
40dbi L1 L2 L5 High Accuracy GNSS GPS Active Antenna Dual Band RTK IP67 3 Meters Cable Customized Connector Antena
40dbi L1 L2 L5 High Accuracy GNSS GPS Active Antenna Dual Band RTK IP67 3 Meters Cable Customized Connector Antena
40dbi L1 L2 L5 High Accuracy GNSS GPS Active Antenna Dual Band RTK IP67 3 Meters Cable Customized Connector Antena
40dbi L1 L2 L5 High Accuracy GNSS GPS Active Antenna Dual Band RTK IP67 3 Meters Cable Customized Connector Antena
40dbi L1 L2 L5 High Accuracy GNSS GPS Active Antenna Dual Band RTK IP67 3 Meters Cable Customized Connector Antena
Specifications
MOQ :
1
Axial Ratio(min) :
<3
LNA Gain :
40±2dB
Connectivity :
as requirement
Noise Figure :
<1.5
Polarization :
RHCP
Price :
$15-20
Model Number :
RDYLC-1
Connector :
as requirement
Supply Voltage :
DC3.3-5.0V
Place of Origin :
Guangdong, China
Service :
OEM/ODM
Impedance :
50Ω
Brand Name :
RIDA Antennaer
Polarity :
vertical
Material :
PC
VSWR :
<1.8
Type :
GPS/GNSS Antenna
Description
Products Description
40dbi L1 L2 L5 High Accuracy GNSS GPS Active Antenna Dual Band RTK IP67 3 Meters Cable Customized Connector Antena

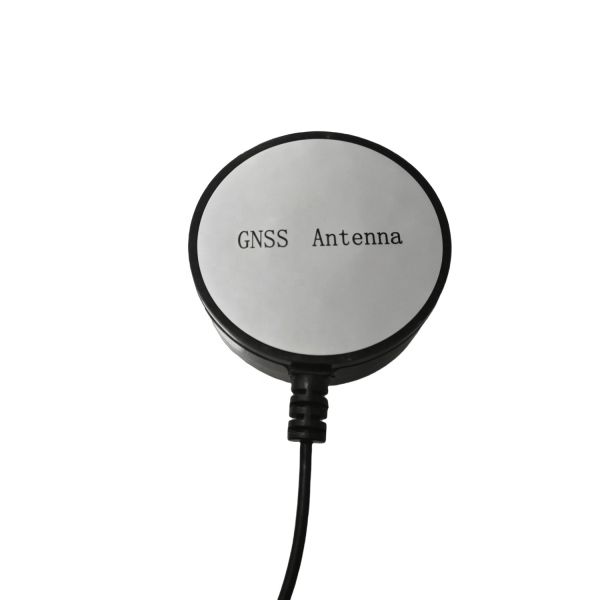

GNSS Antenna

GNSS antenna, using stacked design, support BeiDou II, GPS, GLONASS and GALILEO system satellite navigation signal reception. Built-in low-noise amplifier, multi-stage filter, good out-of-band rejection, anti-interference capability. Multi-stage filter, good out-of-band suppression, strong anti-interference ability, to ensure normal work in the harsh electromagnetic environment. It meets the current demand for multi-system compatibility and high-precision measurement.
40dbi L1 L2 L5 High Accuracy GNSS GPS Active Antenna Dual Band RTK IP67 3 Meters Cable Customized Connector Antena
40dbi L1 L2 L5 High Accuracy GNSS GPS Active Antenna Dual Band RTK IP67 3 Meters Cable Customized Connector Antena

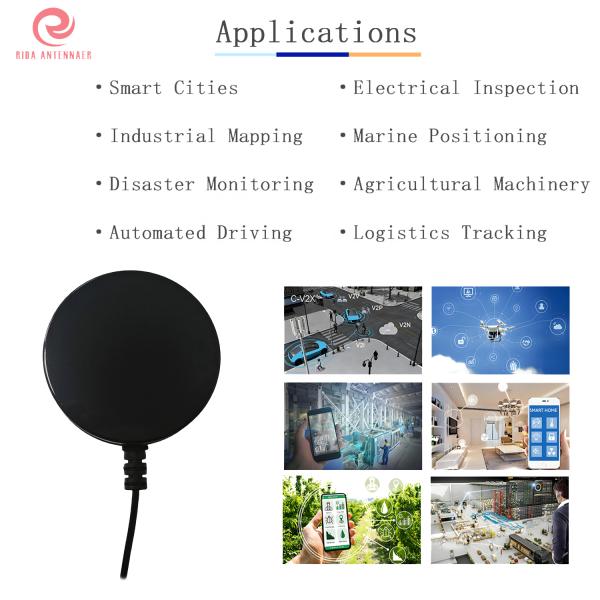

Applications

-Smart Cities
- Industrial Mapping
- Disaster Monitoring
- Automated driving
- Electrical inspection
- Marine Positioning - Agricultural Machinery - Logistics Tracking
40dbi L1 L2 L5 High Accuracy GNSS GPS Active Antenna Dual Band RTK IP67 3 Meters Cable Customized Connector Antena

KEY FEATURES

- Adopt single feed point technology design, ensure the
right circular polarization and phase center performance,
reduce the impact of measurement error; - Antenna unit with high passive gain and wide directional
map beam, ensuring the reception of low elevation angle
signals; - Built-in filtering, low noise figure and strong
anti-interference capability; - IP67 protection for the antenna to work in the field for a
long time provides a guarantee.
Structural Dimensions & Performance Diagrams
40dbi L1 L2 L5 High Accuracy GNSS GPS Active Antenna Dual Band RTK IP67 3 Meters Cable Customized Connector Antena
40dbi L1 L2 L5 High Accuracy GNSS GPS Active Antenna Dual Band RTK IP67 3 Meters Cable Customized Connector Antena
( Accept OEM/ODM)
Product Parameters & Customizable Range
ANTENNA

Patch Architecture
Dual Feed, Dual Stacked Patch


Supported positioning signal bands
GPS: L1/L5; BDS: B1/B2a; Galileo: E5a/E5b






Peak Gain*
≥4.0dBi@Fc, with100mmgroundplane
Polarization
Right circular polarization (RHCP)
VSWR
< 2
Azimuth Coverage
360°
Impedance
50 Ω
LNA

Frequency Range
1164MHz~1217MHz,1559MHz~1605MHz;

1559MHz~1605MHz
LNA Gain*
40±2.0dB (Typ. @25°C) / 28±2.0dB(Typ.@25°C)
Noise Figure*
≤2.0dB@25°C,Typ
Output VSWR
≤ 1.8:1 typ. 2.0:1max
Operation Voltage
3.3VDC
Operation Current
≤25mA
MECHANICALS & ENVIRONMENTAL



Dimension
Ø66mm*25mm
Connector
as requirement
Radome
ABS+PC
Weight
≈115g
Attachment Method
3M Adhesive or magnetic
Operating Temp
－40℃~＋85℃
Storage Temp
－45℃~＋85℃
Humidity
95% No-condensing
Waterproof
IP67
