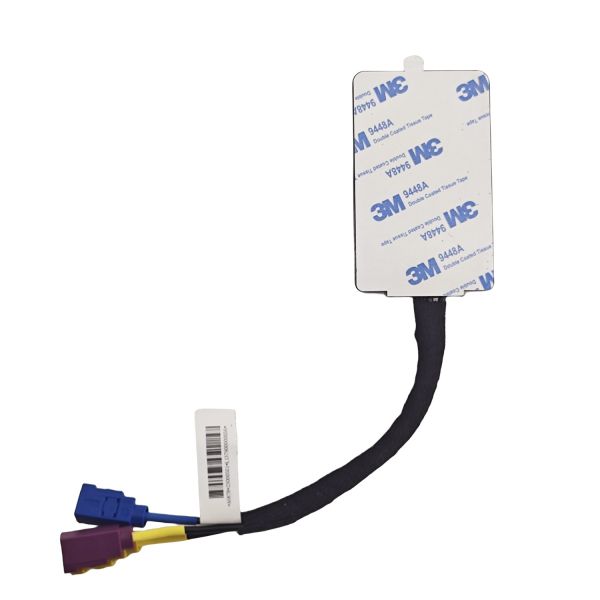

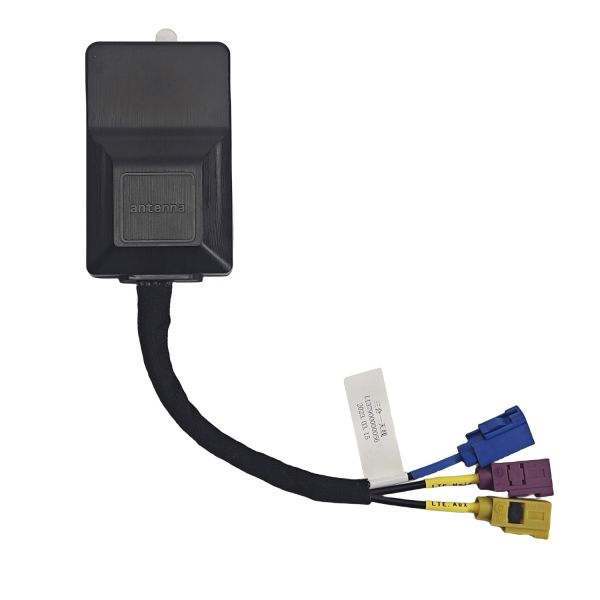

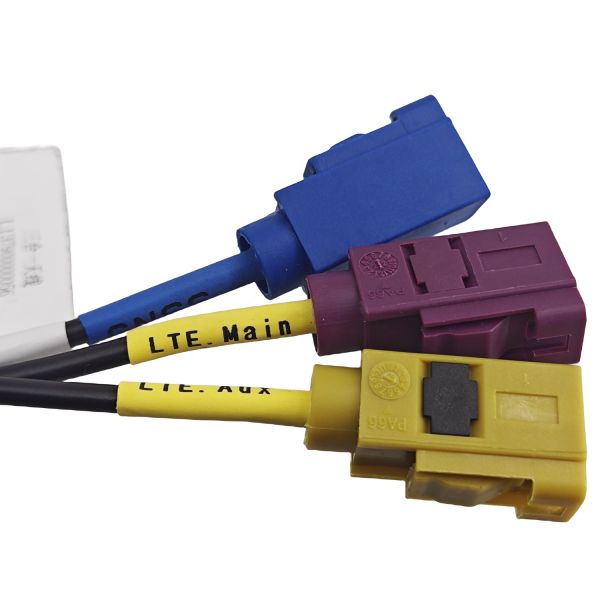

3in1 Combination Antenna for Vehicles 2.4G 5.8G 698-2700Mhz 1575.42Mhz GPS GNSS 4G LTE WIFI MIMO Car T-BOX Antenna
3in1 Combination Antenna for Vehicles 2.4G 5.8G 698-2700Mhz 1575.42Mhz GPS GNSS 4G LTE WIFI MIMO Car T-BOX Antenna
3in1 Combination Antenna for Vehicles 2.4G 5.8G 698-2700Mhz 1575.42Mhz GPS GNSS 4G LTE WIFI MIMO Car T-BOX Antenna
3in1 Combination Antenna for Vehicles 2.4G 5.8G 698-2700Mhz 1575.42Mhz GPS GNSS 4G LTE WIFI MIMO Car T-BOX Antenna
3in1 Combination Antenna for Vehicles 2.4G 5.8G 698-2700Mhz 1575.42Mhz GPS GNSS 4G LTE WIFI MIMO Car T-BOX Antenna
3in1 Combination Antenna for Vehicles 2.4G 5.8G 698-2700Mhz 1575.42Mhz GPS GNSS 4G LTE WIFI MIMO Car T-BOX Antenna
3in1 Combination Antenna for Vehicles 2.4G 5.8G 698-2700Mhz 1575.42Mhz GPS GNSS 4G LTE WIFI MIMO Car T-BOX Antenna
3in1 Combination Antenna for Vehicles 2.4G 5.8G 698-2700Mhz 1575.42Mhz GPS GNSS 4G LTE WIFI MIMO Car T-BOX Antenna
Specifications
Type :
GPS/GNSS Antenna
Impedance :
50Ω
LNA Gain :
28dBi
Certification :
ISO9001/IATF16949
Connector :
Fakra or Customized
Model Number :
RDYLC-1
VSWR :
<1.5
Frequency :
GPS GLONASS BEIDOU 4G 5G WIFI
Service :
OEM/ODM
MOQ :
2
Price :
€4.29-5.16
Place of Origin :
Guangdong, China
Brand Name :
RIDA Antennaer
Description
2.4G 5.8G 698-2700Mhz 1575.42Mhz GPS GNSS 4G LTE WIFI MIMO Combo Vehicle Antenna Car T-BOX 3in1 Combination Antenna Customization scope:Antenna Performance,Appearance style, Cable length, Connector type

Products Description
3in1 Combination Antenna for Vehicles 2.4G 5.8G 698-2700Mhz 1575.42Mhz GPS GNSS 4G LTE WIFI MIMO Car T-BOX Antenna
3in1 Combination Antenna for Vehicles 2.4G 5.8G 698-2700Mhz 1575.42Mhz GPS GNSS 4G LTE WIFI MIMO Car T-BOX Antenna
GPS / LTE / WIFI 3 IN 1 ANTENNA

Center Frequency
1575.42MHz±3 MHz
V.S.W.R
<1.5
Band Width
±5 MHz
Attenuation
fo±100MHz>30dB
Impendence
50 Ω
Peak Gain
>3dBic, Based on 7×7cm ground plane
Gain Coverage
>-4dBic at –90°<0<+90°(over 75% Volume)
Polarization
Right-handed Circular(RHCP)
GPS LNA Specifications

LNA Gain(Without cable)
28dBi
Noise Figure
1.5dB
V.S.W.R
<1.65
DC Voltage
2.7V-5.0V±0.5V
DC current
15mA Max(5V DC)
LTE Specifications

Frequency Range
698-2700MHz
V.S.W.R
<1.5
Band Width
±90/280 MHz
Gain
3.0dBi
Polarization
Vertical
Radiation
Omni directional
Max Input power(W)
50 W
Impendence
50 Ω
WIFI specifications

Frequency Range
2300-2500MHZ
V.S.W.R
1.5:1
Band Width
±100 MHz
Gain
2.15dBi
Polarization
Vertical
Radiation
Omni directional
Max Input power(W)
50 W
Impendence
50 Ω
