Specifications
Certification :
ISO9001/IATF16949
Connectivity :
as requirement
Frequency Range :
GPS:L1/L2/L5; BDS:B1/B2/B3; GLONASS:G1/G2/G3; Galileo:El/E5a/E5b
Operational Temperature :
-50~+85℃
VSWR :
≤1.8
Impedance: :
50Ω
Packaging Details :
opp bag single pcs
Dimension :
60mm*30mm
Model Number :
RIDA-6060-GNSS
Supply Ability :
400000pcs per month
LNA Gain :
38dBi
Color :
white
Polarization :
Vertical
Horizontal plane coverage angle :
360
Connector :
as requirement
Brand Name :
RIDA Antennaer
MOQ :
2
Polarity :
vertical
Place of Origin :
Guangdong, China
Material :
PET, ceramic
Delivery Time :
10-15days
Type :
GPS/GNSS Antenna
Description

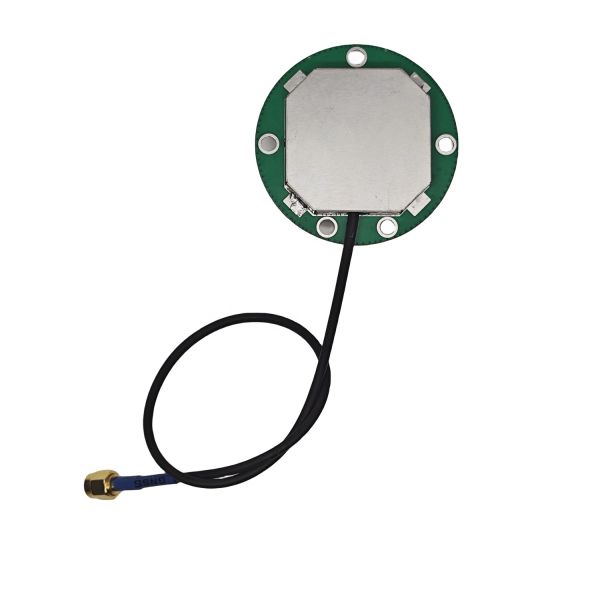

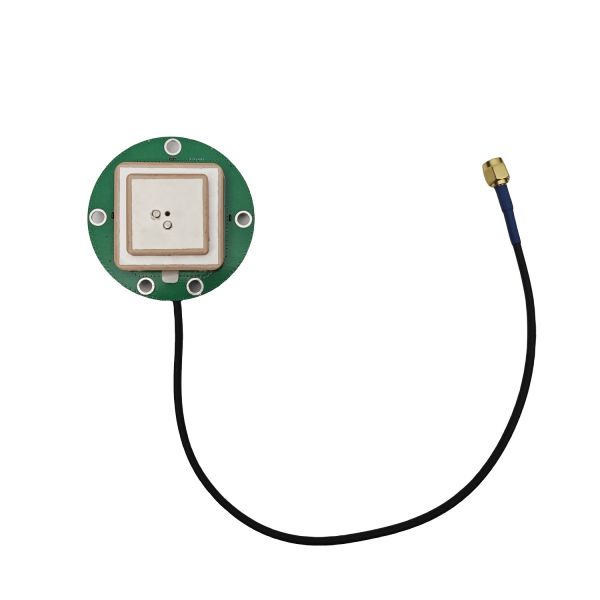

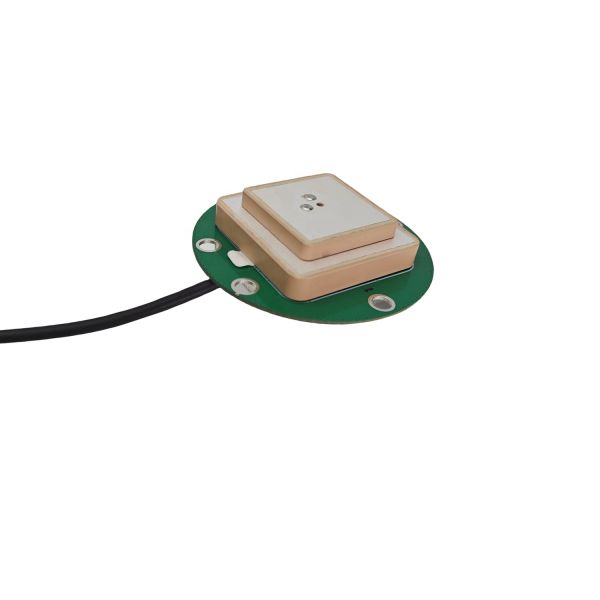

Multi-star Multi-frequency Built-in RTK GNSS Ceramic Antenna GNSS GPS GLONASS BD GALILEO Antennas Customization scope:Antenna Performance, Appearance, Cable length, Connector type

Products Description
High Precises Multi-Star Antennas Multi-Frequency RTK GNSS GPS GLONASS BD GALILEO Built-In Ceramic with Vertical Polarization
Product Description
Compact, rugged, multi-band, high gain, suitable for many types of high-precision positioning applications, such as drones, new energy vehicles, industrial helmets, unmanned delivery vehicles, intelligent agriculture and other outdoor equipment.
It can be debugged according to customers' requirements and providing coverage for triple-band GPS-L1/L2/L5, GLONASS-G1/G2/G3, Galileo-E1/E5a/E5b, BeiDou-B1/B2/B2a, NavIC-L5, plus L-Band correction services.

· FEATURES


- Active GPS with integrated LNA

- 2G/3G/4G band support

- 2.4 GHz WiFi

- Circular polarization

- Adhesive mounting

· APPLICATIONS


- Precision GNSS Positioning

- Autonomous vehicle tracking and
guidance

- Smart Agriculture

- Law enforcement and public safety

-Tri-frequency RTK and GNSS receivers

· OPTIONS


- Cable Length

- Connector Type
Product Parameters & Customizable Range
Antenna
Frequency range
GPS-L1/L2/L5,
GLONASS-G1/G2/G3,
Galileo-E1/E5a/E5b,
BeiDou-B1/B2/B2a,
NavIC-L5, L-Band
impedance
50Ω
Polarization
RHCP
Antenna axis ratio
≤1.5dB
Horizontal plane coverage angle
360°
Output standing wave
≤2.0
Maximum gain
4dBi
Dimension
⊘60mm*30mm
LNA
Gain
38dBi
Noise factor
≤2dB
Output standing wave
≤2.0
Operating Voltage
3.3~12VDC
Operating current
≤45mA
Gain Flatness
±2dB
Working Environment
Operating temperature
-40℃~+85℃
Storage temperature
-55℃~+85℃
Humidity
95%Non-condensing
