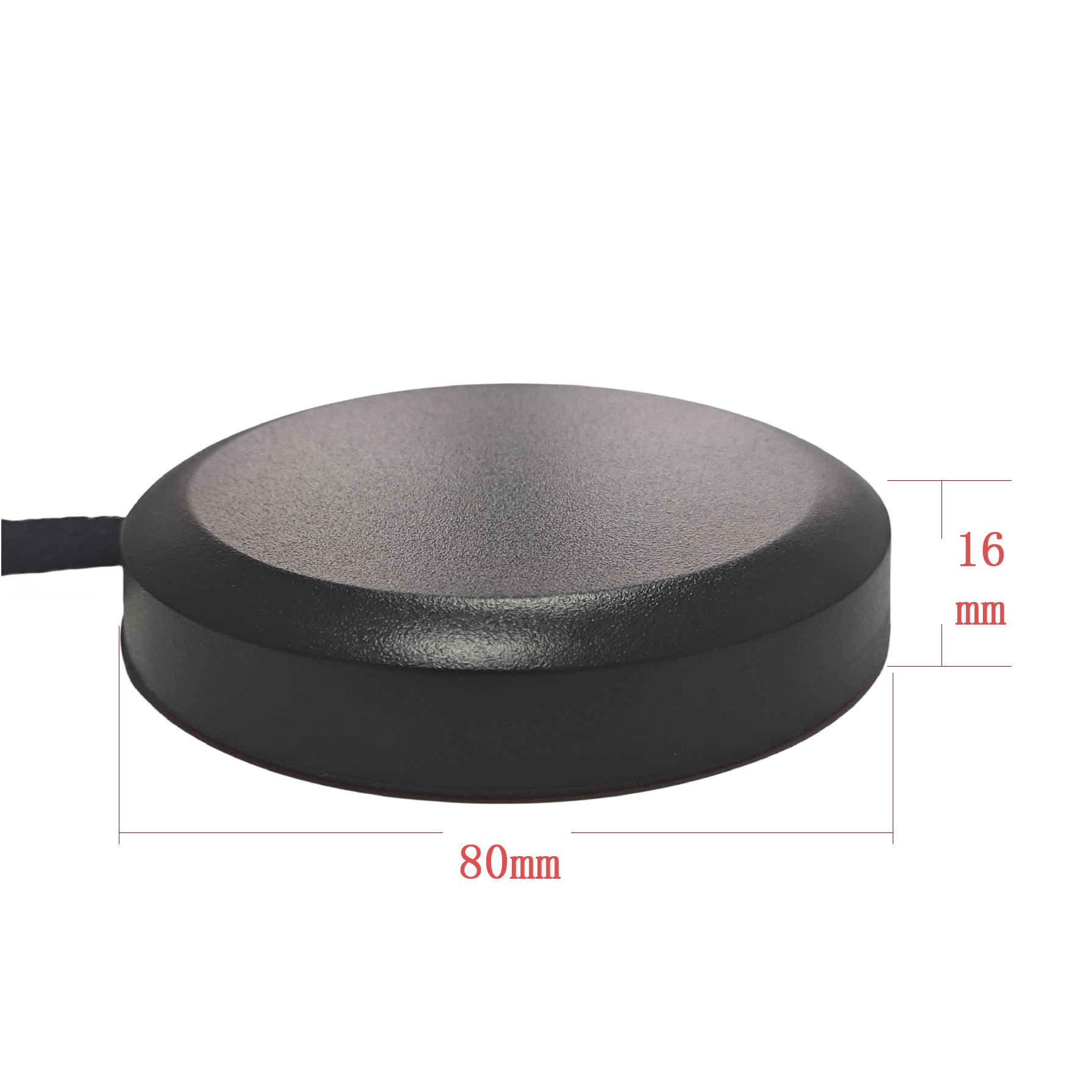

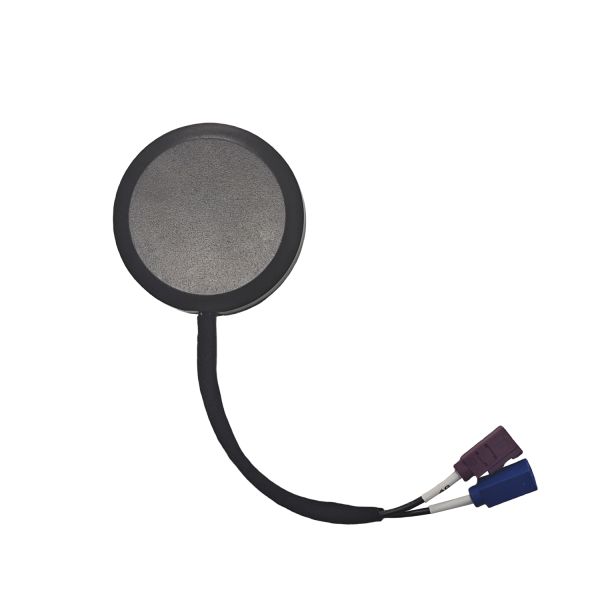

Multi-Band GNSS + 4G WIFI Antenna for Smart Cockpit & Telematics-Supports GPS/BeiDou/Galileo & C-V2X 28dBi Gain IP67 Rated
Multi-Band GNSS + 4G WIFI Antenna for Smart Cockpit & Telematics-Supports GPS/BeiDou/Galileo & C-V2X 28dBi Gain IP67 Rated
Multi-Band GNSS + 4G WIFI Antenna for Smart Cockpit & Telematics-Supports GPS/BeiDou/Galileo & C-V2X 28dBi Gain IP67 Rated
Multi-Band GNSS + 4G WIFI Antenna for Smart Cockpit & Telematics-Supports GPS/BeiDou/Galileo & C-V2X 28dBi Gain IP67 Rated
Multi-Band GNSS + 4G WIFI Antenna for Smart Cockpit & Telematics-Supports GPS/BeiDou/Galileo & C-V2X 28dBi Gain IP67 Rated
Multi-Band GNSS + 4G WIFI Antenna for Smart Cockpit & Telematics-Supports GPS/BeiDou/Galileo & C-V2X 28dBi Gain IP67 Rated
Multi-Band GNSS + 4G WIFI Antenna for Smart Cockpit & Telematics-Supports GPS/BeiDou/Galileo & C-V2X 28dBi Gain IP67 Rated
Multi-Band GNSS + 4G WIFI Antenna for Smart Cockpit & Telematics-Supports GPS/BeiDou/Galileo & C-V2X 28dBi Gain IP67 Rated
Multi-Band GNSS + 4G WIFI Antenna for Smart Cockpit & Telematics-Supports GPS/BeiDou/Galileo & C-V2X 28dBi Gain IP67 Rated
Multi-Band GNSS + 4G WIFI Antenna for Smart Cockpit & Telematics-Supports GPS/BeiDou/Galileo & C-V2X 28dBi Gain IP67 Rated
Multi-Band GNSS + 4G WIFI Antenna for Smart Cockpit & Telematics-Supports GPS/BeiDou/Galileo & C-V2X 28dBi Gain IP67 Rated
Multi-Band GNSS + 4G WIFI Antenna for Smart Cockpit & Telematics-Supports GPS/BeiDou/Galileo & C-V2X 28dBi Gain IP67 Rated
Specifications
MOQ :
10
Gain :
28dBi
Applicable models :
All Car
Connector :
SMA or FAKRA or others
Cable :
RG174
Price :
$3.50-5
Frequency :
1575±1Mhz/698~2700MHZ
Type :
GPS/GNSS Antenna
VSWR :
<2.0
Cable Length :
3000mm or Customizable
Model Number :
RDYLG-80
Place of Origin :
Guangdong, China
IP Rank :
IP67
Brand Name :
RIDA Antennaer
Description
Products Description
Multi-Band GNSS + 4G WIFI Antenna for Smart Cockpit & Telematics-Supports GPS/BeiDou/Galileo & C-V2X 28dBi Gain IP67 Rated
Multi-Band GNSS + 4G WIFI Antenna for Smart Cockpit & Telematics-Supports GPS/BeiDou/Galileo & C-V2X 28dBi Gain IP67 Rated

· FEATURES

- Active GPS with integrated LNA

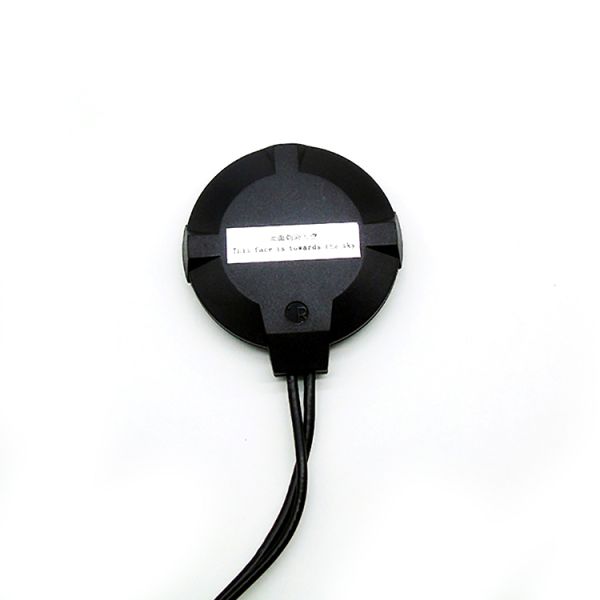

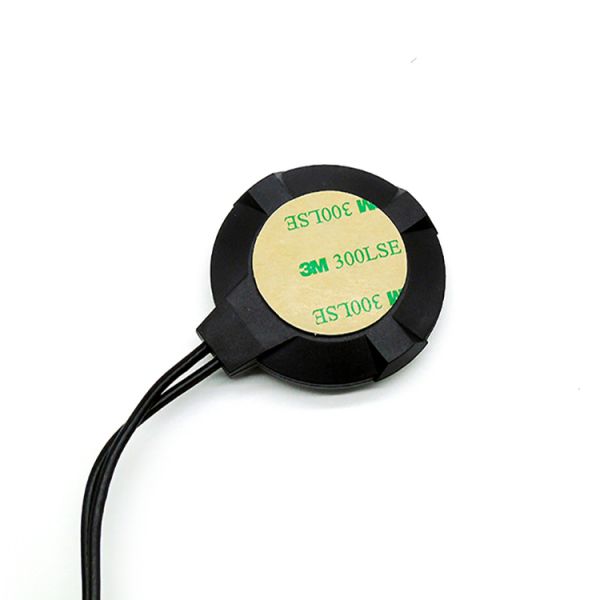

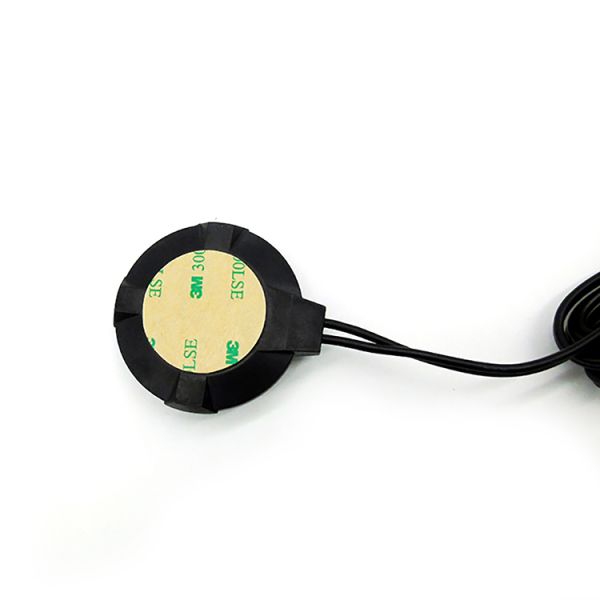

- 2G/3G/4G band support - Circular polarization - Adhesive or Magnetic mounting

· APPLICATIONS

- Telematics
- Smart meter
- Transportation
- Remote monitoring
- IoT
- M2M

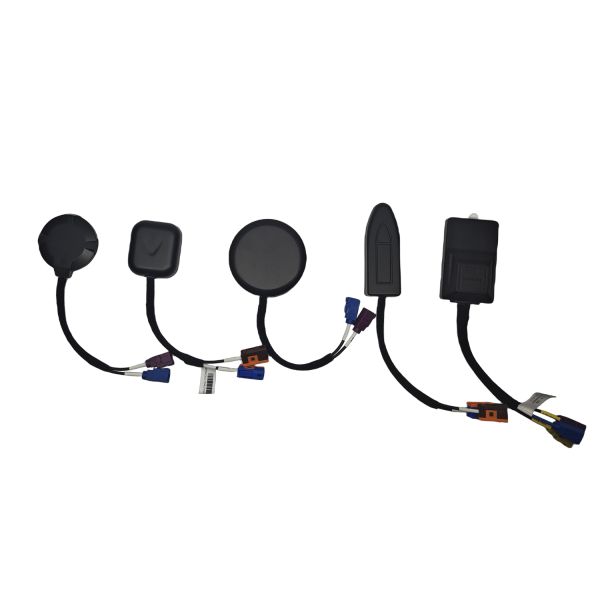

· OPTIONS

- Combined function type
- Cable Length
- Connectors
Multi-Band GNSS + 4G WIFI Antenna for Smart Cockpit & Telematics-Supports GPS/BeiDou/Galileo & C-V2X 28dBi Gain IP67 Rated
Product Parameters
GPS Antenna
Dielectric
Antenna
Center Frequency
1575.42±1MHz
Band Width
CF±5MHz
Polarization
RHCP
Gain
2dBic
V.S.W.R
<1.5
Impendance
50Ω
Axial Ratio
3dB
LNA
Gain
28±2dB
Noise Figure
<1.5
Ex-band Attenuation
12dB@CF+50MHz/16dB@CF-50MHz
V.S.W.R
<2
Supply Voltage
2.2~5V DC
Current Consumption
5~15mA
LTE Antenna
Frequency Range
698 ~ 960 / 1710 ~ 2700MHz
V.S.W.R
<2
Polarization
Linear
Gain
3 dBi
Impendance
50Ω
Mechanical
Cable
RG174
Connector
FAKRA/SMA/MCX/ or others
Material
ABS
Mounting Method
Magnetic/Adhesive
Environmental
Operating Temperature
-40℃~+85℃
Relative Humidity
Up to 95%
Ingress Protection
IP65~IP67 (exclude cable outlet)
Vibration
10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly
ROHS Compliant
Multi-Band GNSS + 4G WIFI Antenna for Smart Cockpit & Telematics-Supports GPS/BeiDou/Galileo & C-V2X 28dBi Gain IP67 Rated
Company Profile
Multi-Band GNSS + 4G WIFI Antenna for Smart Cockpit & Telematics-Supports GPS/BeiDou/Galileo & C-V2X 28dBi Gain IP67 Rated
Multi-Band GNSS + 4G WIFI Antenna for Smart Cockpit & Telematics-Supports GPS/BeiDou/Galileo & C-V2X 28dBi Gain IP67 Rated
More Product
Multi-Band GNSS + 4G WIFI Antenna for Smart Cockpit & Telematics-Supports GPS/BeiDou/Galileo & C-V2X 28dBi Gain IP67 Rated
Multi-Band GNSS + 4G WIFI Antenna for Smart Cockpit & Telematics-Supports GPS/BeiDou/Galileo & C-V2X 28dBi Gain IP67 Rated
FAQ
Q1: Can I get one sample?
A: Yes, If the product is in-stock, it is free.

Q2: Are you a manufacturer or a trading company?
A: We are an antenna manufacturer with a RF antenna laboratory and production plant, executing everything from R&D to production to sales on our own.

Q3: Can we customize our products?
A: Yes, We can provide OEM & ODM services.

Q4: What's your delivery time?
A: If the finished product will be sent out within 3 working days. Customized will take 5-30 working days

Q5: Are all your antennas in stock? A: Not all antennas are in stock, please contact us for details.

Q6: How long is your after-sales service?
A: We provide one year quality warranty.
