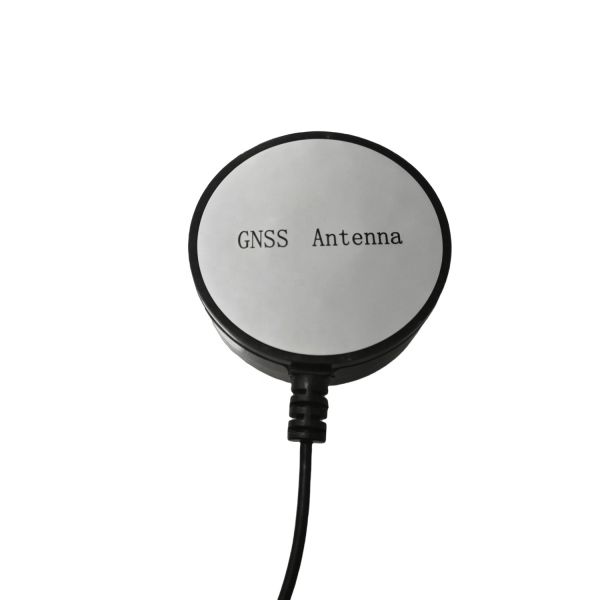

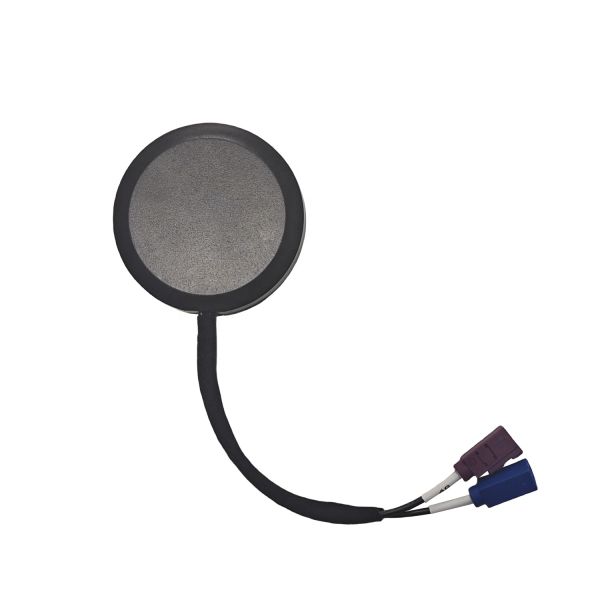

Fakra Connector Dual GPS 4G/3G Antenna Combo IP67 Magnet Adhesive Mount 700-2700 MHz Combination Antenna GNSS & GPS Antennas
Fakra Connector Dual GPS 4G/3G Antenna Combo IP67 Magnet Adhesive Mount 700-2700 MHz Combination Antenna GNSS & GPS Antennas
Fakra Connector Dual GPS 4G/3G Antenna Combo IP67 Magnet Adhesive Mount 700-2700 MHz Combination Antenna GNSS & GPS Antennas
Fakra Connector Dual GPS 4G/3G Antenna Combo IP67 Magnet Adhesive Mount 700-2700 MHz Combination Antenna GNSS & GPS Antennas
Fakra Connector Dual GPS 4G/3G Antenna Combo IP67 Magnet Adhesive Mount 700-2700 MHz Combination Antenna GNSS & GPS Antennas
Fakra Connector Dual GPS 4G/3G Antenna Combo IP67 Magnet Adhesive Mount 700-2700 MHz Combination Antenna GNSS & GPS Antennas
Fakra Connector Dual GPS 4G/3G Antenna Combo IP67 Magnet Adhesive Mount 700-2700 MHz Combination Antenna GNSS & GPS Antennas
Fakra Connector Dual GPS 4G/3G Antenna Combo IP67 Magnet Adhesive Mount 700-2700 MHz Combination Antenna GNSS & GPS Antennas
Fakra Connector Dual GPS 4G/3G Antenna Combo IP67 Magnet Adhesive Mount 700-2700 MHz Combination Antenna GNSS & GPS Antennas
Fakra Connector Dual GPS 4G/3G Antenna Combo IP67 Magnet Adhesive Mount 700-2700 MHz Combination Antenna GNSS & GPS Antennas
Specifications
VSWR :
<2.0
Cable Length :
3000mm or Customizable
Price :
USD3-USD5
Payment Terms :
T/T
Gain :
28dBi
Model Number :
RDYLG-80
Frequency :
1575±1Mhz/698~2700MHZ
Place of Origin :
Guangdong, China
Certification :
ISO9001/IATF16949
Supply Ability :
400000pcs per month
Brand Name :
RIDA Antennaer
MOQ :
10
Type :
GPS/GNSS Antenna
Delivery Time :
10-15days
Connector :
SMA or FAKRA or others
Cable :
RG174
Applicable models :
All Car
IP Rank :
IP67
Description

Products Description
Fakra Connector Dual GPS 4G/3G Antenna Combo IP67 Magnet Adhesive Mount 700-2700 MHz Combination Antenna GNSS & GPS Antennas· FEATURES
- Active GPS with integrated LNA
- 2G/3G/4G band support - Circular polarization - Adhesive or Magnetic mounting

· APPLICATIONS

- Telematics
- Smart meter
- Transportation
- Remote monitoring
- IoT
- M2M

· OPTIONS

- Combined function type
- Cable Length
- Connectors
Fakra Connector Dual GPS 4G/3G Antenna Combo IP67 Magnet Adhesive Mount 700-2700 MHz Combination Antenna GNSS & GPS Antennas
Product Parameters
GPS Antenna
Dielectric
Antenna
Center Frequency
1575.42±1MHz


Band Width
CF±5MHz


Polarization
RHCP


Gain
2dBic


V.S.W.R
<1.5


Impendance
50Ω


Axial Ratio
3dB

LNA
Gain
28±2dB


Noise Figure
<1.5


Ex-band Attenuation
12dB@CF+50MHz/16dB@CF-50MHz


V.S.W.R
<2


Supply Voltage
2.2~5V DC


Current Consumption
5~15mA
LTE Antenna

Frequency Range
698 ~ 960 / 1710 ~ 2700MHz


V.S.W.R
<2


Polarization
Linear


Gain
3 dBi


Impendance
50Ω
Mechanical

Cable
RG174


Connector
FAKRA/SMA/MCX/ or others


Material
ABS


Mounting Method
Magnetic/Adhesive
Environmental

Operating Temperature
-40℃~+85℃


Relative Humidity
Up to 95%


Ingress Protection
IP65~IP67 (exclude cable outlet)


Vibration
10 to 55Hz with 1.5mm amplitude 2hours


Environmentally Friendly
ROHS Compliant
