High Technology Egg Pasteurization Equipment Full Automatic 1000 LPH 2000L LPH
High Technology Egg Pasteurization Equipment Full Automatic 1000 LPH 2000L LPH
High Technology Egg Pasteurization Equipment Full Automatic 1000 LPH 2000L LPH
High Technology Egg Pasteurization Equipment Full Automatic 1000 LPH 2000L LPH
Specifications
Model Number :
1000L
Certification :
ISO
MOQ :
1Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
100 Set /Year
Delivery Time :
35 days after get your advance deposit
Packaging Details :
Standard Wooden Box .
Name :
flash pasteurization equipment
Material :
Sanitary Stainless Steel 304 / 316
Application :
Eggs Pasteurization
Inlet temperature :
20 -65C
Sterilization Temperature :
115-135C
Holding Time :
5Seg-30 Seg
Outlet Temperature :
20C-65C
Type :
Full Automatic with PLC
Packing :
Wooden box
Warranty :
One year
Description

High Technology Flash Pasteurization Milk UHT Plate Sterilizer With PLC Screen

(Technical Book will be available !!! )

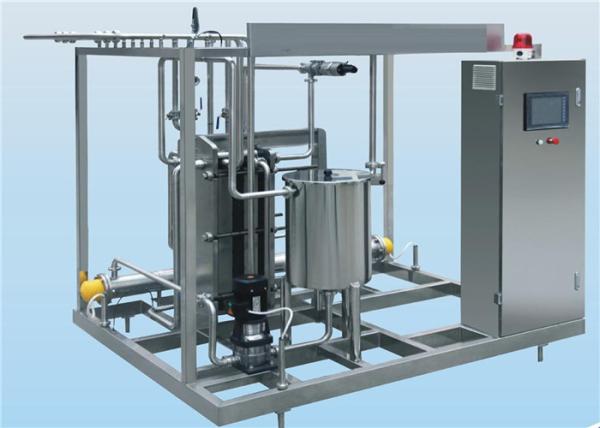

1. UHT Sterilizer Picture :

High Technology Egg Pasteurization Equipment Full Automatic 1000 LPH 2000L LPH

2. Technical Parameter :

Working condition
Material(Milk) 1000L/H Inlet Temperature 20-65℃ Steam pressure 0.5~0.6MPa
Cooling water temp 10℃
Design requirement
Material Pasteurizing Temp 115-135℃ Holding time 5-30S Outlet Temperature 4℃
Equipment and technical parameter
Name Technical parameter Name Technical parameter
Model KQ-UHT-50 Electric consumption 11KW
Heat exchange area 50m2 Material Inlet&Outlet Dia ￠38
Pipes Material & Dia 304,￠12×1.65mm Water Inlet&Outlet Dia ￠38
Outer Pipes Material,Dia 304,￠63×2mm Cooling water flow 6-7t/h
Sterilizing Temp 96C (Adjustable) Equipment Size 3500(L)×1800(W)×2000(H)
Steam Consumption 200Kg/h Steaming Pipe Dia ￠36×3
reflux valve work condition Alarm when high temperature,reflux when low temperature(automatically) Compressed air pressure >0.6Mpa
Power 3 phase 50HZ 380V Compressed air consumption 0.3M3/min
Weight 2.12T
Main list on the equipment
No. Main List Specifications Qty Manufacturer Remark
1 Heat Exchanger KQ-UHT-75 1 Our company
2 Steam& water mixer 1 Our company
3 Balanced barrel 100L 1 Our company
4 Hot water barrel 100L 1 Our company
5 Centrifugal beverage pump 20t 50m 1 Our company
6 Hot water pump CDLF4-70 1 Nanfang
7

pneumatic valve

 ￠38 1 Yuanan(Shanghai)
8 Butterfly valves ￠38 5 Made in China
9 Hot water ball valve ￠51 2 Made in China
10 Steam pipe DN40 Made in China
Steam flow control valve LE33 EP5 DN32 1 Ruilong
Steam Pressure reducing valve 25P DN32 1 Made in Japan
Steam plunger-type valves DN32 1 China
Steam filter DN32 1 China
Pressure gauge ￠100 2 China
11 Electric control box 304 1 Our company
PLC and processor 1 Simens
Electric component 1 Chint
Automatic temperature record 1 Dahua
12 Temperature sensor Pt100 4 Made in Japan
13 Frame and pipes 304 1 Our company
3. Instruction :
High Technology Egg Pasteurization Equipment Full Automatic 1000 LPH 2000L LPH
5000LPH Milk Yogurt Tubular Flash UHT Pasteurizer Sterilizer With PLC
The machine has characteristics such as compact structure, effective sterilization, convenient operation, wide adaptation, low cost and so on.According to users' needs, it can be supplied separately UHT sterilization system, including tube-type sterilizing machine, preheating tank, and insulation tank, the homogenizer interfaces can prevent formatting milk stone, with the pasteurization function.It can also available the entire unit, including UHT sterilizing system and flash degassing system.
Flash Pasteurization Machine UHT Tubular Sterilizer With PLC Screen

Usage

It's widely used in milk, juice, tea drinks, milk drinks, ketchup, condiments, beer, butter, ice cream, egg products, powder and other products.

Characteristics

1000 LPH 2000L LPH Egg Flash Pasteurization Equipment With PLC Screen

1. The huge viscosity range.The use environment PH value is 1-14.It is suitable for sterile production of fresh milk, pasteurized milk, yogurt, colored milk, juice, tea drinks, wine, ice cream, soy milk, beverage, jam, butter and other products.The products produced by UHT sterilization system can maintain 3-6 months under normal temperature (do not add any preservatives), thus eliminating the cold chain.

2. The equipment is automatically or semi-automatically controlled by computer with LCD touch screen operation.

3. Instantaneous processing maintains the original flavor of the products.

4. PID temperature control system, sterilization temperature recorded continuously in real time.

5. The product has uniform heat treatment, heat recovery up to 90%.

6. The tube inside without any contact, no health dead corners, and the products will not adhere to the tube, and the bellows can form high turbulence in sterilization process, with a self-cleaning effect, so it is difficult to form tube fouling and pollution.

7. With a long continuous operating time and good CIP self-cleaning effect.

8. Less spare parts, low operating costs.

9. Easy to install, inspect and remove, convenient to maintain pipeline.

10. Reliable material, affordable a higher product pressure.

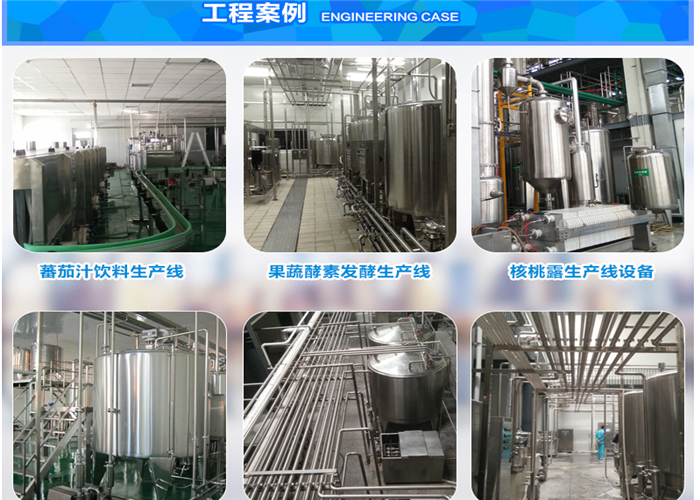

4. Application :

High Technology Egg Pasteurization Equipment Full Automatic 1000 LPH 2000L LPH
