Tube In Tube Milk UHT Sterilization Machine High Thermal Efficiency For Juice Concentrate
Tube In Tube Milk UHT Sterilization Machine High Thermal Efficiency For Juice Concentrate
Tube In Tube Milk UHT Sterilization Machine High Thermal Efficiency For Juice Concentrate
Tube In Tube Milk UHT Sterilization Machine High Thermal Efficiency For Juice Concentrate
Tube In Tube Milk UHT Sterilization Machine High Thermal Efficiency For Juice Concentrate
Tube In Tube Milk UHT Sterilization Machine High Thermal Efficiency For Juice Concentrate
Specifications
Model Number :
KQ 1000L ,KQ 2000L ,KQ 3000L
Certification :
ISO ,CE
MOQ :
1Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
25 days after get your advance payment .
Delivery Time :
20 to 30 days after get your advance payment
Packaging Details :
Standard Export Wooden Box
Name :
juice pasteurization machine
Material :
Stainless Steel 304 / 316 /316L
Inlet Temperature :
20C - 65C
Sterilization Temerpature :
110 to 135C
Holding Time :
5 to 30seconds
Outlet temperature :
20C -65C
Application :
Milk ,Juice
Warranty :
ONE YEAR
Packing :
Wooden Box
Origin :
Shanghai China
Description

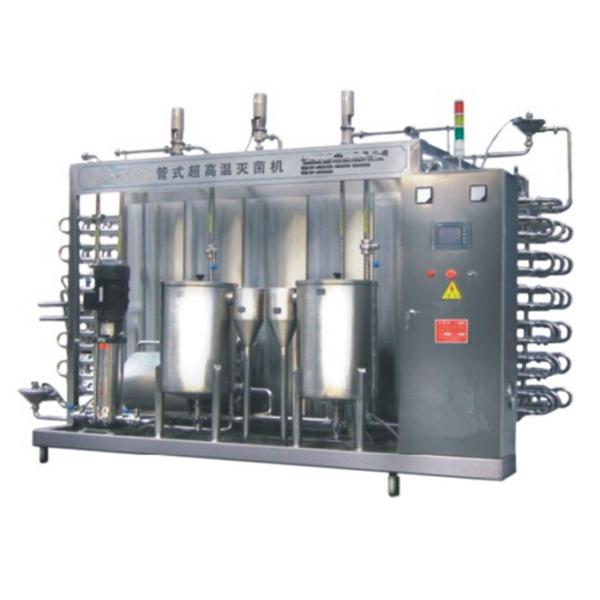

High Thermal Efficiency Tube-in-Tube Milk Uht Juice Concentrate Sterilizer

Product Description

Mainly composed of tube in tube heat-exchanger, feeding pump which can change speed steplessly, keeper, closed water tank, vapor and water compound heat-exchanger, controller and etc.

Application

Suitable for heat-sterilization and cooling of sauce, paste, juice concentrate, milk and other products and high-viscosity material.

Product Feature

  1. High thermal efficiency & easy maintenance
  2. High degree of automation. From CIP cleaning of equipment, sterilization of tubes, to material sterilization, the whole process can achieve automatic control and recording. Touch screen operation.
  3. Precise and reliable sterilizing temperature control: System and steam pressure, flow, material flow and other factors affecting sterilization temperature are all strictly controlled automatically.
  4. Accessories are of high performance and reliability.

Specification

High Thermal Efficiency Tube-in-Tube Uht Juice Concentrate Sterilizer

Dimension 7000mmx2200mmx2500mm
Power 25kw
Processing capacity 1000KG/H
Sterilizing temperature 108°
Sterilizing time 105S
Steam consumption 200kg/hour
NO. Accessory Brand
1 PLC Siemens (Germany)
2 Human Machine Interface Siemens(Germany)
3 Valves SpiraxSarco (Britain)
4 Electric Elements Schneider (France)
5 Central Relay Omron (Japan)
6 Transducer Fujifilm (Japan)
