PLC Screen UHT Sterilization Machine / Tubular Sterilization Easy Install
PLC Screen UHT Sterilization Machine / Tubular Sterilization Easy Install
PLC Screen UHT Sterilization Machine / Tubular Sterilization Easy Install
PLC Screen UHT Sterilization Machine / Tubular Sterilization Easy Install
PLC Screen UHT Sterilization Machine / Tubular Sterilization Easy Install
PLC Screen UHT Sterilization Machine / Tubular Sterilization Easy Install
Specifications
Model Number :
1000L
Certification :
ISO
MOQ :
1Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
100 Set /Year
Delivery Time :
35 days after get your advance deposit
Packaging Details :
Standard Wooden Box
Name :
milk pasteurization machine
Material :
Sanitary Stainless Steel 304 / 316
Inlet temperature :
20 -65C
Sterilization Temperature :
115-135C
Holding Time :
5Seg-30 Seg
Outlet Temperature :
20C-65C
Type :
Full Automatic with PLC
Packing :
Wooden box
Description

Milk Flash Pasteurization Machine UHT Tubular Sterilizer With PLC Screen

(Technical Book will be available !!! )

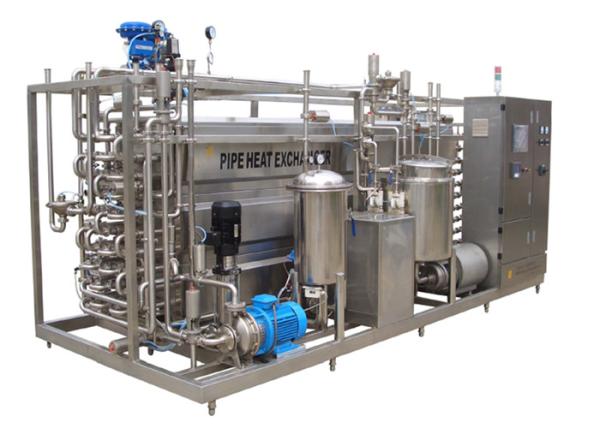

1. UHT Sterilizer Picture :

PLC Screen UHT Sterilization Machine / Tubular Sterilization Easy Install

2. Technical Parameter :
No. Main List Specifications Qty Manufacturer Remark
1 Heat Exchanger KQ-UHT-75 1 Our company
2 Steam& water mixer 1 Our company
3 Balanced barrel 100L 1 Our company
4 Hot water barrel 100L 1 Our company
5 Centrifugal beverage pump 20t 50m 1 Our company
6 Hot water pump CDLF4-70 1 Nanfang
7

pneumatic valve

 ￠38 1 Yuanan(Shanghai)
8 Butterfly valves ￠38 5 Made in China
9 Hot water ball valve ￠51 2 Made in China
10 Steam pipe DN40 Made in China
Steam flow control valve LE33 EP5 DN32 1 Ruilong
Steam Pressure reducing valve 25P DN32 1 Made in Japan
Steam plunger-type valves DN32 1 China
Steam filter DN32 1 China
Pressure gauge ￠100 2 China
11 Electric control box 304 1 Our company
PLC and processor 1 Simens
Electric component 1 Chint
Automatic temperature record 1 Dahua
12 Temperature sensor Pt100 4 Made in Japan
13 Frame and pipes 304 1 Our company
3. Instruction :
5000LPH Milk Yogurt Tubular Flash UHT Pasteurizer Sterilizer With PLC
The machine has characteristics such as compact structure, effective sterilization, convenient operation, wide adaptation, low cost and so on.According to users' needs, it can be supplied separately UHT sterilization system, including tube-type sterilizing machine, preheating tank, and insulation tank, the homogenizer interfaces can prevent formatting milk stone, with the pasteurization function.It can also available the entire unit, including UHT sterilizing system and flash degassing system.
Flash Pasteurization Machine UHT Tubular Sterilizer With PLC Screen
PLC Screen UHT Sterilization Machine / Tubular Sterilization Easy Install
Usage

It's widely used in milk, juice, tea drinks, milk drinks, ketchup, condiments, beer, butter, ice cream, egg products, powder and other products.
PLC Screen UHT Sterilization Machine / Tubular Sterilization Easy Install
Characteristics
1000 LPH 2000L LPH Egg Flash Pasteurization Equipment With PLC Screen
1.The huge viscosity range.The use environment PH value is 1-14.It is suitable for sterile production of fresh milk, pasteurized milk, yogurt, colored milk, juice, tea drinks, wine, ice cream, soy milk, beverage, jam, butter and other products.The products produced by UHT sterilization system can maintain 3-6 months under normal temperature (do not add any preservatives), thus eliminating the cold chain.

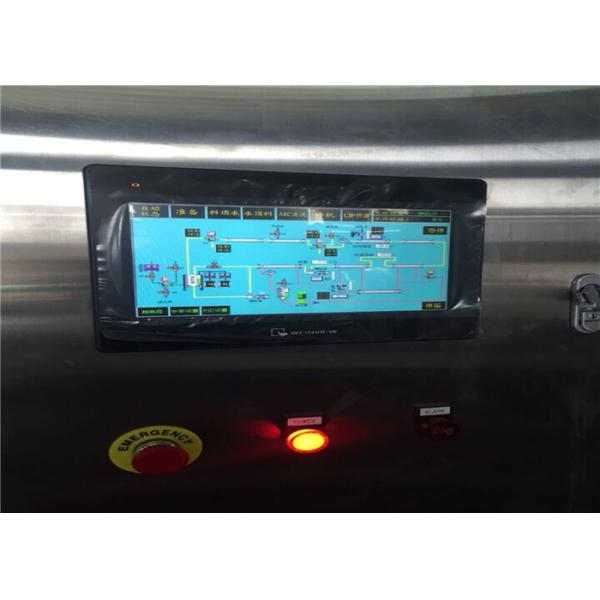

2.The equipment is automatically or semi-automatically controlled by computer with LCD touch screen operation.
PLC Screen UHT Sterilization Machine / Tubular Sterilization Easy Install
3.Instantaneous processing maintains the original flavor of the products.

4.PID temperature control system, sterilization temperature recorded continuously in real time.

5.The product has uniform heat treatment, heat recovery up to 90%.

6.The tube inside without any contact, no health dead corners, and the products will not adhere to the tube, and the bellows can form high turbulence in sterilization process, with a self-cleaning effect, so it is difficult to form tube fouling and pollution.

7.With a long continuous operating time and good CIP self-cleaning effect.

8.Less spare parts, low operating costs.

9.Easy to install, inspect and remove, convenient to maintain pipeline.

10.Reliable material, affordable a higher product pressure.

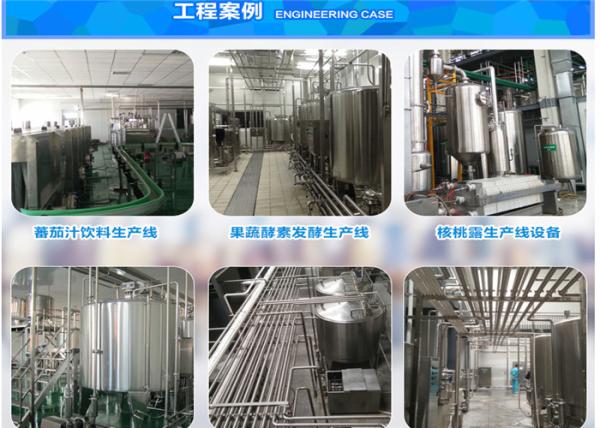

4. Application :

1000 LPH 2000L LPH Egg Flash Pasteurization Equipment With PLC Screen

PLC Screen UHT Sterilization Machine / Tubular Sterilization Easy Install
