2000LPH Automatic Milk Pasteurization Machine / UHT Milk Processing Plant
2000LPH Automatic Milk Pasteurization Machine / UHT Milk Processing Plant
2000LPH Automatic Milk Pasteurization Machine / UHT Milk Processing Plant
2000LPH Automatic Milk Pasteurization Machine / UHT Milk Processing Plant
2000LPH Automatic Milk Pasteurization Machine / UHT Milk Processing Plant
2000LPH Automatic Milk Pasteurization Machine / UHT Milk Processing Plant
Specifications
Model Number :
2000L
Certification :
ISO
MOQ :
1Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
100 Set /Year
Delivery Time :
35 days after get your advance deposit
Packaging Details :
Standard Wooden Box
Name :
juice pasteurization machine
Material :
Sanitary Stainless Steel 304 / 316
Application :
Eggs Pasteurization
Inlet temperature :
20 -65C
Sterilization Temperature :
115-135C
Holding Time :
5Seg-30 Seg
Outlet Temperature :
20C-65C
Type :
Full Automatic with PLC
Packing :
Wooden box
Warranty :
One year
Description

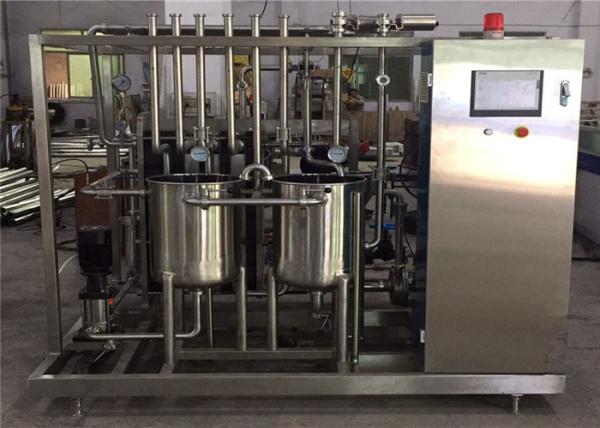

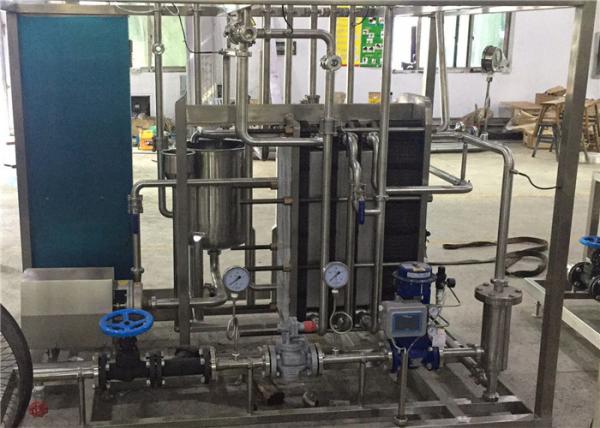

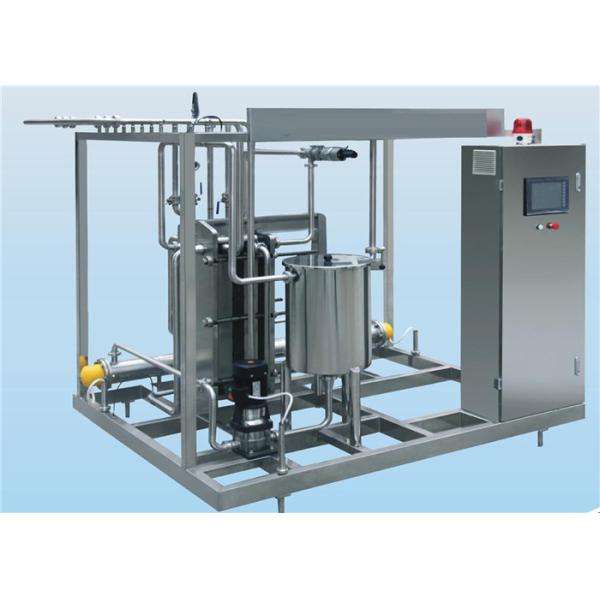

2000LPH Automatic Milk Fruit Juice UHT Flash Pasteurizer Plate Sterilizer

1. Technical Parameter :

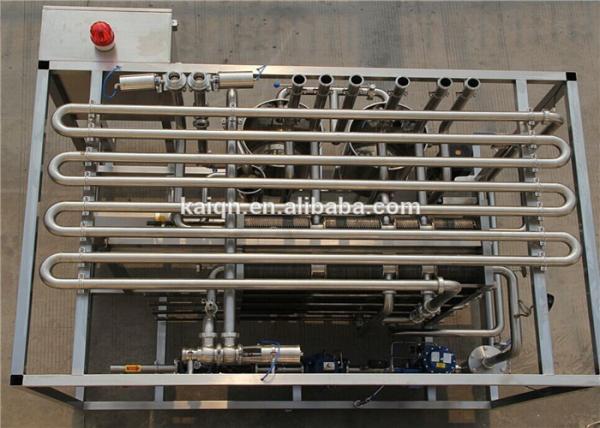

Automatic tubular UHT is developed according to the technical requirement of juice filling line. It connects UHT and 3-in-1 monoblock directly.

UHT, Pasteurizer for Juice, Flavoured Milk, hot filling drinks Pasteurizer for Juice, Flavoured Milk, hot filling drinks Working Parameters:

Material entry temperature: Under 30° C.

Sterilizing temperature and keeping time: 137± 1° C, 5~30 seconds

Material out temperature: 25~90° C (according to the need)

Equiipment Information:

Sterilizing material: Flavour milk, tea, juice

2. Technical Parameter :

Name KQ-PUT-15 KQ-PUT-20 KQ-PUT-25 KQ-PUT-30 KQ-PUT-55 KQ-PUT-105
production capacity t/h 2 3 4 5 10 20
heat exchanging area m2 15 20 25 30 55 105
temperature of material inlet °C 5 5 5 5 5 5
temperature of material outlet °C 5 5 5 5 5 5
sterilizing temperature °C 85-95 85-95 85-95 85-95 85-95 85-95
heat preservation period S 15 15 15 15 15 15
ice water consumption multiple 3 3 3 3 2 2
cooling water consumption multiple 2 2 2 2 2 2
energy consumption kw 10 10 12 14 16 20
outline dimensions mm 3500*1900*1880 3500*1900*1880 4500*1950*1880 4500*2000*1880 6500*2000*1880 6500*20
2000LPH Automatic Milk Pasteurization Machine / UHT Milk Processing Plant

4. Application :

2000LPH Automatic Milk Pasteurization Machine / UHT Milk Processing Plant
