1000 LPH Milk Fruit Juice Pasteurization Machine SS 304 / SS 316 Material
1000 LPH Milk Fruit Juice Pasteurization Machine SS 304 / SS 316 Material
1000 LPH Milk Fruit Juice Pasteurization Machine SS 304 / SS 316 Material
1000 LPH Milk Fruit Juice Pasteurization Machine SS 304 / SS 316 Material
1000 LPH Milk Fruit Juice Pasteurization Machine SS 304 / SS 316 Material
1000 LPH Milk Fruit Juice Pasteurization Machine SS 304 / SS 316 Material
Specifications
Model Number :
1000L
Certification :
ISO
MOQ :
1Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
100 Set /Year
Delivery Time :
35 days after get your advance deposit
Packaging Details :
Standard Wooden Box
Name :
milk pasteurization machine
Material :
Sanitary Stainless Steel 304 / 316
Application :
Milk / Yogurt /Juice
Inlet temperature :
20 -65C
Sterilization Temperature :
115-135C
Holding Time :
5Seg-30 Seg
Outlet Temperature :
20C-65C
Type :
Full Automatic with PLC finger touch screen
Description

1000LPH Milk Fruit Juice Flash UHT Pasteurization Machine With PLC

(Technical Book will be available !!! )

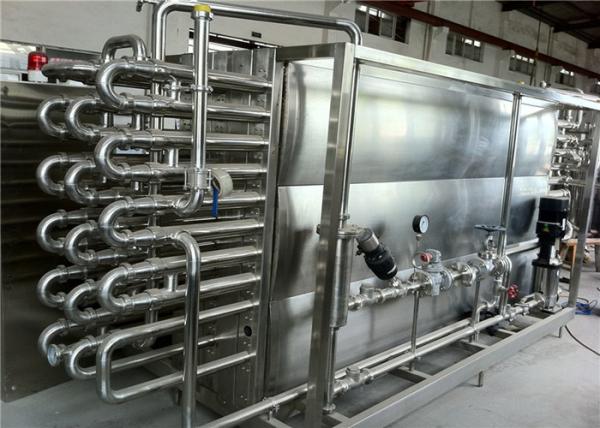

1. UHT Sterilizer Picture :

High thermal efficiency tube-in-tube sterilizer for juice concentrate

Product Description

Mainly composed of tube in tube heat-exchanger, feeding pump which can change speed steplessly, keeper, closed water tank, vapor and water compound heat-exchanger, controller and etc.

Application

Suitable for heat-sterilization and cooling of sauce, paste, juice concentrate, milk and other products and high-viscosity material.

Product Feature

  1. High thermal efficiency & easy maintenance
  2. High degree of automation. From CIP cleaning of equipment, sterilization of tubes, to material sterilization, the whole process can achieve automatic control and recording. Touch screen operation.
  3. Precise and reliable sterilizing temperature control: System and steam pressure, flow, material flow and other factors affecting sterilization temperature are all strictly controlled automatically.
  4. Accessories are of high performance and reliability.

Specification

Dimension 7000mmx2200mmx2500mm
Power 25kw
Processing capacity 1000KG/H
Sterilizing temperature 108°
Sterilizing time 5S to 30S
Steam consumption 200kg/hour

1000 LPH Milk Fruit Juice Pasteurization Machine SS 304 / SS 316 Material

2. Technical Parameter :

Working condition
Material(Milk) 1000L/H Inlet Temperature 20-65℃ Steam pressure 0.5~0.6MPa
Cooling water temp 10℃
Design requirement
Material Pasteurizing Temp 115-135℃ Holding time 5-30S Outlet Temperature 4℃
Equipment and technical parameter
Name Technical parameter Name Technical parameter
Model KQ-UHT-50 Electric consumption 11KW
Heat exchange area 50m2 Material Inlet&Outlet Dia ￠38
Pipes Material & Dia 304,￠12×1.65mm Water Inlet&Outlet Dia ￠38
Outer Pipes Material,Dia 304,￠63×2mm Cooling water flow 6-7t/h
Sterilizing Temp 96C (Adjustable) Equipment Size 3500(L)×1800(W)×2000(H)
Steam Consumption 200Kg/h Steaming Pipe Dia ￠36×3
reflux valve work condition Alarm when high temperature,reflux when low temperature(automatically) Compressed air pressure >0.6Mpa
Power 3 phase 50HZ 380V Compressed air consumption 0.3M3/min
Weight 2.12T
Main list on the equipment
No. Main List Specifications Qty Manufacturer Remark
1 Heat Exchanger KQ-UHT-75 1 Our company
2 Steam& water mixer 1 Our company
3 Balanced barrel 100L 1 Our company
4 Hot water barrel 100L 1 Our company
5 Centrifugal beverage pump 20t 50m 1 Our company
6 Hot water pump CDLF4-70 1 Nanfang
7

pneumatic valve

 ￠38 1 Yuanan(Shanghai)
8 Butterfly valves ￠38 5 Made in China
9 Hot water ball valve ￠51 2 Made in China
10 Steam pipe DN40 Made in China
Steam flow control valve LE33 EP5 DN32 1 Ruilong
Steam Pressure reducing valve 25P DN32 1 Made in Japan
Steam plunger-type valves DN32 1 China
Steam filter DN32 1 China
Pressure gauge ￠100 2 China
11 Electric control box 304 1 Our company
PLC and processor 1 Simens
Electric component 1 Chint
Automatic temperature record 1 Dahua
12 Temperature sensor Pt100 4 Made in Japan
13 Frame and pipes 304 1 Our company
