Reliable UHT Sterilization Machine 5000 LPH Easy Install For Milk Yogurt
Reliable UHT Sterilization Machine 5000 LPH Easy Install For Milk Yogurt
Reliable UHT Sterilization Machine 5000 LPH Easy Install For Milk Yogurt
Reliable UHT Sterilization Machine 5000 LPH Easy Install For Milk Yogurt
Reliable UHT Sterilization Machine 5000 LPH Easy Install For Milk Yogurt
Reliable UHT Sterilization Machine 5000 LPH Easy Install For Milk Yogurt
Specifications
Model Number :
1000L 2000L3000L 5000L
Certification :
ISO
MOQ :
1Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
100 Set /Year
Delivery Time :
35 days after get your advance deposit
Packaging Details :
Standard Wooden Box
Name :
UHT pasteurization machine
Application :
Milk / Yogurt /Juice
Inlet temperature :
20 -65C
Sterilization Temperature :
115-135C
Holding Time :
5Seg-30 Seg
Outlet Temperature :
20C-65C
Type :
Full Automatic with PLC finger touch screen
Description


5000LPH Milk Yogurt Tubular Flash UHT Pasteurizer Sterilizer With PLC
(Technical Book will be available !!! )

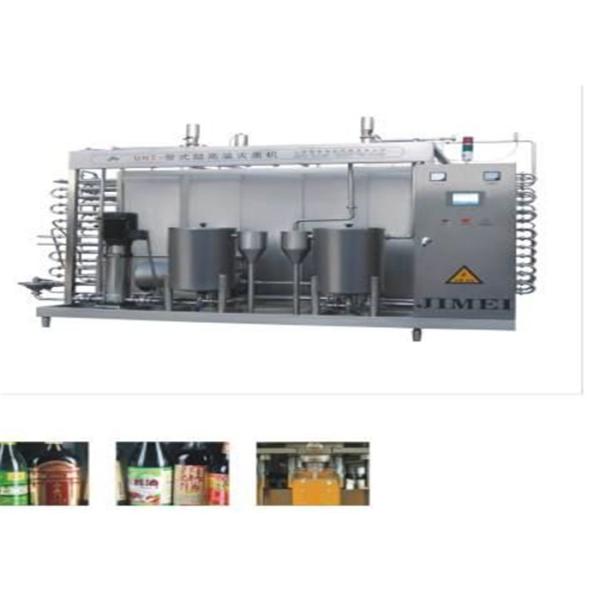

1. UHT Sterilizer Picture :

Reliable UHT Sterilization Machine 5000 LPH Easy Install For Milk Yogurt

2. Technical Parameter :

Model
Project		UHT-1.6UHT-2UHT-3UHT-4UHT-5
Product capacity(l/h)16002000300040005000
Material inlet temperature5centigrade5centigrade5centigrade5centigrade5centigrade
Warmkeeping time(s)4-154-154-154-154-15
Sterilizing temperature95~141centigrade95~141centigrade95~141centigrade95~141centigrade95~141centigrade
Material outlet temperature4-204-204-204-204-20
Steam pressure0.6MPa0.6MPa0.6MPa0.6MPa0.6MPa
Steam cost~130kg/h~160kg/h~240kg/h~320kg/h~400kg/h
Compressed air pressure0.6MPa0.6MPa0.6MPa0.6MPa0.6MPa
Compressed air cost50L/H50L/H50L/H50L/H50L/H
Size
(Without homogenizer)		3500×1600
×1800		4500×2000
×1900		4500×2500
×2000		5000×2000
×2000		5000×2000
×2000
Electrisity cost(kw)
(without homogenizer)		4.54.55.56.510
3. Instruction :
Reliable UHT Sterilization Machine 5000 LPH Easy Install For Milk Yogurt
5000LPH Milk Yogurt Tubular Flash UHT Pasteurizer Sterilizer With PLC
The machine has characteristics such as compact structure, effective sterilization, convenient operation, wide adaptation, low cost and so on.According to users' needs, it can be supplied separately UHT sterilization system, including tube-type sterilizing machine, preheating tank, and insulation tank, the homogenizer interfaces can prevent formatting milk stone, with the pasteurization function.It can also available the entire unit, including UHT sterilizing system and flash degassing system.
Reliable UHT Sterilization Machine 5000 LPH Easy Install For Milk Yogurt
Usage
It's widely used in milk, juice, tea drinks, milk drinks, ketchup, condiments, beer, butter, ice cream, egg products, powder and other products.

4. Application :
Product Description:
1. Usage: Pipe sterilizer can take hot process on the dairy production, liquid foods beverage, concentrate jam, biology, medicine etc. Sterilizer of other model.
2. Main structure: Material tanks, sterilizer tank, material pump, exheater, hot water cross occur, controller etc.
3. Control system: PLC controller, touch screen operating, frequency conversion timing, PID temperature controller.
4. Working principle: Pre-sterilizing, sterilizing for the pipe which material will touch, use the hot water cycle in the pipe, more than 20 min, then lower the pipe temp., starting sterilizing for the material. The material which had disposal to the material tank, use the pump sending to pipe heat exchanger. Then put the material into heater pipe and sterilizing according to require time, and after sterilizing to the keeping pipe, then into the cooling pipe and sending to the filling machine.Hot sale plate&tube ultraviolet sterilizer
Reliable UHT Sterilization Machine 5000 LPH Easy Install For Milk Yogurt
