Full Automatic UHT Sterilization Machine Tube Type For Beverage ISO Approved
Full Automatic UHT Sterilization Machine Tube Type For Beverage ISO Approved
Full Automatic UHT Sterilization Machine Tube Type For Beverage ISO Approved
Full Automatic UHT Sterilization Machine Tube Type For Beverage ISO Approved
Full Automatic UHT Sterilization Machine Tube Type For Beverage ISO Approved
Full Automatic UHT Sterilization Machine Tube Type For Beverage ISO Approved
Specifications
Model Number :
KQ 2000L ,KQ 3000L ,KQ 5000L
Certification :
ISO
MOQ :
1Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
25 days after get your advance payment .
Delivery Time :
30 to 40 days after get your advance payment
Packaging Details :
Standard Export Wooden Box
Name :
Full Automatic Milk UHT Sterilization Sterilizer Equipment
Material :
Food Grade Stainless Steel 304 / 316
Inlet Temperature :
20C -65C
Sterilization Temerpature :
110 to 135C
Holding Time :
5S to 30S
Outlet temperature :
20C -65C
Application :
Milk ,Juice , Water ,Tea ,Eggs Liquid
Packing :
Wooden Box
Origin :
Shanghai China
Description

Full Automatic UHT Beverage Sterilization Machine Sterilizer Equipment

1. UHT Beverage Sterilizer Picture and Instruction :

Product Description

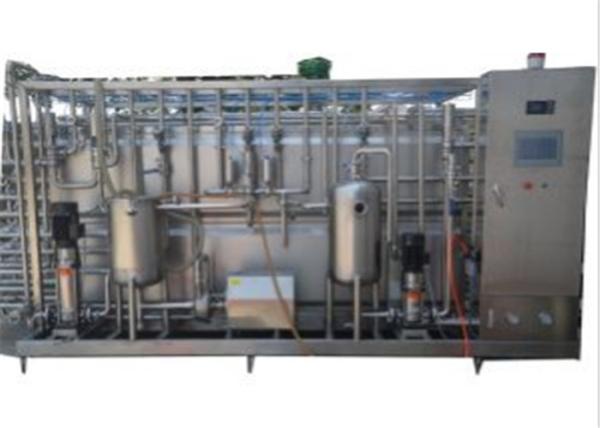

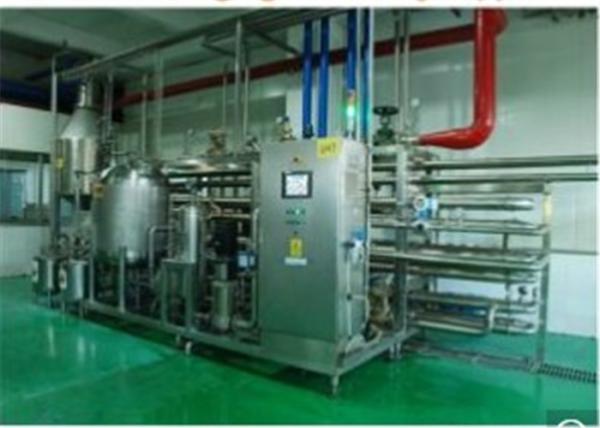

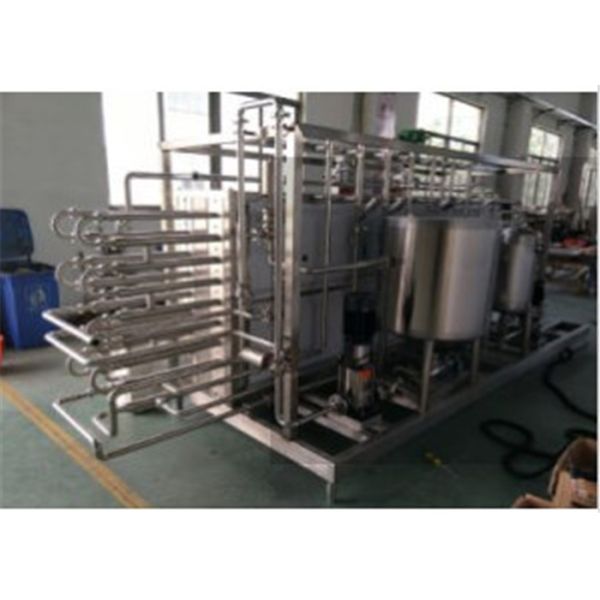

Tube UHT sterilizer


KQ-HT tube type high temperature sterilization machine is widely used for liquid food(all kinds of dairy, juice, beverage, syrup, soy sauce, wine and vinegar, etc)"aseptic" and "the sterile" heat treatment of automatic system, the viscosity of the products range is very big, and can adapt to the fibers and particles. The company's UHT sterilization machine series production capacity can be from 1 ~ 20t/h, typical of the sterilization temperature of 90 ~ 140 ºC, be able to connect any filling machine (aseptic or other types), sterilization machine control system installed in the chassis, control system all adopt the international famous brand products, including PLC program controller and engineering control screen, steam pressure reducing valve and regulator, the purge valve, valve, material pump, voltage hot water pump, valve and pipe by other items such as all the accessories selects high fluid quality and high reliability.

2. Technical Parameter :

Model
Project		 KQ-UHT-1.6 KQ-UHT-2 KQ-UHT-3 KQ-UHT-4 KQ-UHT-5
Product capacity(l/h) 1600 2000 3000 4000 5000
Material inlet temperature 5centigrade 5centigrade 5centigrade 5centigrade 5centigrade
Holding time(s) 4-15 4-15 4-15 4-15 4-15
Sterilizing temperature 95~141centigrade 95~141centigrade 95~141centigrade 95~141centigrade 95~141centigrade
Material outlet temperature 4-20 4-20 4-20 4-20 4-20
Steam pressure 0.6MPa 0.6MPa 0.6MPa 0.6MPa 0.6MPa
Steam cost ~130kg/h ~160kg/h ~240kg/h ~320kg/h ~400kg/h
Compressed air pressure 0.6MPa 0.6MPa 0.6MPa 0.6MPa 0.6MPa
Compressed air cost 50L/H 50L/H 50L/H 50L/H 50L/H
Size
(Without homogenizer)		 3500×1600
×1800		 4500×2000
×1900		 4500×2500
×2000		 5000×2000
×2000		 5000×2000
×2000
Electrisity cost(kw)
(without homogenizer)		 4.5 4.5 5.5 6.5 10
