Specifications
MOQ :
1
Price :
1600
Description

Welcome to Shanghai Mengsheng Sheng International Trade

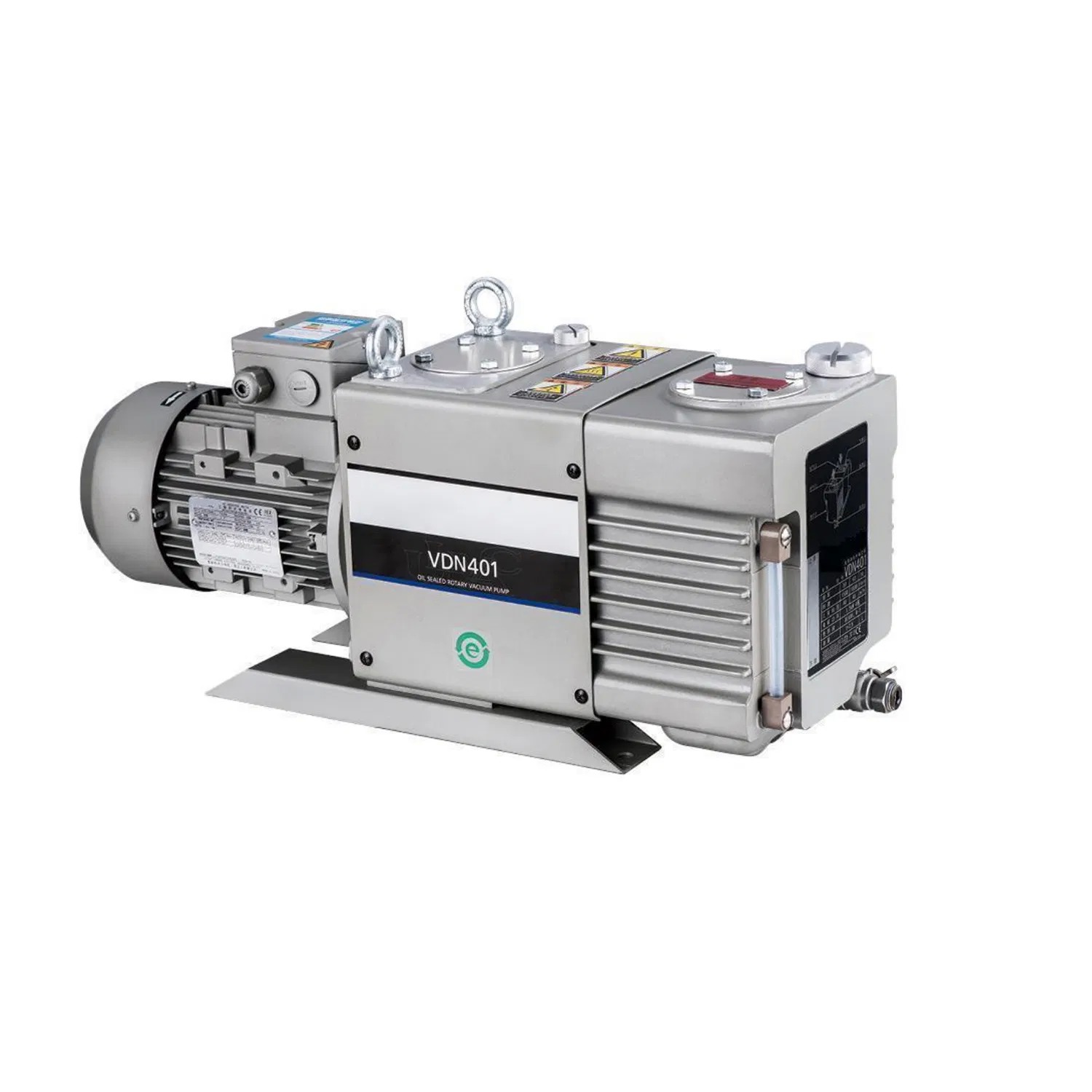

Name:ULVAC VDN301 VDN401 oil rotary vane vacuum pump (used for vacuum coating, vacuum drying)

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Description :
Low noise:
Optimized design achieved quiet running.

Easy maintenance:
Pump body can be removed without disconnecting the inlet vacuum pipes.
Checking, adding and changing oil are done at the same side of the pump to facilitate greater ease in performing routine maintenance and inspection. A variable oil volume is adopted to extend the complementary time of oil.

Forced oil circulation system ensures stable pumping speed around atmospheric pressure:
When equipped with optional oil mist trap and oil return mechanism, these pumps can run continuously at pressures equal to or below atmospheric pressure.

Applications:
1.Evaporation, sputtering and ion plating.
2.Gas substitution, back-filling and vacuum insulation.
3.Vacuum drying, freeze drying, vacuum degassing.
4.Analytical instruments and leak testers.
5.Vacuum packing, vacuum adsorption and transport, vacuum molding and vacuum casting.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Your satisfaction and positive feedback is very significant to us.
Thank you! Have a nice day!

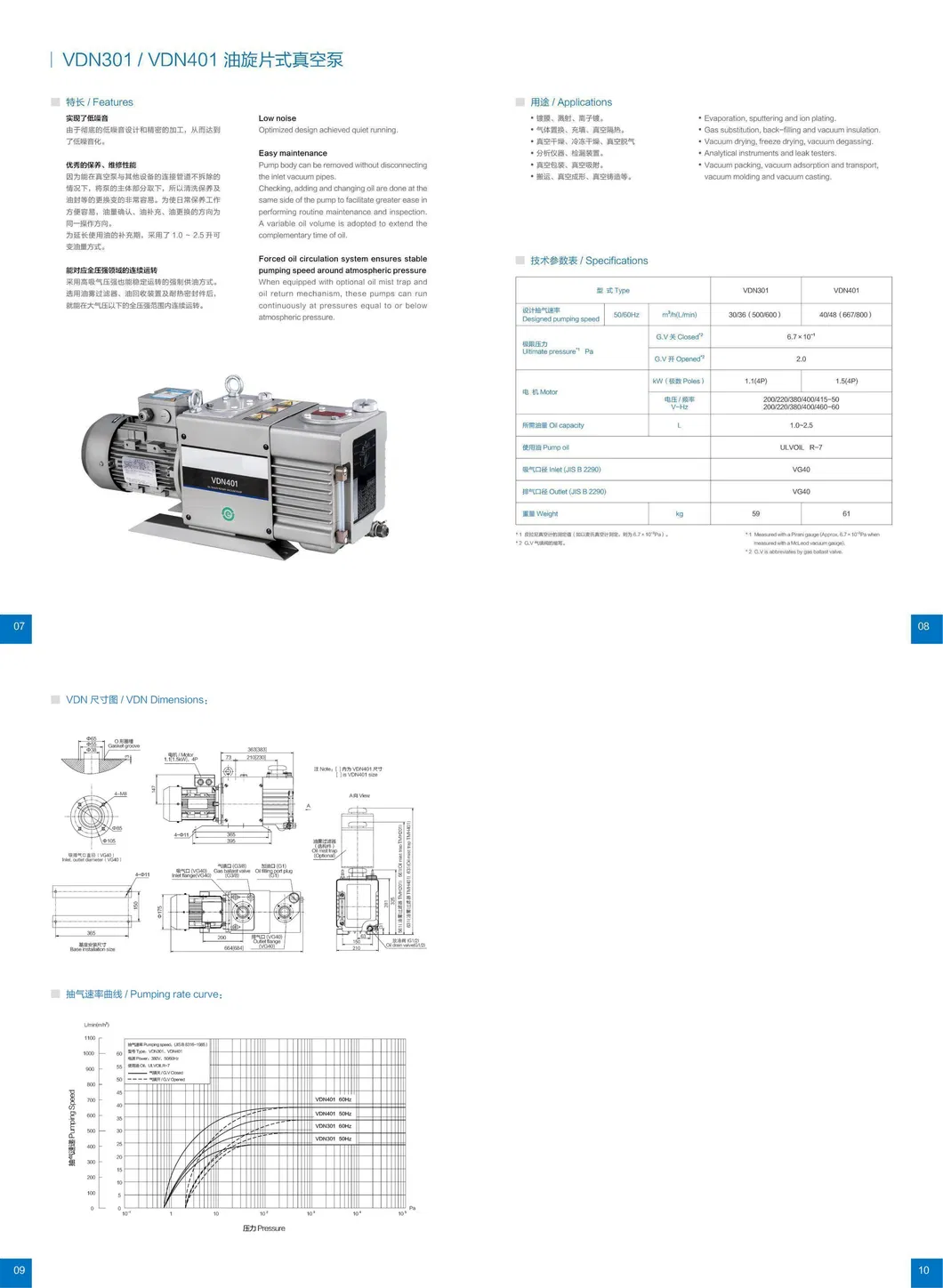

Product Description


Ulvac Vdn301 Vdn401 Oil Rotary Vane Vacuum Pump
Type VDN301 VDN401

Designed pumping speed		 50/60Hz m³/h(L/min) 30/36(500/600) 40/48(667/800)

Ultimate pressure Pa		 G .VClosed 6.7×10-1
G.VOpened 2.0
Motor kW(Poles) 1.1(4P) 1.5(4P)
/
V-Hz		 200/220/380/400/415-50
200/220/380/400/460-60
Oil capacity L 1.0~2.5
Pump oil ULVOIL R-7
Inlet(JIS B 2290) VG40
Outlet(JIS B 2290) VG40
Weight kg 59 61
