Specifications
Price :
850
MOQ :
1
Description

Welcome to Shanghai Mengsheng Sheng International Trade

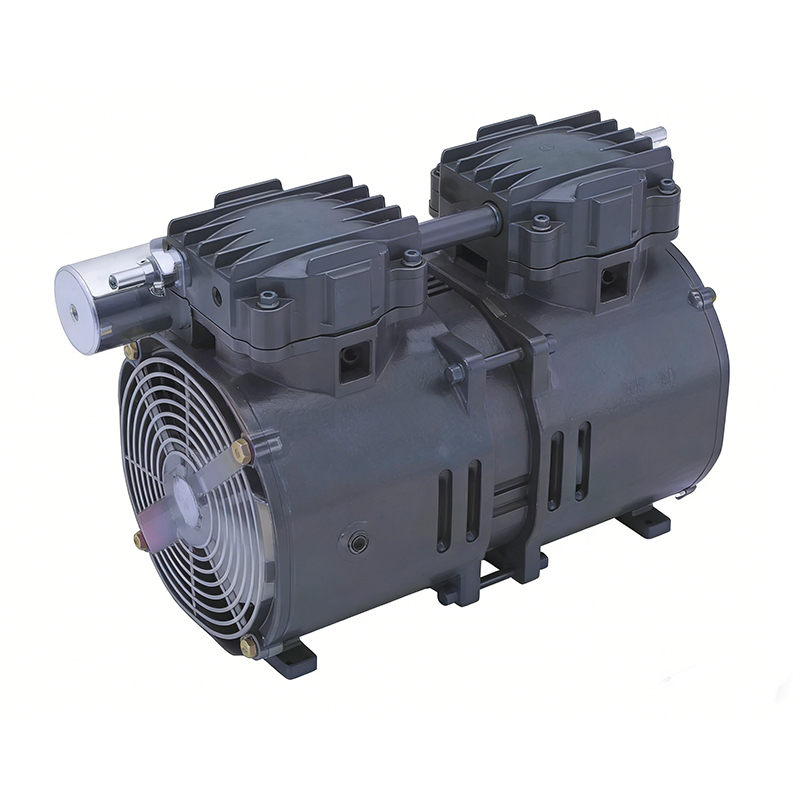

Name:ULVAC DOP-80S compact large displacement oscillating piston dry pump
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Description :
Compact dry pump with large displacement and oscillating piston design.
.Simple structure for easy maintenance.
.The DOP-81SP is a dedicated pressurized pump that optimizes piston structure design.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Your satisfaction and positive feedback is very significant to us.
Thank you! Have a nice day!
Product Description


Ulvac DOP-80s Compact Large Displacement Oscillating Piston Dry Pump

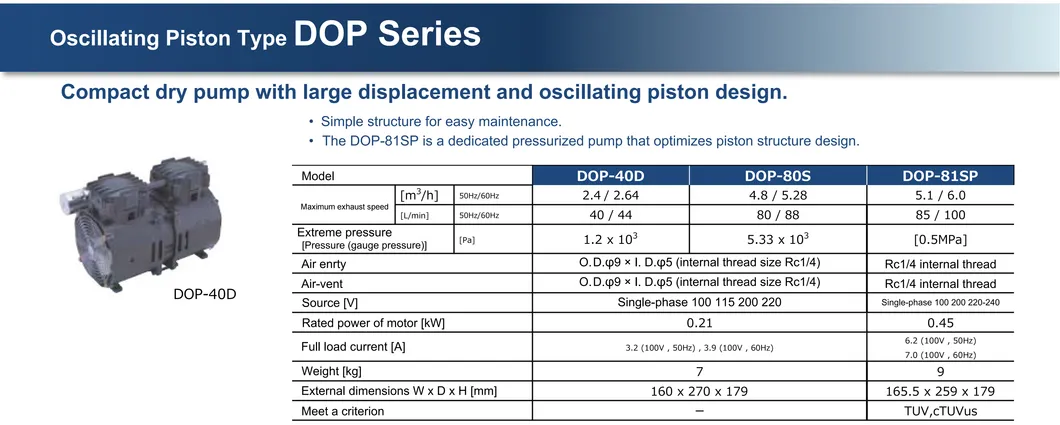

Model DOP-40D DOP-80S DOP-81SP
Maximum exhaust speed [m³/h] 50Hz/60Hz 2.4/2.64 4.8/5.28 5.1/6.0
[L/min] 50Hz/60Hz 40/44 80/88 85/100
Extreme pressure
[Pressure(gauge pressure)]		 [Pa] 1.2×10³ 5.33×10³ [0.5MPa]
Air enrty O.D. φ9×1.D. φ5(internal thread size Rc1/4) Rc1/4 internal thread
Air-vent O.D. φ9×1.D. φ5(internal thread size Rc1/4) Rc1/4 internal thread
Source [V] Single-phase 100 115 200 220 Single-phase 100 200 220-240
Rated power of motor [kW] 0.21 0.45
Full load current [A] 3.2(100V,50Hz),3.9(100V,60Hz) 6.2(100V,50Hz)
7.0(100V,60Hz)
Weight [kg] 7 9
External dimensions WxDxH[mm] 160×270×179 165.5×259×179
Meet a criterion TUV,CTUVus
