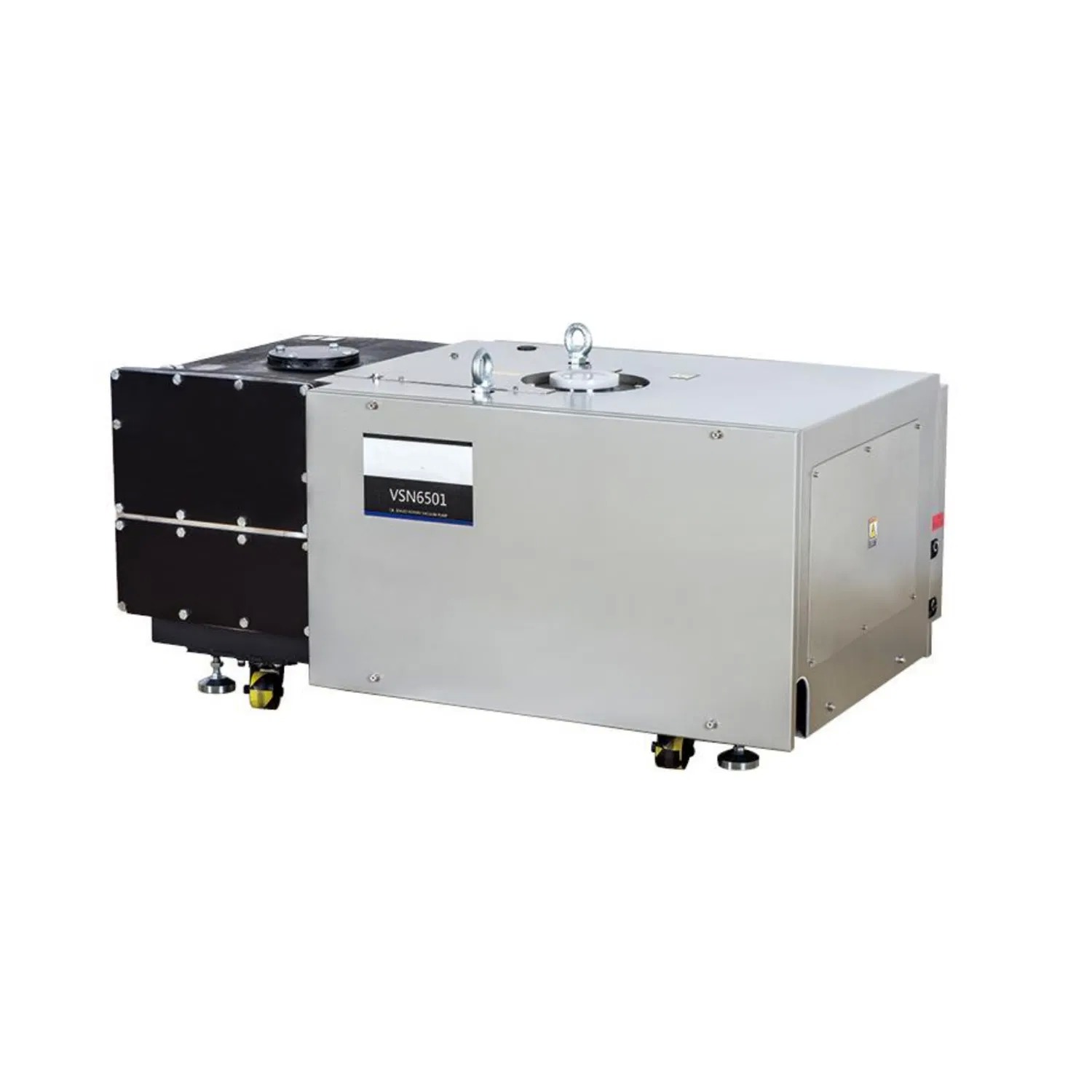

Ulvac Vsn6501 Vsn7501 Oil Rotary Vane Vacuum Pump
Ulvac Vsn6501 Vsn7501 Oil Rotary Vane Vacuum Pump
Ulvac Vsn6501 Vsn7501 Oil Rotary Vane Vacuum Pump
Ulvac Vsn6501 Vsn7501 Oil Rotary Vane Vacuum Pump
Ulvac Vsn6501 Vsn7501 Oil Rotary Vane Vacuum Pump
Ulvac Vsn6501 Vsn7501 Oil Rotary Vane Vacuum Pump
Ulvac Vsn6501 Vsn7501 Oil Rotary Vane Vacuum Pump
Ulvac Vsn6501 Vsn7501 Oil Rotary Vane Vacuum Pump
Ulvac Vsn6501 Vsn7501 Oil Rotary Vane Vacuum Pump
Ulvac Vsn6501 Vsn7501 Oil Rotary Vane Vacuum Pump
Ulvac Vsn6501 Vsn7501 Oil Rotary Vane Vacuum Pump
Ulvac Vsn6501 Vsn7501 Oil Rotary Vane Vacuum Pump
Specifications
Work Function :
N/a
Trademark :
ULVAC
MOQ :
1
Structure :
N/a
4 :
4
2 :
2
3 :
3
HS Code :
8414100090
Vacuum Degree :
N/a
1 :
1
Origin :
China
Model NO. :
MSS-P-VSN65017501
Price :
13100
Exhauster Method :
N/a
Specification :
330 KG
Oil or Not :
N/a
Working Conditions :
N/a
Description

Welcome to Shanghai Mengsheng Sheng International Trade
Name:ULVAC VSN6501 VSN7501 Oil Rotary Vane Vacuum Pump
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Description :
Low vibration:
The special vane structure used in this kind of pump helps to significantly reduce vibration in a low frequency which has high vibration conduction.

Built-in oil mist filter:
Compact structure without the need for an external oil mist filter.

Excellent drainage capacity:
Can be directly used with Roots pump, easy to connect.

Effective air cooling while water cooling is optional:
In a non-open factory environment, water cooling can be used to save energy.

Applications:
1.Evaporation, sputtering, and ion plating.
2.Gas substitution, back-filling and vacuum heat insulation.
3.Vacuum heat treatment furnaces, sintering furnaces, and brazing furnaces.
4.Vacuum drying, freeze drying, and vacuum degassing.
5.Automated leak testing, vacuum molding and vacuum casting.
6.Vacuum packing, vacuum adsorption, vacuum transport and others.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Your satisfaction and positive feedback is very significant to us.
Thank you! Have a nice day!
Product Description

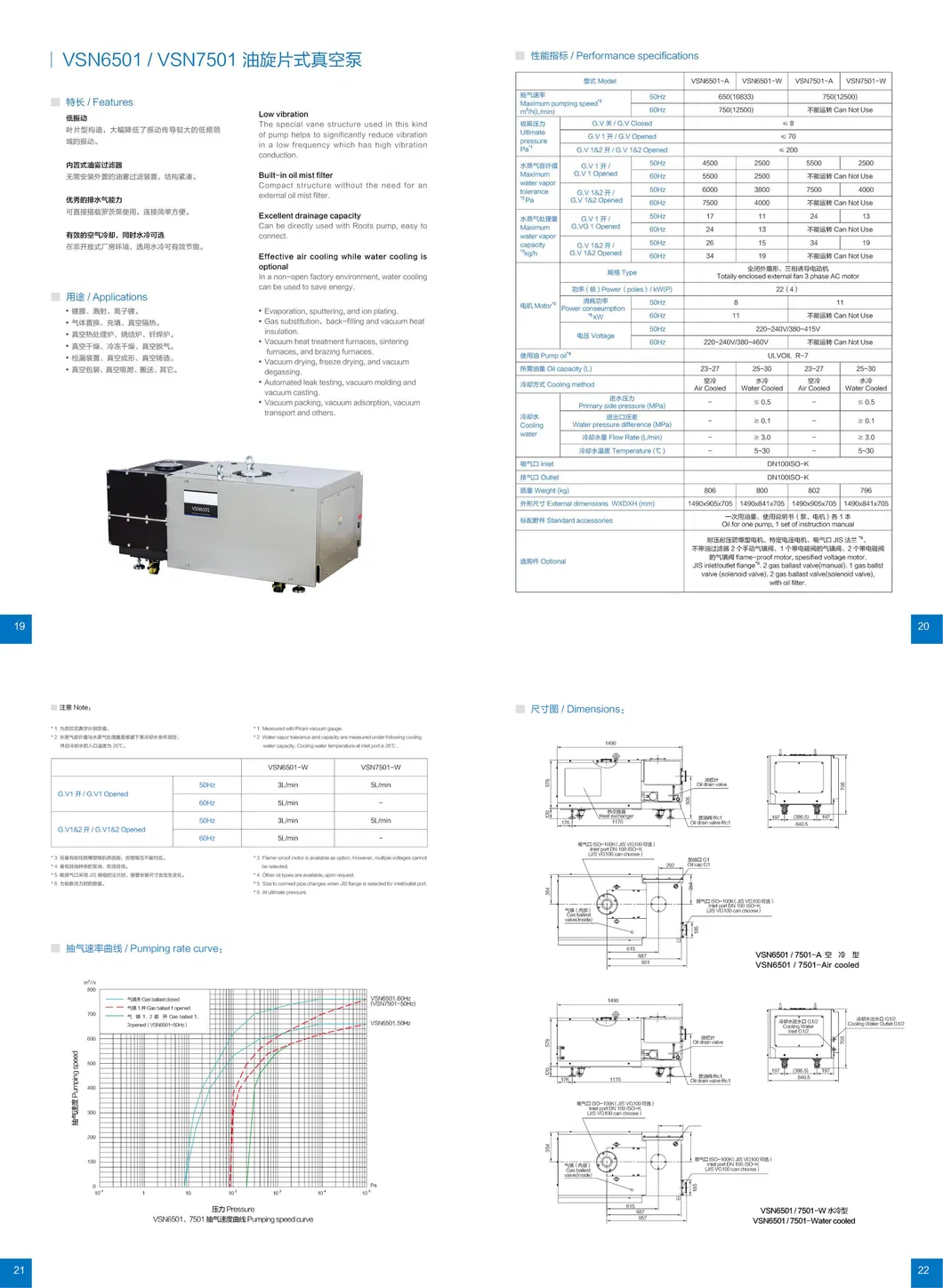

Ulvac Vsn6501 Vsn7501 Oil Rotary Vane Vacuum Pump
Model VSN6501-A VSN6501-W VSN7501-A VSN7501-W

Maximum pumping speed²
m³h(L/min)		 50Hz 650(10833) 750(12500)
60Hz 750(12500) Can Not Use

Ultimate
pressure
Pa		 G.V/G.V Closed ≤8
G.V1/G.V Opened ≤70
G.V 1&2/G.V 1&2 Opened ≤200

Maximum
water vapor
tolerance
2Pa		 G . V1/
G.V1 Opened		 50Hz 4500 2500 5500 2500
60Hz 5500 2500 Can Not Use
G.V 1&2/
G.V 1&2 Opened		 50Hz 6000 3800 7500 4000
60Hz 7500 4000 Can Not Use

Maximum
water vapor
capacity
*²kg/h		 G .V1/
G.VG 1 Opened		 50Hz 17 11 24 13
60Hz 24 13 Can Not Use
G.V 1&2/
G.V 1&2 Opened		 50Hz 26 15 34 19
60Hz 34 19 Can Not Use
Motor"³ Type ,
Totally enclosed external fan 3 phase AC motor
()Power(poles)/kW(P) 22(4)

Power conseumption
"6kW		 50Hz 8 11
60Hz 11 Can Not Use
Voltage 50Hz 220~240V/380~415V
60Hz 220~240V/380~460V Can Not Use
Pump oil ULVOIL R-7
Oil capacity(L) 23~27 25~30 23~27 25~30
Cooling method
Air Cooled
Water Cooled
Air Cooled
Water Cooled

Cooling
water
Primary side pressure(MPa)		 - ≤0.5 - ≤0.5

Water pressure difference(MPa)		 ≥0.1 ≥0.1
Flow Rate (L/min) - ≥3.0 ≥3.0
Temperature(ºC) 5~30 5~30
Inlet DN100ISO-K
Outlet DN100ISO-K
Weight(kg) 806 800 802 796
External dimensions WXDXH(mm) 1490x905x705 1490x841x705 1490x905x705 1490x841x705
Standard accessories ,(,)1
Oil for one pump,1 set of instruction manual
Optional ,,JIS5,
2,1,2
flame-proof motor,spesified voltage motor.
JIS inlet/outlet flange"5.2 gas ballast valve(manual).1 gas ballst
valve(solenoid valve).2 gas ballast valve(solenoid valve),
with oil filter.
