Ulvac Nb300b Nb600b Nb1200b Roots Vacuum Pump
Ulvac Nb300b Nb600b Nb1200b Roots Vacuum Pump
Ulvac Nb300b Nb600b Nb1200b Roots Vacuum Pump
Ulvac Nb300b Nb600b Nb1200b Roots Vacuum Pump
Ulvac Nb300b Nb600b Nb1200b Roots Vacuum Pump
Ulvac Nb300b Nb600b Nb1200b Roots Vacuum Pump
Ulvac Nb300b Nb600b Nb1200b Roots Vacuum Pump
Ulvac Nb300b Nb600b Nb1200b Roots Vacuum Pump
Ulvac Nb300b Nb600b Nb1200b Roots Vacuum Pump
Ulvac Nb300b Nb600b Nb1200b Roots Vacuum Pump
Ulvac Nb300b Nb600b Nb1200b Roots Vacuum Pump
Ulvac Nb300b Nb600b Nb1200b Roots Vacuum Pump
Specifications
Exhauster Method :
N/a
Work Function :
N/a
MOQ :
1
HS Code :
8414100090
Specification :
144 KG
Model NO. :
MSS-P-NB3006001200B
Vacuum Degree :
N/a
3 :
3
Oil or Not :
N/a
Working Conditions :
N/a
1 :
1
Trademark :
ULVAC
Price :
6250
2 :
2
Structure :
N/a
4 :
4
Origin :
China
Description

Welcome to Shanghai Mengsheng Sheng International Trade

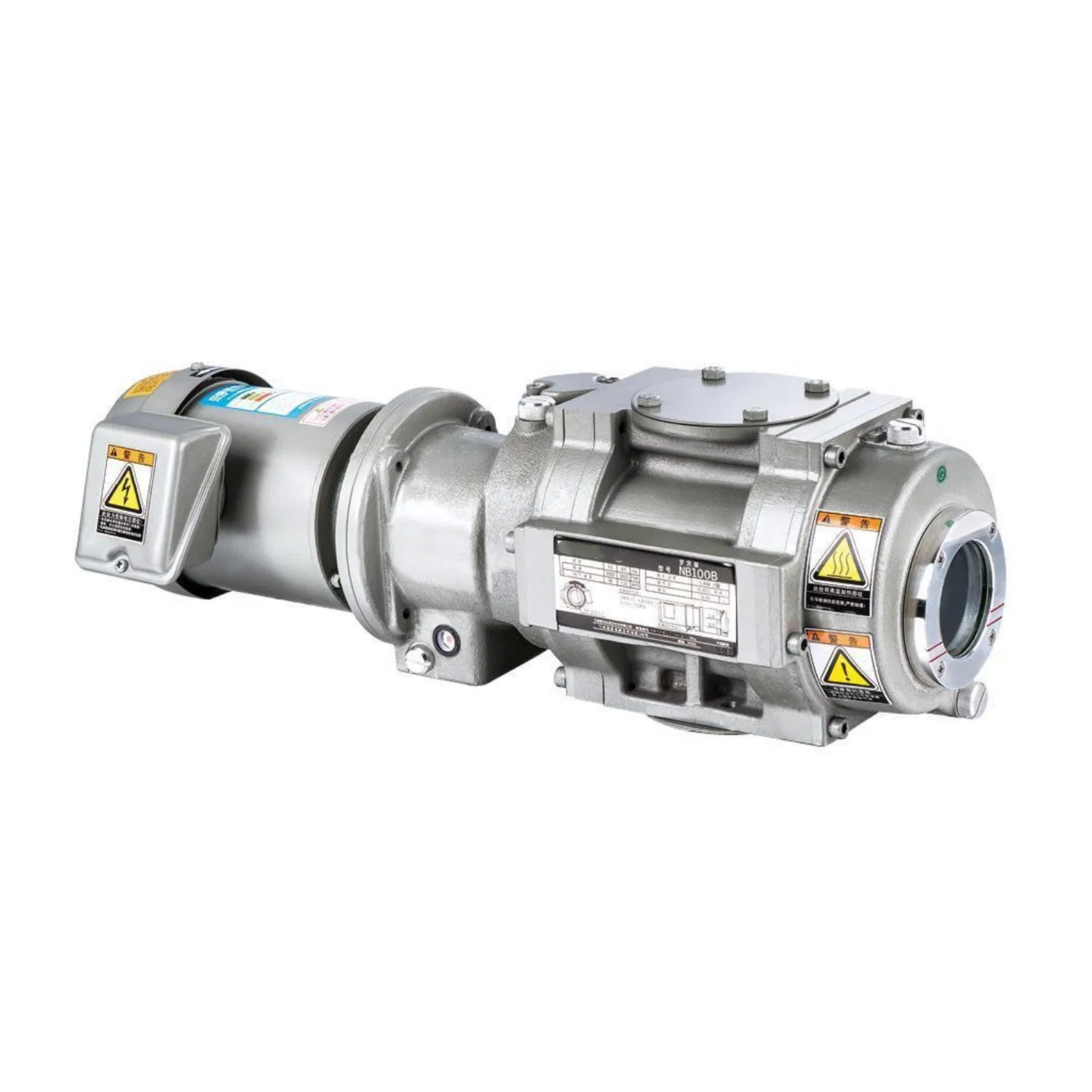

Name:ULVAC NB300B NB600B NB1200B Roots vacuum pump
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Description :
Oil-free:
Since no lubricating oil is used in the casing chamber, stable performance is realized even when evacuating water vapor or solvent vapors.

Operation at high inlet pressure:
If a motor larger than the standard motor is installed, the pumps are sufficiently applicable to systems having high gas loads, such as CO2, laser process.

Applications:
1.llluminate, electronics optics, semiconductor.
2.Evaporation, sputtering, ion plating, liquid crystal injector.
3.Vacuum drying, freeze drying, vacuum degassing.
4.Vacuum heat treatment furnaces, sintering furnaces, brazing furnaces.
5.Analytical instrument, leak testers, CO2 laser equipment vacuum dryers.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Your satisfaction and positive feedback is very significant to us.
Thank you! Have a nice day!

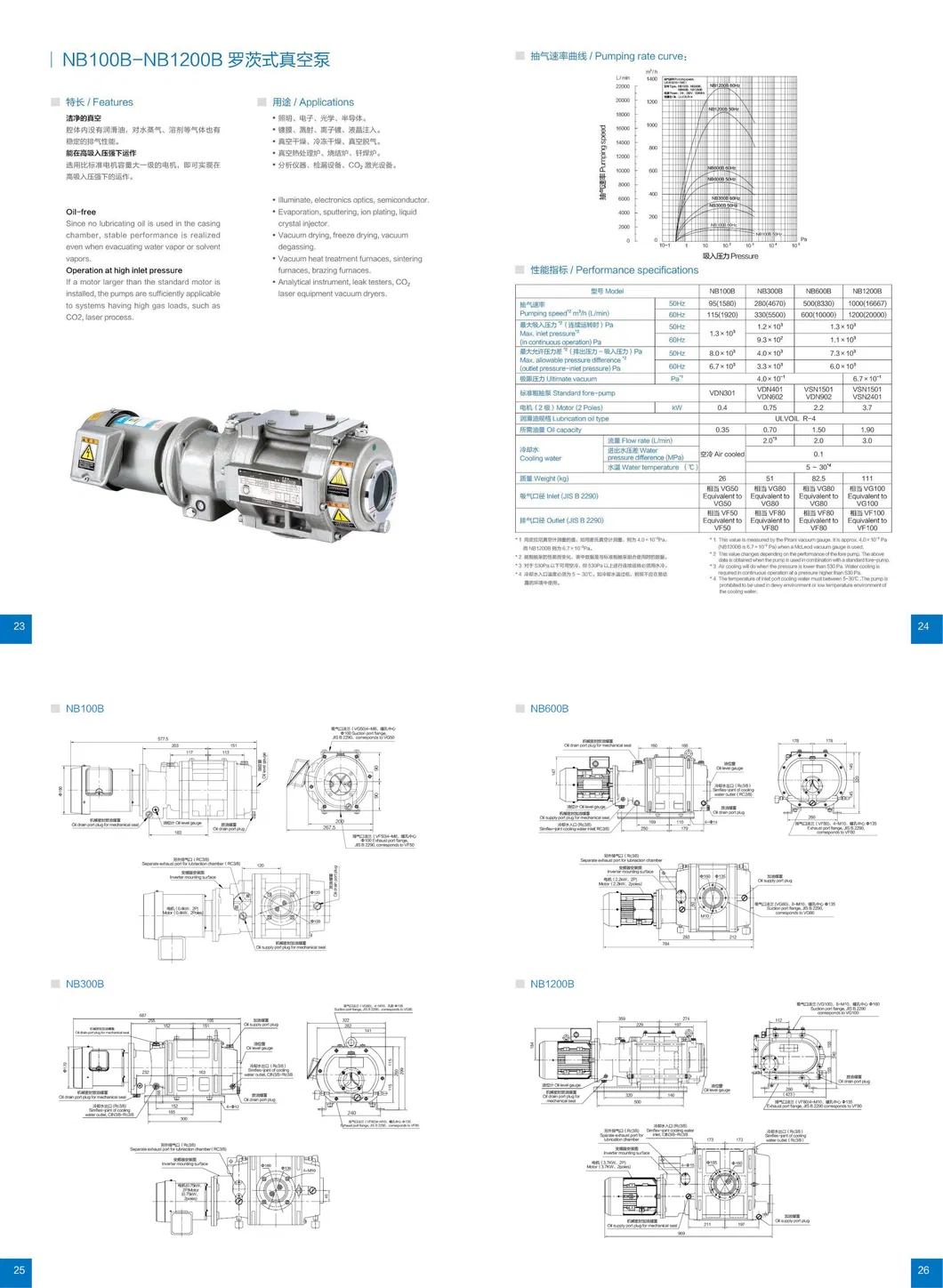

Product Description

Ulvac Nb300b Nb600b Nb1200b Roots Vacuum Pump

Model NB100B NB300B NB600B NB1200B

Pumping speed²m³/h(L/min)		 50Hz 95(1580) 280(4670) 500(8330) 1000(16667)
60Hz 115(1920) 330(5500) 600(10000) 1200(20000)
²()Pa
Max.inlet pressure²
(in continuous operation)Pa		 50Hz 1.3×10³ 1.2×10³ 1.3×10³
60Hz 9.3×10² 1.1×10³
2(-)Pa
Max.allowable pressure difference²
(outlet pressure-inlet pressure)Pa		 50Hz 8.0×10³ 4.0×10³ 7.3×10³
60Hz 6.7×10³ 3.3×10³ 6.0×10³
Ultimate vacuum Pa 4.0×10-1 6.7×10-1
Standard fore-pump VDN301 VDN401
VDN602		 VSN1501
VDN902		 VSN1501
VSN2401
(2)Motor(2 Poles) kW 0.4 0.75 2.2 3.7
Lubrication oil type ULVOIL R-4
Oil capacity 0.35 0.70 1.50 1.90

Cooling water		 Flow rate (L/min) Air cooled 2.0*³ 2.0 3.0
Water
pressure difference(MPa)		 0.1
Water temperature(ºC) 5~30*
Weight(kg) 26 51 82.5 111
Inlet(JIS B2290) VG50
Equivalent to
VG50		 VG80
Equivalent to
VG80		 VG80
Equivalent to
VG80		 VG100
Equivalent to
VG100
Outlet (JIS B2290) VF50
Equivalent to
VF50		 VF80
Equivalent to
VF80		 VF80
Equivalent to
VF80		 VF100
Equivalent to
VF100

Ulvac Nb300b Nb600b Nb1200b Roots Vacuum Pump

Ulvac Nb300b Nb600b Nb1200b Roots Vacuum Pump

Ulvac Nb300b Nb600b Nb1200b Roots Vacuum PumpUlvac Nb300b Nb600b Nb1200b Roots Vacuum Pump
