Specifications
MOQ :
1
Price :
1770
Description

Welcome to Shanghai Mengsheng Sheng International Trade
Name:ULVAC DA-241SF is a compact, high-performance, low-noise, and low vibration diaphragm dry pump

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Description :
Small size, high performance, low noise and low vibration diaphragm dry pump.
. It has abundant practical performance and achieves a standard model with lowprice.
. Simple structure and convenient maintenance.
. There are 1-stage exhaust mode and 2-stage exhaust mode.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Your satisfaction and positive feedback is very significant to us.
Thank you! Have a nice day!
Product Description


Ulvac Da-241sf Compact, High-Performance Low-Noise and Low Vibration Diaphragm Dry Pump

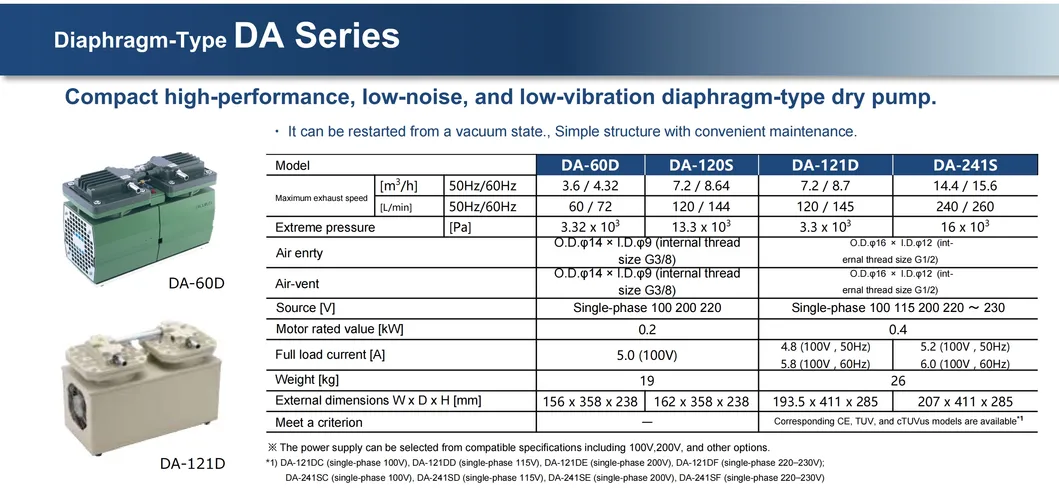

Model DA-60D DA-120S DA-121D DA-241S
Maximum exhaust speed [m³/h] 50Hz/60Hz 3.6/4.32 7.2/8.64 7.2/8.7 14.4/15.6
[L/min] 50Hz/60Hz 60/72 120/144 120/145 240/260
Extreme pressure [Pa] 3.32×10³ 13.3x10³ 3.3x10³ 16×10³
Air enrty O.D. φ14×1.D. φ9
(internal thread size G3/8)		 O.D. φ16×I.D. φ12
(internal thread size G1/2)
Air-vent O.D. φ14×I.D. φ9
(internal thread size G3/8)		 O.D. φ16×I.D. φ12
(internal thread size G1/2)
Source [V] Single-phase 100 200 220 Single-phase 100 115 200 220~230
Motor rated value [kW] 0.2 0.4
Full load current [A] 5.0 (100V) 4.8(100V,50Hz)
5.8(100V,60Hz)		 5.2(100V,50Hz)
6.0(100V,60Hz)
Weight [kg] 19 26
External dimensions WxD×H [mm] 156×358x 238 162x 358x238 193.5x411x 285 207x411×285
Meet a criterion Corresponding CE,TUV,and cTUVus models are available¹
