Ulvac Da-20DC Small High-Performance, Low-Noise, and Low Vibration Diaphragm Dry Pump
Ulvac Da-20DC Small High-Performance, Low-Noise, and Low Vibration Diaphragm Dry Pump
Ulvac Da-20DC Small High-Performance, Low-Noise, and Low Vibration Diaphragm Dry Pump
Ulvac Da-20DC Small High-Performance, Low-Noise, and Low Vibration Diaphragm Dry Pump
Ulvac Da-20DC Small High-Performance, Low-Noise, and Low Vibration Diaphragm Dry Pump
Ulvac Da-20DC Small High-Performance, Low-Noise, and Low Vibration Diaphragm Dry Pump
Ulvac Da-20DC Small High-Performance, Low-Noise, and Low Vibration Diaphragm Dry Pump
Ulvac Da-20DC Small High-Performance, Low-Noise, and Low Vibration Diaphragm Dry Pump
Ulvac Da-20DC Small High-Performance, Low-Noise, and Low Vibration Diaphragm Dry Pump
Ulvac Da-20DC Small High-Performance, Low-Noise, and Low Vibration Diaphragm Dry Pump
Ulvac Da-20DC Small High-Performance, Low-Noise, and Low Vibration Diaphragm Dry Pump
Ulvac Da-20DC Small High-Performance, Low-Noise, and Low Vibration Diaphragm Dry Pump
Specifications
Oil or Not :
N/a
Structure :
N/a
Vacuum Degree :
N/a
3 :
3
HS Code :
8414100090
Working Conditions :
N/a
4 :
4
1 :
1
Work Function :
N/a
2 :
2
Trademark :
ULVAC
Origin :
China
Model NO. :
MSS-P-DA-20DC
Price :
810
MOQ :
1
Exhauster Method :
N/a
Specification :
144 KG
Description

Welcome to Shanghai Mengsheng Sheng International Trade
Name:ULVAC DA-20DC small high-performance, low-noise, and low vibration diaphragm dry pump
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Description :
Small size, high performance, low noise and low vibration diaphragm dry pump.
. It has abundant practical performance and achieves a standard model with lowprice.
. Simple structure and convenient maintenance.
. There are 1-stage exhaust mode and 2-stage exhaust mode.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Your satisfaction and positive feedback is very significant to us.
Thank you! Have a nice day!
Product Description


Ulvac Da-20DC Small High-Performance, Low-Noise, and Low Vibration Diaphragm Dry Pump

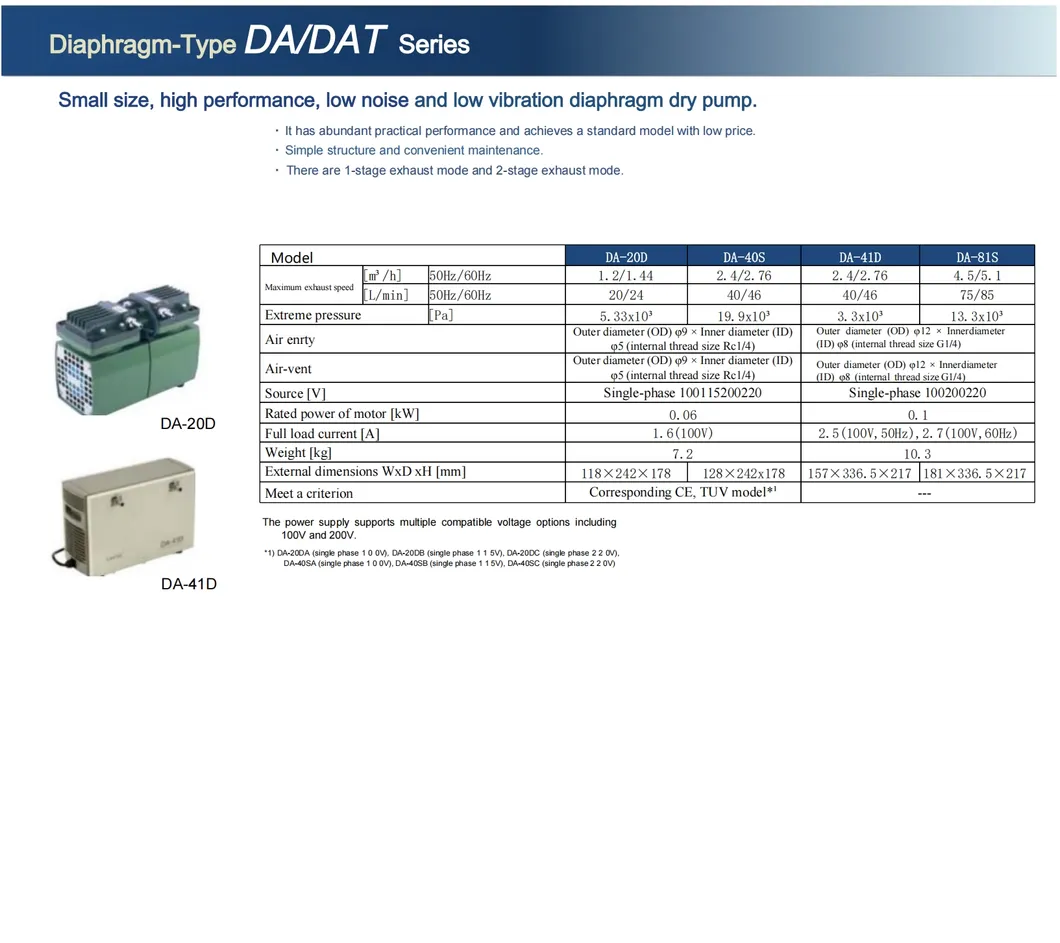

Model DA-20D DA-40S DA-41D DA-81S
Maximum exhaust speed [m³/h] 50Hz/60Hz 1.2/1.44 2.4/2.76 2.4/2.76 4.5/5.1
[L/min] 50Hz/60Hz 20/24 40/46 40/46 75/85
Extreme pressure [Pa] 5.33x10³ 19.9x10³ 3.3x10³ 13.3x10³
Air enrty Outer diameter(OD)φ9×Inner diameter (ID)φ5
(internal thread size Rc1/4)		 Outer diameter(OD)φ12×Innerdiameter (ID)φ8
(internal thread size G1/4)
Air-vent Outer diameter (OD)φ9×Inner diameter(ID) φ5
(internal thread size Rc1/4)		 Outer diameter (OD)φ12×Innerdiameter (ID)φ8
(internal thread size G1/4)
Source[V] Single-phase 100115200220 Single-phase 100200220
Rated power of motor [kW] 0.06 0.1
Full load current [A] 1.6(100V) 2.5(100V,50Hz),2.7(100V,60Hz)
Weight [kg] 7.2 10.3
External dimensions WxD xH[mm] 118×242×178 128×242x178 157×336.5×217 181×336.5×217
Meet a criterion Corresponding CE,TUV model*1 ---

Ulvac Da-20DC Small High-Performance, Low-Noise, and Low Vibration Diaphragm Dry Pump

Ulvac Da-20DC Small High-Performance, Low-Noise, and Low Vibration Diaphragm Dry Pump

Ulvac Da-20DC Small High-Performance, Low-Noise, and Low Vibration Diaphragm Dry PumpUlvac Da-20DC Small High-Performance, Low-Noise, and Low Vibration Diaphragm Dry Pump
