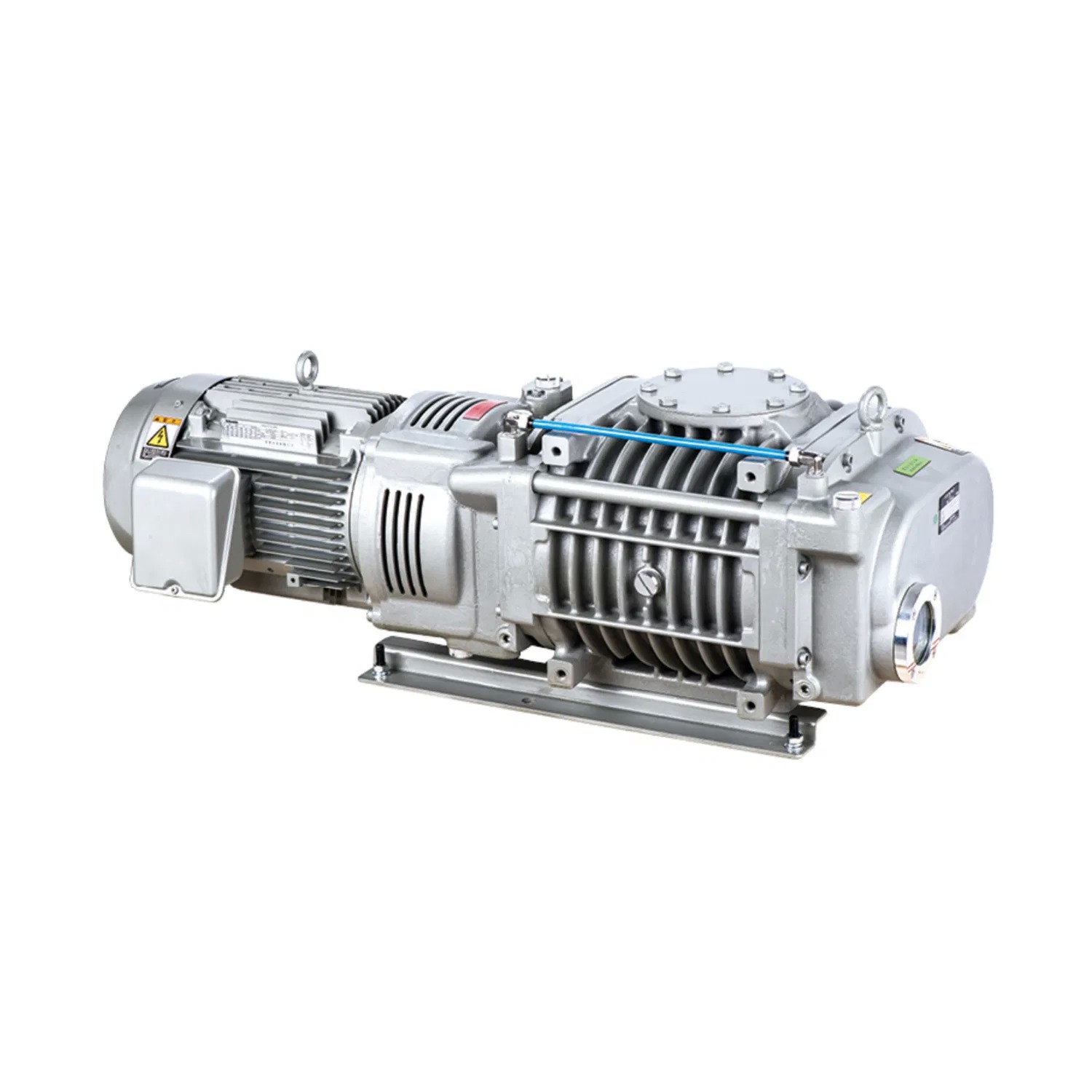

Ulvac Nb2400b Roots Vacuum Pump
Ulvac Nb2400b Roots Vacuum Pump
Ulvac Nb2400b Roots Vacuum Pump
Ulvac Nb2400b Roots Vacuum Pump
Ulvac Nb2400b Roots Vacuum Pump
Ulvac Nb2400b Roots Vacuum Pump
Ulvac Nb2400b Roots Vacuum Pump
Ulvac Nb2400b Roots Vacuum Pump
Ulvac Nb2400b Roots Vacuum Pump
Ulvac Nb2400b Roots Vacuum Pump
Ulvac Nb2400b Roots Vacuum Pump
Ulvac Nb2400b Roots Vacuum Pump
Specifications
Price :
13000
Working Conditions :
N/a
Structure :
N/a
1 :
1
3 :
3
Trademark :
ULVAC
Origin :
China
HS Code :
8414100090
Exhauster Method :
N/a
MOQ :
1
Oil or Not :
N/a
2 :
2
Work Function :
N/a
Specification :
144 KG
Model NO. :
MSS-P-NB2400B
4 :
4
Vacuum Degree :
N/a
Description

Welcome to Shanghai Mengsheng Sheng International Trade
Name:ULVAC NB2400B Roots vacuum pump
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Description :
Oil-free:
Since no lubricating oil is used in the casing chamber, stable performance is realized even when evacuating water vapor or solvent vapors.

Special surface treatment:
1.The surface of the main components is hard oxidized to improve corrosion resistance and reduce internal damage of the pump body.
2.This feature is optional and the surface of the standard is not processed.

Configure the inverter to shorten the exhaust time:
1.After the inverter is configured, it is started simultaneously with the rough pump, which effectively shortens the exhaust time compared with the standard pump.
2.This accessory is optional and the standard pump is not configured.

Applications:
1.Evaporation, sputtering, ion plating, liquid crystal injector.
2.Vacuum drying, freeze drying, vacuum degassing.
3.Analytical instrument, sealing device.
4.Vacuum heat treatment furnace, dissolution furnace.
5.Various other vacuum devices.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Your satisfaction and positive feedback is very significant to us.
Thank you! Have a nice day!

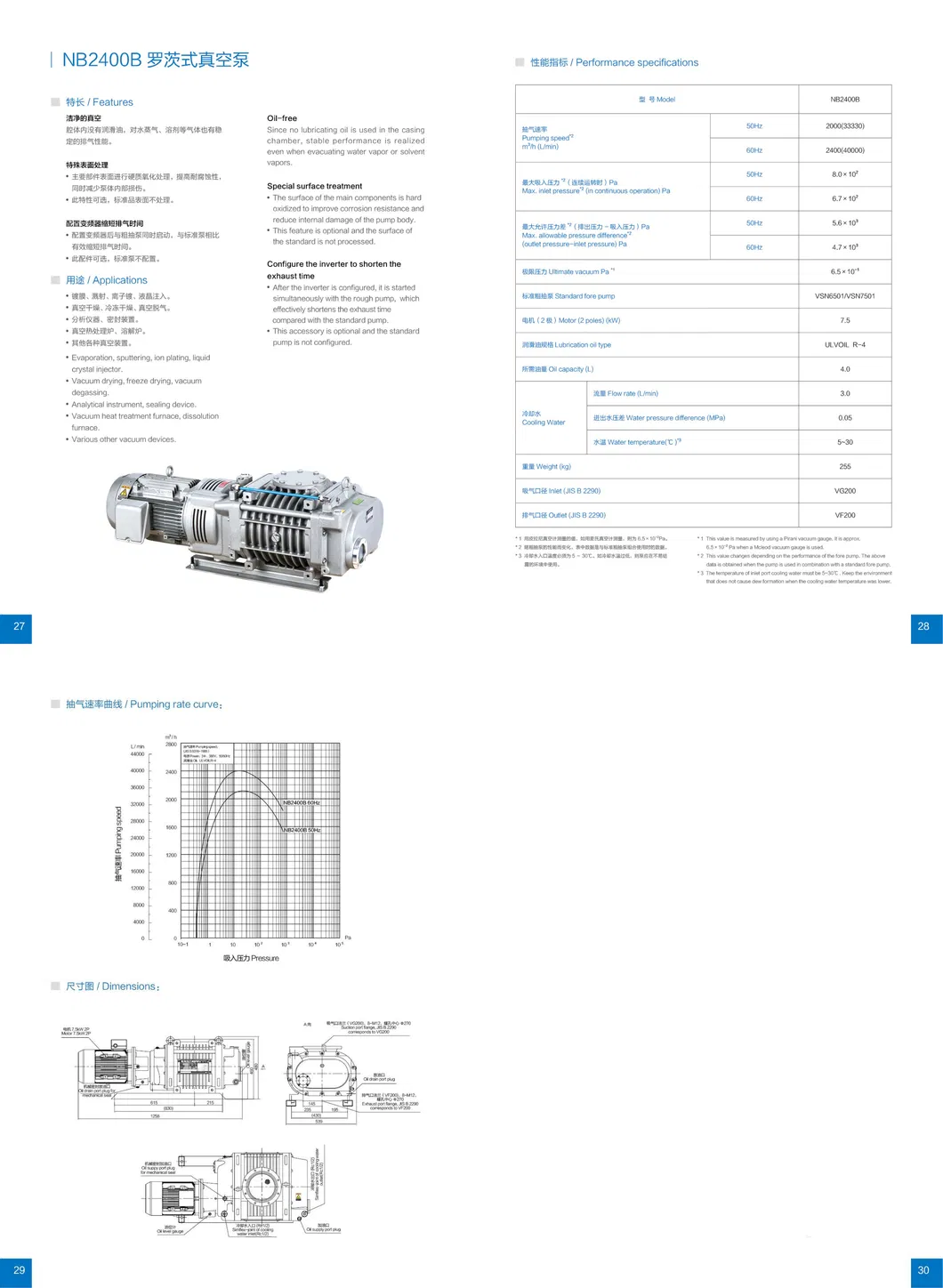

Product Description


Ulvac Nb2400b Roots Vacuum Pump
Model NB2400B

Pumping speed²
m³/h (L/min)		 50Hz 2000(33330)
60Hz 2400(40000)
²()Pa
Max.inlet pressure"²(in continuous operation)Pa		 50Hz 8.0×10²
60Hz 6.7×10²
2(-)Pa
Max.allowable pressure difference²
(outlet pressure-inlet pressure)Pa		 50Hz 5.6×10³
60Hz 4.7×10³
Ultimate vacuum Pa* 6.5×10-1
Standard fore pump VSN6501/VSN7501
(2)Motor (2 poles)(kW) 7.5
Lubrication oil type ULVOIL R-4
Oil capacity(L) 4.0

Cooling Water		 Flow rate(L/min) 3.0
Water pressure difference(MPa) 0.05
Water temperature(ºC) 5~30
Weight(kg) 255
Inlet(JIS B 2290) VG200
Outlet(JIS B 2290) VF200

Ulvac Nb2400b Roots Vacuum Pump

Ulvac Nb2400b Roots Vacuum Pump

Ulvac Nb2400b Roots Vacuum PumpUlvac Nb2400b Roots Vacuum Pump
