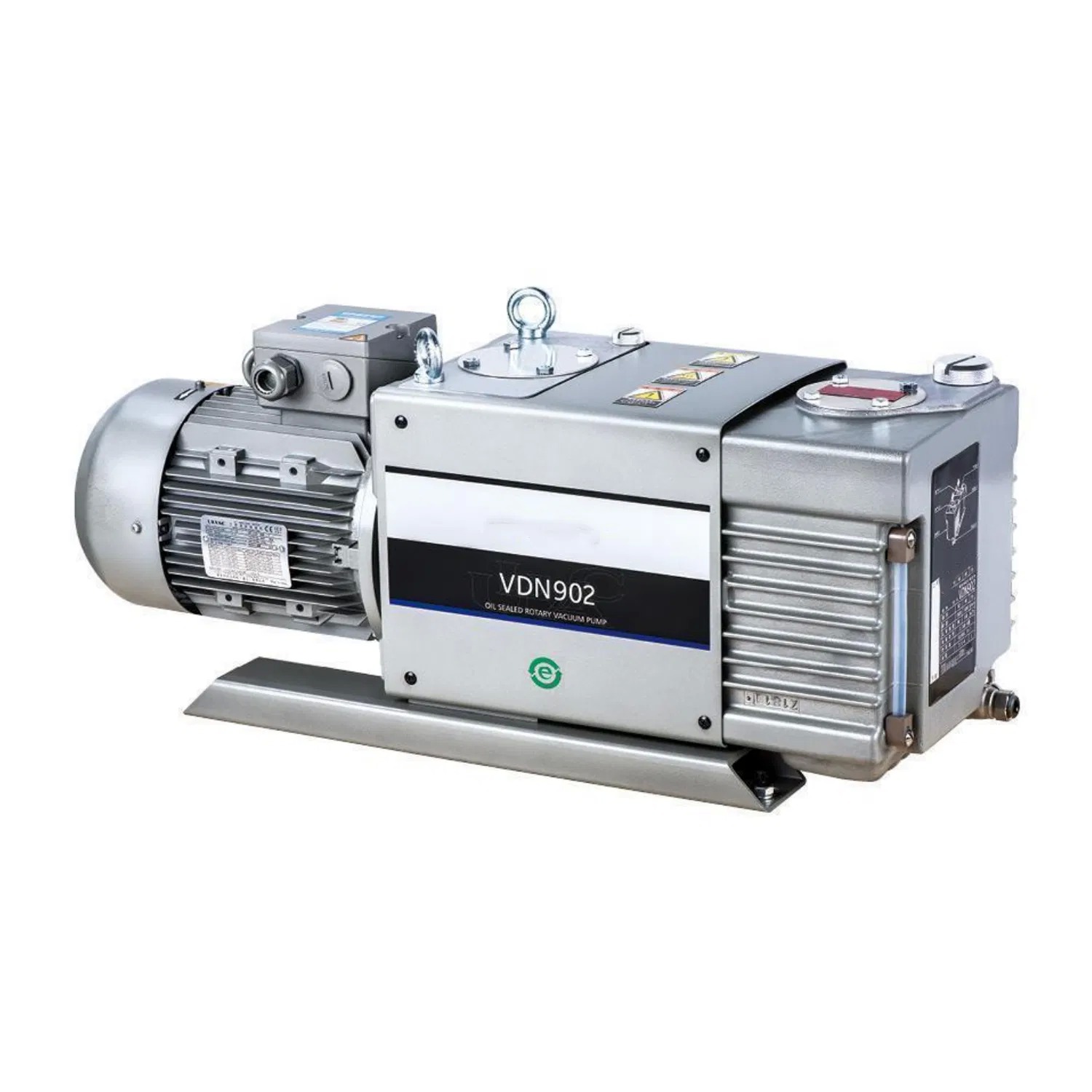

Ulvac Vdn602 Vdn902 Oil Rotary Vane Vacuum Pump
Ulvac Vdn602 Vdn902 Oil Rotary Vane Vacuum Pump
Ulvac Vdn602 Vdn902 Oil Rotary Vane Vacuum Pump
Ulvac Vdn602 Vdn902 Oil Rotary Vane Vacuum Pump
Ulvac Vdn602 Vdn902 Oil Rotary Vane Vacuum Pump
Ulvac Vdn602 Vdn902 Oil Rotary Vane Vacuum Pump
Ulvac Vdn602 Vdn902 Oil Rotary Vane Vacuum Pump
Ulvac Vdn602 Vdn902 Oil Rotary Vane Vacuum Pump
Ulvac Vdn602 Vdn902 Oil Rotary Vane Vacuum Pump
Ulvac Vdn602 Vdn902 Oil Rotary Vane Vacuum Pump
Ulvac Vdn602 Vdn902 Oil Rotary Vane Vacuum Pump
Ulvac Vdn602 Vdn902 Oil Rotary Vane Vacuum Pump
Specifications
2 :
2
Trademark :
ULVAC
Exhauster Method :
N/a
Vacuum Degree :
N/a
Model NO. :
MSS-P-VDN602902
Oil or Not :
N/a
Specification :
62 KG
3 :
3
1 :
1
HS Code :
8414100090
Work Function :
N/a
Working Conditions :
N/a
MOQ :
1
Structure :
N/a
Price :
2570
Origin :
China
4 :
4
Description

Welcome to Shanghai Mengsheng Sheng International Trade
Name:ULVAC VDN602 VDN902 oil rotary vane vacuum pump

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Description :
Low noise:
Optimized design achieved quiet running.

Easy maintenance:
Pump body can be removed without disconnecting the inlet vacuum pipes.
Checking, adding and changing oil are done at the same side of the pump to facilitate greater ease in performing routine maintenance and inspection. A variable oil volume is adopted to extend the complementary time of oil.

Forced oil circulation system ensures stable pumping speed around atmospheric pressure:
When equipped with optional oil mist trap and oil return mechanism, these pumps can run continuously at pressures equal to or below atmospheric pressure.

With CE certification

Applications:
1.Evaporation, sputtering and ion plating.
2.Gas substitution, back-filling and vacuum insulation.
3.Vacuum drying, freeze drying, vacuum degassing.
4.Analytical instruments and leak testers.
5.Vacuum packing, vacuum adsorption and transport, vacuum molding and vacuum casting.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Your satisfaction and positive feedback is very significant to us.
Thank you! Have a nice day!

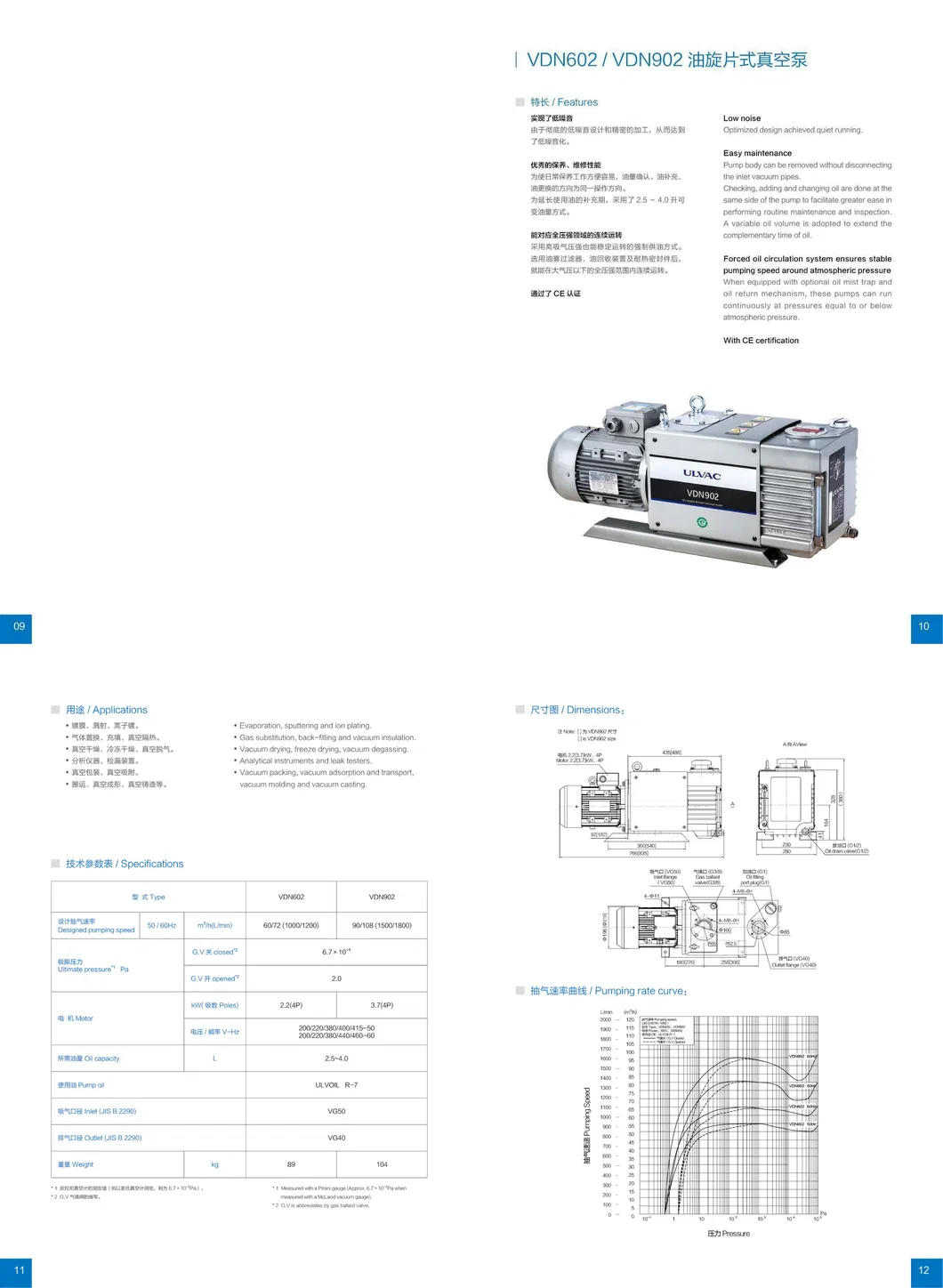

Product Description

Ulvac Vdn602 Vdn902 Oil Rotary Vane Vacuum Pump

Type VDN602 VDN902

Designed pumping speed		 50/60Hz m³/h(L/min) 60/72(1000/1200) 90/108(1500/1800)

Ultimate pressure¹Pa		 G.Vclosed² 6.7×10-¹
G.Vopened² 2.0
Motor kW(Poles) 2.2(4P) 3.7(4P)
/V-Hz 200/220/380/400/415-50
200/220/380/440/460-60
Oil capacity L 2.5~4.0
Pump oil ULVOIL R-7
Inlet(JIS B 2290) VG50
Outlet(JIS B 2290) VG40
Weight kg 89 104

Ulvac Vdn602 Vdn902 Oil Rotary Vane Vacuum PumpUlvac Vdn602 Vdn902 Oil Rotary Vane Vacuum Pump

Ulvac Vdn602 Vdn902 Oil Rotary Vane Vacuum PumpUlvac Vdn602 Vdn902 Oil Rotary Vane Vacuum Pump
