Specifications
MOQ :
1
Price :
1060
Description

Welcome to Shanghai Mengsheng Sheng International Trade

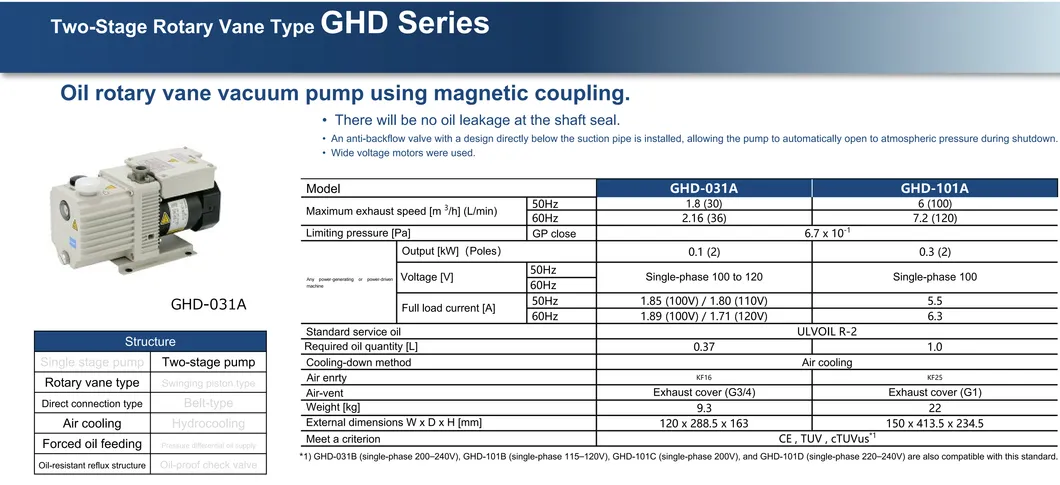

Name:ULVAC GHD-031B GHD-101D oil rotary vane vacuum pump using magnetic coupling
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Description :
Oil rotary vane vacuum pump using magnetic coupling
1.There will be no oil leakage at the shaft seal.
2.Equipped with an anti backflow valve directly below the exhaust pipe, the pump automatically opens to the atmosphere when stopped.
3.A wide voltage motor was used.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Your satisfaction and positive feedback is very significant to us.
Thank you! Have a nice day!
Product Description


Ulvac GHD (031B, 101D) Oil Rotary Vane Vacuum Pump Using Magnetic Coupling
Model GHD-031A GHD-101A
Maximum exhaust speed [m³/h](L/min) 50Hz 1.8(30) 6(100)
60Hz 2.16(36) 7.2(120)
Limiting pressure [Pa] GP close 6.7×10-¹
Any power-generating or power-diven
machine		 Output [kW](Poles) 0.1(2) 0.3(2)
Voltage [V] 50Hz Single-phase 100 to 120 Single-phase 100
60Hz
Full load current [A] 50Hz 1.85(100V)/1.80(110V) 5.5
60Hz 1.89(100V)/1.71(120V) 6.3
Standard service oil ULVOIL R-2
Required oil quantity [L] 0.37 1.0
Cooling-down method Air cooling
Air enrty KF16 KF25
Air-vent Exhaust cover(G3/4) Exhaust cover (G1)
Weight [kg] 9.3 22
External dimensions W×D×H [mm] 120×288.5x163 150x413.5x234.5
Meet a criterion CE,TUV,cTUVus
