M8 5 Pin B Code IP67 Waterproof Industrial Connector
M8 5 Pin B Code IP67 Waterproof Industrial Connector
M8 5 Pin B Code IP67 Waterproof Industrial Connector
M8 5 Pin B Code IP67 Waterproof Industrial Connector
Specifications
Model Number :
H0805BFA-0
Place of Origin :
Guangdong, China
MOQ :
50 pieces
Price :
Negotiable
Brand Name :
KRONZ
Certification :
CE
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Standard :
IEC 61076-2-104
Contact nut material :
Brass, nickle-plated
Contact surface material :
Brass, gold-plated
Contact carrier material :
PA, black
Pollution degree :
3
Ambient temperature :
-25~+85℃
Endurance(shell) :
>100 cycles
Degree of protectionProduct Description :
IP67
Description

M8 Connector 5 Pin B Code Waterproof IP67 Industrial Circular Connectors for Sensors


This M8 5-Pin B-Coded Circular Connector is a compact, durable, and waterproof solution designed for industrial signal and data transmission. Engineered to IP67 standards, it provides a secure and reliable connection in harsh environments. Commonly used in sensor, fieldbus, and I/O applications, it ensures safe operation in automation and control systems.


Product Application

  • Industrial robotics
  • Medical sensor networks
  • Process automation and control
  • Equipment requiring power and data connectivity


M8 5 Pin B Code IP67 Waterproof Industrial Connector



Technical Parameters

Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67


Pin assignment Connection method Coding Rated current Voltage Cable outlet External cable diameter Model No.
M8 5 Pin B Code IP67 Waterproof Industrial Connector Screw connection A 3A 30V Angled 3.5-5mm H0805BFA-0

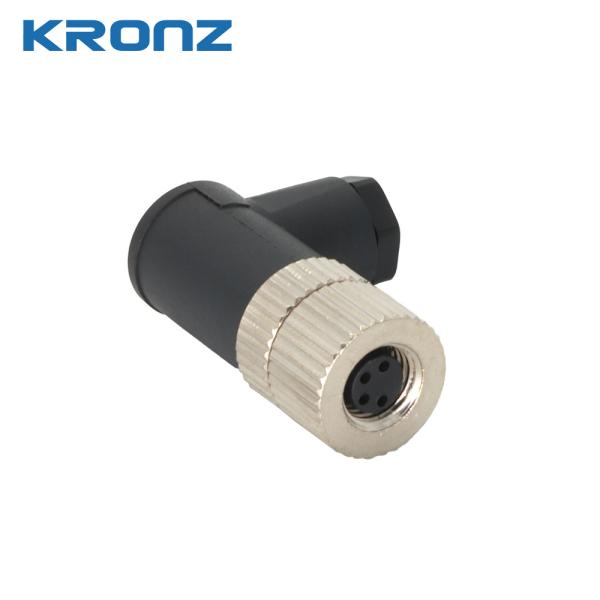

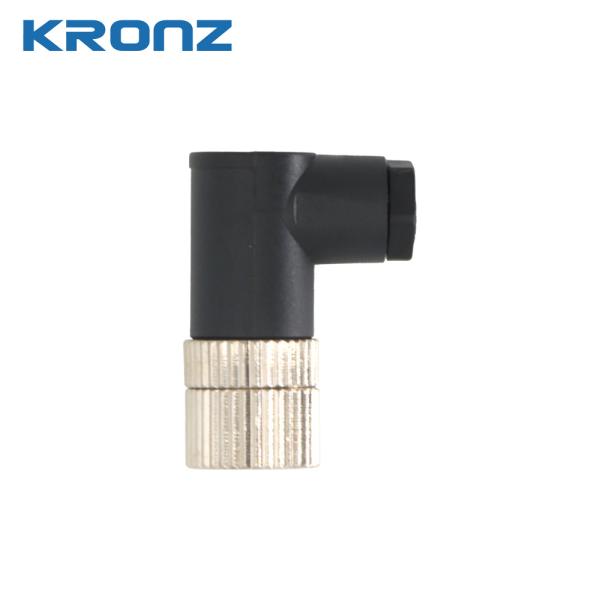

Product Images

M8 5 Pin B Code IP67 Waterproof Industrial Connector


Support and Services

The KRONZ Connector product technical support and services include:

- Assistance with product installation and setup

- Troubleshooting and problem resolution

- Product updates and firmware upgrades

- Warranty and repair services

- Technical documentation and resources such as user manuals and datasheets

- Training and education on product features and capabilities


FAQ

Q: Where is this product manufactured?

A: This product is manufactured in Guangdong, China.

Q: Does this product have any certifications?

A: Yes, this product is CE certified.

Q: What is the minimum order quantity for this product?

A: The minimum order quantity for this product is 80.

Q: Is the price of this product negotiable?

A: Yes, we will offer different price according the quantity.

Q: How is this product packaged?

A: This product is packaged in polybag packing, export carton.

Q: What is the delivery time for this product?

A: The delivery time for this product is 5-8 working days for MOQ 80pcs, if more quantity, please contact with seller.

Q: What payment terms are accepted for this product?

A: The payment terms accepted for this product are T/T, Western Union, and MoneyGram.

Q: What is the supply ability of this product?

A: The supply ability of this product is 100000 pieces per month
