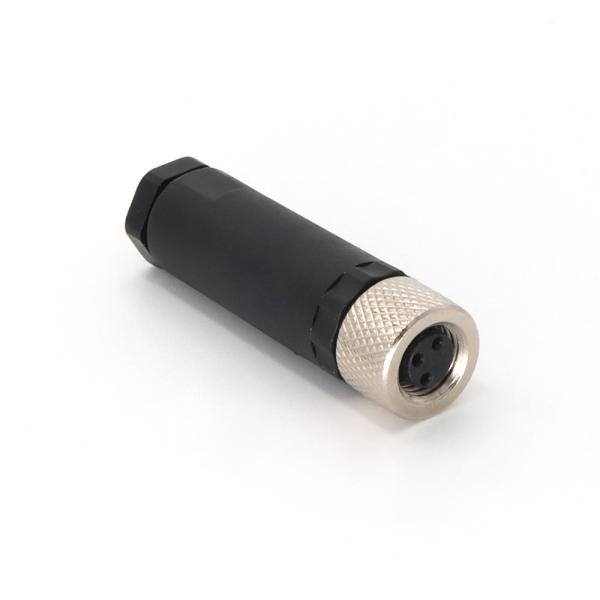

M8 4 Pin Female Field Wireable Connector IP67 IEC 61076-2-104
M8 4 Pin Female Field Wireable Connector IP67 IEC 61076-2-104
M8 4 Pin Female Field Wireable Connector IP67 IEC 61076-2-104
M8 4 Pin Female Field Wireable Connector IP67 IEC 61076-2-104
Specifications
Model Number :
H0804F-0
Place of Origin :
Guangdong, China
MOQ :
50 pieces
Price :
Negotiable
Brand Name :
KRONZ
Certification :
CE
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Product name :
M8 Field Wirable Assembly Connector
Contact nut material :
Brass, nickle-plated
Contact carrier material :
PA, black
Housing material :
PBT/PA, black
Seal material :
FPM/FKM
Insulation Resistance :
≥ 100MΩ
Ambient temperature :
-25~+85℃
Degree of protection :
IP67
Description

IEC 61076-2-104 M8 Connector Field-wireable Assembly Connectors 4 Pin Female Waterproof


The 4-Pin M8 Female Connector is a robust, field-wireable circular connector designed for reliable signal and data transmission in industrial automation, sensors, actuators, and control systems. Compliant with IEC 61076-2-104 standards, this compact connector ensures high-performance connectivity even in harsh environments.


Features:

  • Connector Type: M8 circular connector

  • Pin Configuration: 4-pole (female)

  • Wiring Method: Field wireable / screw termination – no soldering required

  • Cable Diameter Range: Typically 4 – 6 mm (varies by model)

  • Rated Current: Up to 4A (depending on wire gauge)

  • Rated Voltage: Up to 60V AC/DC

  • Contact Material: Gold-plated brass or phosphor bronze

  • Insulation Resistance: ≥ 100 MΩ

  • Ingress Protection: IP67 or higher (dust-tight and water-resistant when mated)

  • Shell Material: Nickel-plated brass or PA (polyamide) for rugged durability

  • Operating Temperature: -25°C to +85°C (may vary slightly by model)

  • Standards Compliance: Fully compliant with IEC 61076-2-104


Product Images

M8 4 Pin Female Field Wireable Connector IP67 IEC 61076-2-104

M8 4 Pin Female Field Wireable Connector IP67 IEC 61076-2-104

M8 4 Pin Female Field Wireable Connector IP67 IEC 61076-2-104

Technical Parameters

Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material PBT/PA, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67


Pin assignment Connection method Coding Rated current Voltage Cable outlet External cable diameter Model No.
M8 4 Pin Female Field Wireable Connector IP67 IEC 61076-2-104 Screw connection A 3A 60V Straight 3.5-5mm H0804F-0
