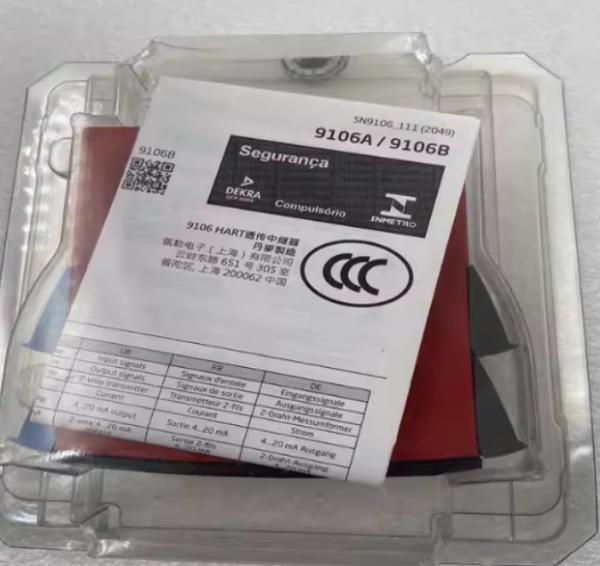

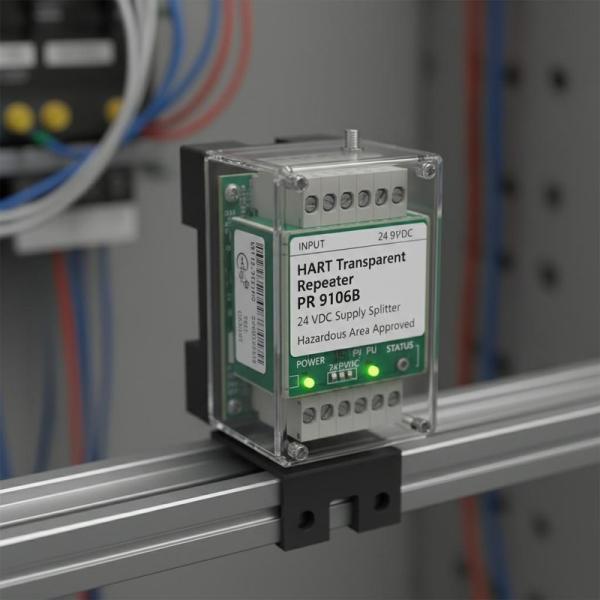

DIN Rail Mount HART Transparent Repeater PR 9106B 24 VDC Supply With Splitter Function
DIN Rail Mount HART Transparent Repeater PR 9106B 24 VDC Supply With Splitter Function
DIN Rail Mount HART Transparent Repeater PR 9106B 24 VDC Supply With Splitter Function
DIN Rail Mount HART Transparent Repeater PR 9106B 24 VDC Supply With Splitter Function
DIN Rail Mount HART Transparent Repeater PR 9106B 24 VDC Supply With Splitter Function
DIN Rail Mount HART Transparent Repeater PR 9106B 24 VDC Supply With Splitter Function
DIN Rail Mount HART Transparent Repeater PR 9106B 24 VDC Supply With Splitter Function
DIN Rail Mount HART Transparent Repeater PR 9106B 24 VDC Supply With Splitter Function
DIN Rail Mount HART Transparent Repeater PR 9106B 24 VDC Supply With Splitter Function
DIN Rail Mount HART Transparent Repeater PR 9106B 24 VDC Supply With Splitter Function
Specifications
Brand Name :
PR
Model Number :
PR 9106B
Certification :
CO
Place of Origin :
Denmark
MOQ :
1
Price :
100-200usd
Payment Terms :
T/T
Supply Ability :
99pcs 4-6 weeks
Delivery Time :
5-7 work days
Operatingtemperaturerange :
-40°C to +85°C
Weight :
Approx. 150g
Inputvoltagerange :
12V to 250V AC/DC
Isolationvoltage :
2500V RMS
Protectiontype :
Intrinsic Safety (Ex i)
Numberofchannels :
1 or 2 channels
Mountingtype :
DIN Rail Mount
Responsetime :
Less than 1ms
Housingmaterial :
Flame-retardant polycarbonate
Productname :
Intrinsic Safety Barriers
Application :
Hazardous area signal isolation and protection
Powerdissipation :
Max 1.5W
Dimensions :
115mm x 22.5mm x 110mm
Outputcurrent :
Up to 250mA
Description
HART Transparent Repeater PR 9106B
Key Features
  • 24 VDC supply via power rail or connectors
  • Active and passive mA input capability
  • Active or passive output via the same two terminals
  • Splitter function - 1 input and 2 outputs
  • SIL 2 / SIL 3 certified for safety applications
Environmental Conditions
Operating temperature -20°C to +60°C
Storage temperature -20°C to +85°C
Calibration temperature 20...28°C
Relative humidity < 95% RH (non-condensing)
Protection degree IP20
Installation environment Pollution degree 2 & measurement/overvoltage category II
Mechanical Specifications
Dimensions (HxWxD) 109 x 23.5 x 104 mm
Dimensions with PR 4500 109 x 23.5 x 131 mm
Weight approx. 250 g
DIN rail type DIN EN 60715/35 mm
Wire size 0.13...2.08 mm² AWG 26...14 stranded wire
Screw terminal torque 0.5 Nm
Electrical Specifications
Power Supply
Supply voltage 19.2...31.2 VDC
Fuse 1.25 A SB / 250 VAC
Max. required power ≤ 1.1 W / ≤ 1.9 W (1 ch. / 2 ch.)
Max. power dissipation ≤ 0.8 W / ≤ 1.2 W (1 ch. / 2 ch.)
Isolation Voltage
Input to any (Test/Working) 2.6 kVAC / 300 VAC reinforced isolation
Analog output to supply 2.6 kVAC / 300 VAC reinforced isolation
Status relay to supply 1.5 kVAC / 150 VAC reinforced isolation
Performance Characteristics
Response time (0...90%, 100...10%) < 5 ms
Signal dynamics, input/output Analog signal chain
SMART bi-directional communication 0.5...7.5 kHz
Signal / noise ratio > 60 dB
Accuracy Better than 0.1% of selected range
mA, absolute accuracy ≤ ±16 μA
mA, temperature coefficient ≤ ±1.6 μA / °C
Input Specifications
Current Input
Measurement range 3.5...23 mA
2-wire transmitter supply 9106B1x (Uo = 27.5 VDC) >16 V / 20 mA
2-wire transmitter supply 9106B2x (Uo = 25.3 VDC) >15 V / 20 mA
Sensor error detection: Loop break 4...20 mA < 1 mA
Input voltage drop, supplied unit < 4 V @ 23 mA
Input voltage drop, non-supplied unit < 6 V @ 23 mA
Output Specifications
Current Output
Signal range 3.5...23 mA
Load (@ current output) ≤ 600 Ω
Load stability ≤ 0.01% of span / 100 Ω
Current limit ≤ 28 mA
Status Relay
Relay function N.C. (Normally Closed)
Programmable low setpoint 0...29.9 mA
Programmable high setpoint 0...29.9 mA
Hysteresis for setpoints 0.1 mA
Certifications and Approvals
ATEX DEKRA 11ATEX0244 X
IECEx DEK 11.0084X
UKEX DEKRA 21UKEX0171X DEKRA 23UKEX0107X
FM US FM16US0465X / FM16CA0213X
INMETRO DEKRA 23.0003X
UL 61010-1 E314307
UL 913 E233311 (only 9106xxx-U9)
CCC 2020322309003231
KCs 21_AV4BO_0167X / 21_AV4BO_0168X (only 9106Bxx-KCs)
EAC Ex EAEU KZ 7500361.01.01.08756
DNV Marine TAA00000JD
ClassNK TA24034M
SIL Certification SIL 2 / SIL 3 certified & fully assessed according to IEC 61508
Compliance Standards
EMC 2014/30/EU & UK SI 2016/1091
LVD 2014/35/EU & UK SI 2016/1101
ATEX 2014/34/EU & UK SI 2016/1107
RoHS 2011/65/EU & UK SI 2012/3032
EAC TR-CU 020/2011
EAC Ex TR-CU 012/2011
EAC LVD TR-CU 004/2011
