20Hz Ex Solenoid / Alarm Driver PR 5203B-U9 1 / 2 Channel UL 913 Approved
20Hz Ex Solenoid / Alarm Driver PR 5203B-U9 1 / 2 Channel UL 913 Approved
20Hz Ex Solenoid / Alarm Driver PR 5203B-U9 1 / 2 Channel UL 913 Approved
20Hz Ex Solenoid / Alarm Driver PR 5203B-U9 1 / 2 Channel UL 913 Approved
20Hz Ex Solenoid / Alarm Driver PR 5203B-U9 1 / 2 Channel UL 913 Approved
20Hz Ex Solenoid / Alarm Driver PR 5203B-U9 1 / 2 Channel UL 913 Approved
20Hz Ex Solenoid / Alarm Driver PR 5203B-U9 1 / 2 Channel UL 913 Approved
20Hz Ex Solenoid / Alarm Driver PR 5203B-U9 1 / 2 Channel UL 913 Approved
Specifications
Brand Name :
PR
Model Number :
PR 5203B-U9
Certification :
CO
Place of Origin :
Denmark
MOQ :
1
Price :
150-300usd
Payment Terms :
T/T
Supply Ability :
99pcs 4-6 weeks
Delivery Time :
5-7 work days
Isolationvoltage :
250 V AC
Outputvoltage :
24 V DC
Ingressprotectionrating :
IP20
Dimensions :
115 mm x 22.5 mm x 75 mm
Housingmaterial :
Polycarbonate
Currentrating :
100 mA to 500 mA
Mountingtype :
DIN Rail
Inputvoltagerange :
10-30 V DC
Powerdissipation :
Max 1.5 W
Safetystandardscompliance :
IEC 60079-11
Operatingtemperaturerange :
-40°C to +70°C
Productname :
Intrinsic Safety Barriers
Responsetime :
Less than 1 ms
Numberofchannels :
1 or 2 channels
Description

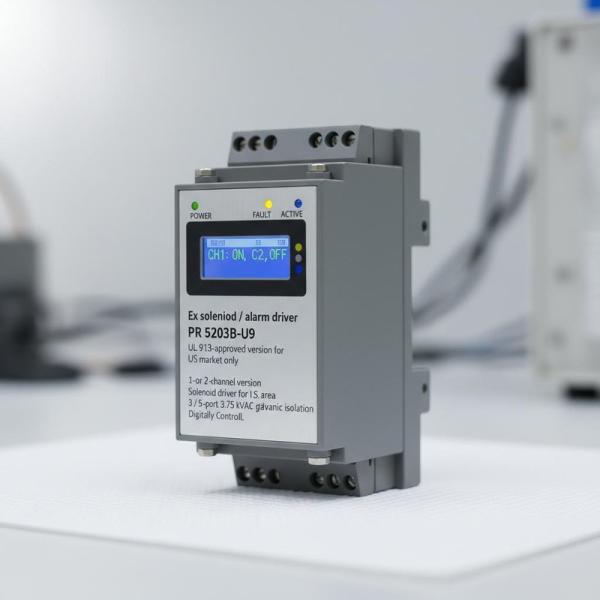

Ex Solenoid / Alarm Driver PR 5203B-U9
UL 913-approved version for US market only. Features 1- or 2-channel configuration as solenoid driver for intrinsically safe areas with 3.75 kVAC galvanic isolation and digital control.
Product Overview
  • 1- or 2-channel solenoid driver for intrinsically safe areas
  • 3.75 kVAC galvanic isolation (3-/5-port configuration)
  • Digitally controlled operation
  • UL 913-approved for US market
  • Maximum frequency: 20 Hz
Environmental Specifications
Operating temperature -20°C to +60°C
Calibration temperature 20...28°C
Relative humidity < 95% RH (non-condensing)
Protection degree IP20
Mechanical Specifications
Dimensions (HxWxD) 109 x 23.5 x 130 mm
Weight approx. 230 g
DIN rail type DIN EN 60715/35 mm
Wire size 0.13...2.08 mm² AWG 26...14 stranded wire
Screw terminal torque 0.5 Nm
Electrical Specifications
Power Supply
Supply voltage, universal 21.6...253 VAC, 50...60 Hz or 19.2...300 VDC
Fuse 400 mA SB / 250 VAC
Max. required power ≤ 4 W (2 channels)
Internal power dissipation ≤ 2 W (2 channels)
Isolation Voltage
Isolation voltage, test / working 3.75 kVAC / 250 VAC
PELV/SELV IEC 61140
Input Specifications
NPN and Mechanical Switch
Trigger level LOW ≤ 4.0 VDC
Trigger level HIGH ≥ 7.0 VDC
Max. external voltage 28 VDC
Input impedance 3.48 kΩ
PNP
Trigger level LOW ≤ 4.0 VDC
Trigger level HIGH ≥ 7.0 VDC
Max. external voltage 28 VDC
Input impedance 3.48 kΩ
Output Specifications
Output voltage See I.S. data in manual
Output current See I.S. data in manual
Output ripple < 40 mVRMS
Compliance & Approvals
Authority Requirements
EMC 2014/30/EU
LVD 2014/35/EU
Certifications
c UL us, UL 508 05122003-E233311
c UL us, UL 913 05122003-E233311
Programming: DIP switches
EMC immunity influence: < ±0.5% of span
Extended EMC immunity: NAMUR NE21, A criterion, burst < ±1% of span
