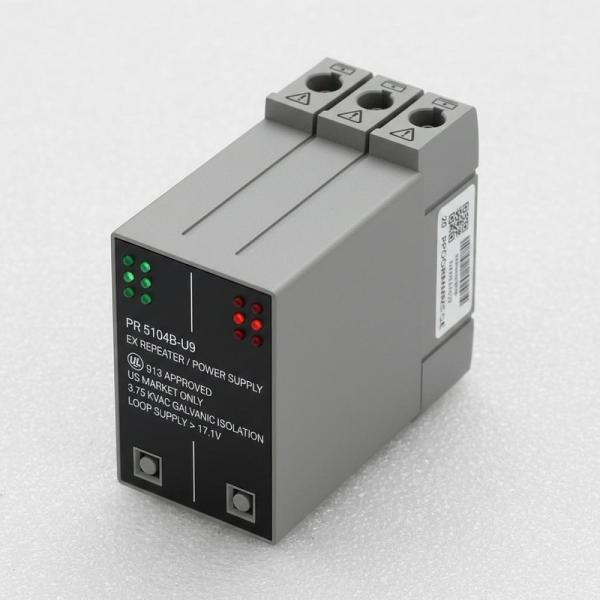

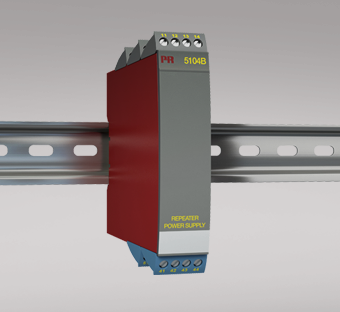

PR 5104B-U9 Ex Repeater / Power Supply UL 913 Approved 1- / 2- Channel Version
PR 5104B-U9 Ex Repeater / Power Supply UL 913 Approved 1- / 2- Channel Version
PR 5104B-U9 Ex Repeater / Power Supply UL 913 Approved 1- / 2- Channel Version
PR 5104B-U9 Ex Repeater / Power Supply UL 913 Approved 1- / 2- Channel Version
PR 5104B-U9 Ex Repeater / Power Supply UL 913 Approved 1- / 2- Channel Version
PR 5104B-U9 Ex Repeater / Power Supply UL 913 Approved 1- / 2- Channel Version
PR 5104B-U9 Ex Repeater / Power Supply UL 913 Approved 1- / 2- Channel Version
PR 5104B-U9 Ex Repeater / Power Supply UL 913 Approved 1- / 2- Channel Version
Specifications
Brand Name :
PR
Model Number :
PR 5104B-U9
Certification :
CO
Place of Origin :
Denmark
MOQ :
1
Price :
100-500usd
Payment Terms :
T/T
Supply Ability :
99pcs 4-6 weeks
Delivery Time :
5-7 work days
Ingressprotection :
IP20
Isolationvoltage :
2500 V AC
Productname :
Intrinsic Safety Barriers
Outputvoltage :
Maximum 30 V DC
Dimensions :
115 mm x 22.5 mm x 110 mm
Inputvoltagerange :
10-30 V DC
Outputcurrent :
Maximum 100 mA
Safetyapprovals :
Ex ia IIC, Ex ia IIB
Weight :
150 g
Mountingtype :
DIN Rail Mount
Housingmaterial :
Flameproof Aluminum
Responsetime :
Less than 1 ms
Operatingtemperaturerange :
-40°C to +70°C
Powerdissipation :
Less than 1 W
Description
Ex Repeater / Power Supply PR 5104B-U9
UL 913-approved version for US market only
1- or 2-channel version available
3-/5-port 3.75 kVAC galvanic isolation
Loop supply > 17.1 V in hazardous area
20 programmable configurations
Environmental Conditions
Operating temperature -20°C to +60°C
Calibration temperature 20...28°C
Relative humidity < 95% RH (non-condensing)
Protection degree IP20
Mechanical Specifications
Dimensions (HxWxD) 109 x 23.5 x 130 mm
Weight approx. 225 g
DIN rail type DIN EN 60715/35 mm
Wire size 0.13...2.08 mm² AWG 26...14 stranded wire
Screw terminal torque 0.5 Nm
Vibration IEC 60068-2-6
2...13.2 Hz: ±1 mm
13.2...100 Hz: ±0.7 g
Common Specifications
Supply
Supply voltage, universal 21.6...253 VAC, 50...60 Hz or 19.2...300 VDC
Fuse 400 mA SB / 250 VAC
Max. required power ≤ 3 W (2 channels)
Internal power dissipation ≤ 2 W (2 channels)
Isolation Voltage
Isolation voltage, test / working 3.75 kVAC / 250 VAC
PELV/SELV IEC 61140
Auxiliary Supplies
2-wire supply (pin 44...42 and 54...52): 28...17.1 VDC / 0...20 mA
Response Time & Performance
Response time (0...90%, 100...10%) < 25 ms
Programming DIP switches
Signal / noise ratio Min. 60 dB (0...100 kHz)
Accuracy Better than 0.1% of selected range
EMC immunity influence < ±0.5% of span
Extended EMC immunity: NAMUR NE21, A criterion, burst < ±1% of span
Input Specifications
Common Input Specifications
Max. offset: 20% of max. value
Current Input
Measurement range 0...23 mA
Min. measurement range (span) 16 mA
Input resistance Nom. 10 Ω + PTC 10 Ω
Voltage Input
Measurement range 0...10 VDC
Min. measurement range (span) 8 VDC
Input resistance > 2 MΩ
Output Specifications
Current Output
Signal range 0...23 mA
Min. signal range 16 mA
Load (@ current output) ≤ 600 Ω
Load stability ≤ 0.01% of span / 100 Ω
Current limit ≤ 28 mA
Passive 2-wire mA Output
Effect of external 2-wire supply voltage variation: < 0.005% of span / V
Voltage Output
Signal range 0...1 VDC / 0...10 VDC
Min. signal range 0.8 VDC / 8 VDC
Load (@ voltage output) ≥ 500 kΩ
External loop supply 29 VDC
Compliance & Approvals
Observed Authority Requirements
EMC 2014/30/EU
LVD 2014/35/EU
Approvals
c UL us, UL 508 05122003-E233311
c UL us, UL 913 05122003-E233311
DNV Marine TAA0000101
